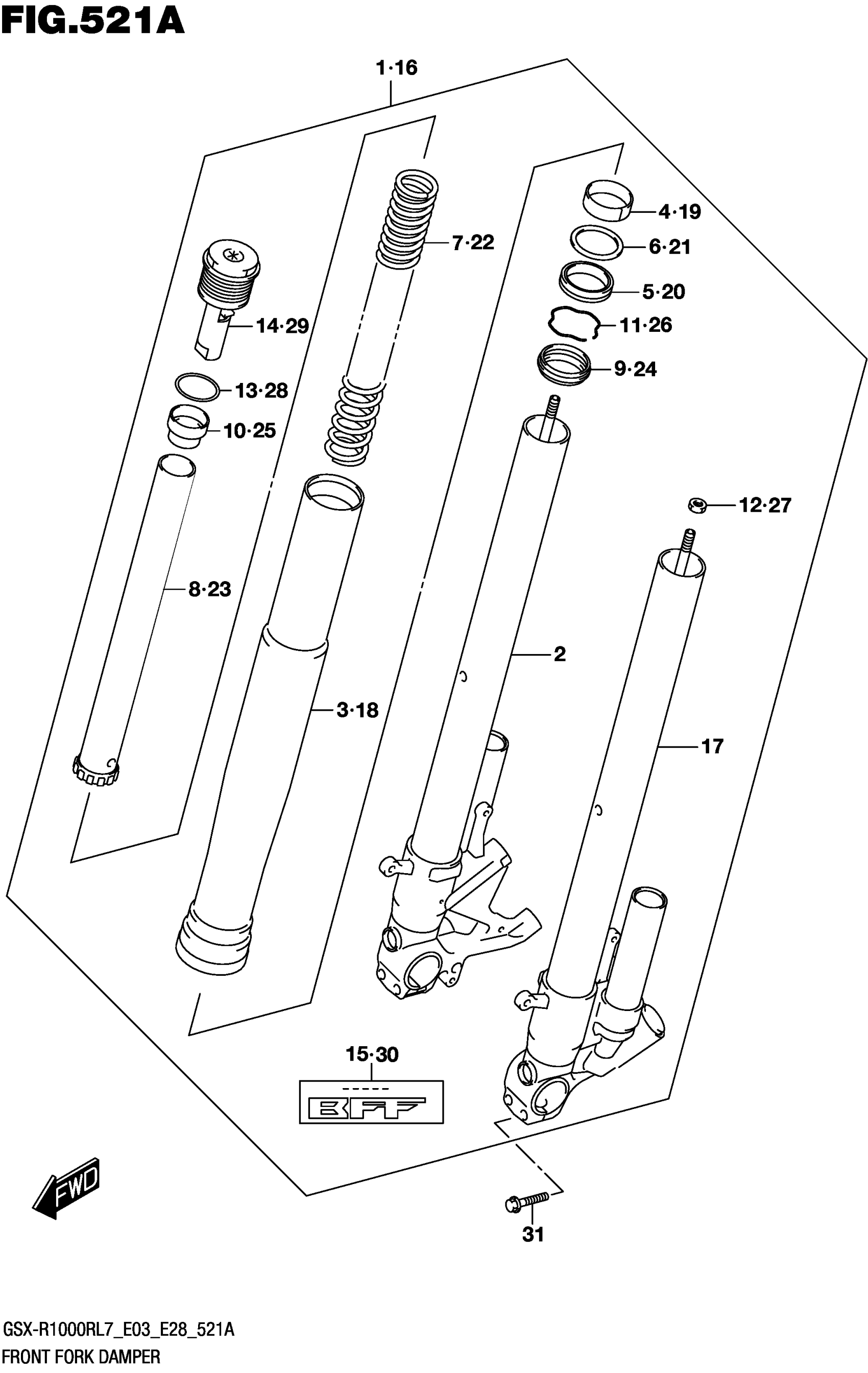

Suzuki GSX-R1000R L7 (2017) FRONT FORK DAMPER (GSX-R1000RL7 E03) Diagram

#

Description
Price

1

DAMPER ASSY,FRO This part replaces 51103-17K10.

51103-17K11

$3,184.06

2

.TUBE, INNER RH

51110-17K10

$3,833.53

3

.TUBE,OUTER

51131-17K10

$682.77

4

.BUSH, GUIDE

51152-47H00

$13.01

5

.OIL SEAL

51153-27G00

$21.12

6

.SPACER, SEAL

51168-29G00

$8.65

7

.SPRING

51171-17K10

$145.17

8

.SPRING COLLAR

51198-17K10

$138.20

9

.SEAL, DUST

51173-27G00

$24.34

10

.SPRING COLLAR

51175-17K10

$71.43

11

.RING, STOPPER

51556-38B00

$6.61

12

.NUT

51827-29G00

Unavailable

13

..O-RING

51187-47H00

$6.52

14

.BOLT

51189-17K10

$320.50

15

.LABEL

68281-17K10

$8.48

16

DAMPER ASSY,FRO This part replaces 51104-17K10.

51104-17K11

$2,862.33

17

.TUBE, INNER LH

51120-17K10

$3,833.53

18

.TUBE,OUTER

51131-17K10

$682.77

19

.BUSH, GUIDE

51152-47H00

$13.01

20

.OIL SEAL

51153-27G00

$21.12

21

.SPACER, SEAL

51168-29G00

$8.65

22

.SPRING

51171-17K10

$145.17

23

.SPRING COLLAR

51198-17K10

$138.20

24

.SEAL, DUST

51173-27G00

$24.34

25

.SPRING COLLAR

51175-17K10

$71.43

26

.RING, STOPPER

51556-38B00

$6.61

27

.NUT

51827-29G00

Unavailable

28

..O-RING

51187-47H00

$6.52

29

.BOLT

51189-17K10

$320.50

30

.LABEL

68281-17K10

$8.48

31

BOLT

51321-36F00

$5.44
