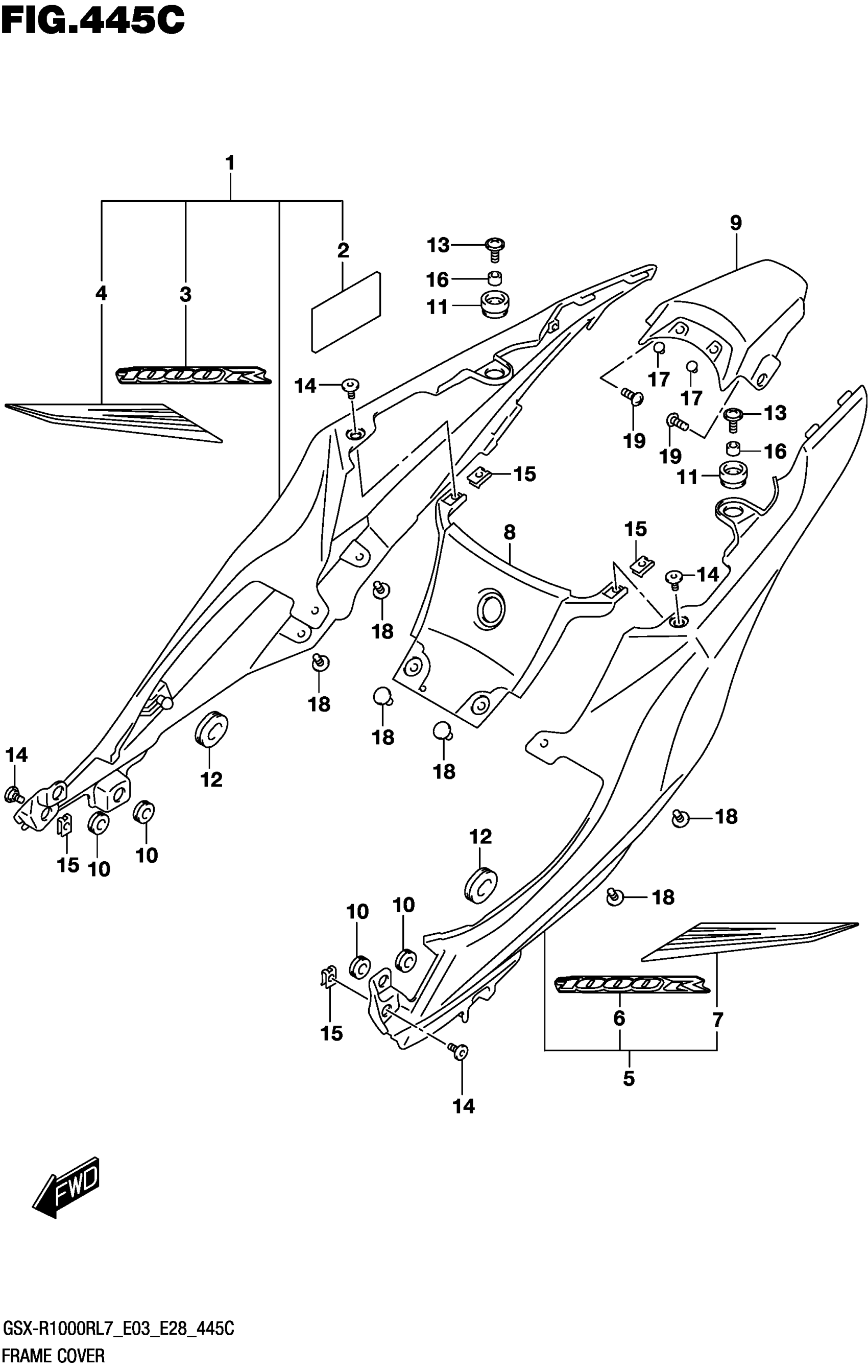

Suzuki GSX-R1000R L7 (2017) FRAME COVER (GSX-R1000RL7 E33) Diagram

#

Description
Price

1

COVER, FRAME RH (BLUE)

47110-17K30-YSF

$151.42

2

.CUSHION

33652-17K10

$3.88

3

.EMBLEM,FRAME COVER (BLUE,WHI

68131-17K00-BJ8

$14.96

4

.TAPE, FRAME COVER RH

68135-17K10-BDH

$32.33

5

COVER, FRAME LH (BLUE)

47210-17K30-YSF

$148.62

6

.EMBLEM,FRAME COVER (BLUE,WHI

68131-17K00-BJ8

$14.96

7

.TAPE, FRAME COVER LH

68145-17K10-BDH

$32.33

8

COVER,FRAME CENTER FRONT

47311-17K00

$30.67

9

COVER, FRAME CENTER REAR

47411-17K00-YSF

$57.59

9

(BLUE)

47411-17K00-YSF

$57.59

10

CUSHION

44173-14J00

$4.16

11

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.91

12

CUSHION, FRAME COVER

94478-14J00

$5.92

13

SCREW (6X16)

09139-06139

$3.23

14

SCREW (5X13)

09139-05092

$2.25

15

NUT

09148-05052

$3.37

16

SPACER (6.5X10X7)

09180-06283

$1.91

17

PLUG (OD:10) This part replaces 09250-06012.

09250-06017

$2.71

18

CLIP

09409-06328

$3.23

19

SCREW

03541-0516A

$1.49
