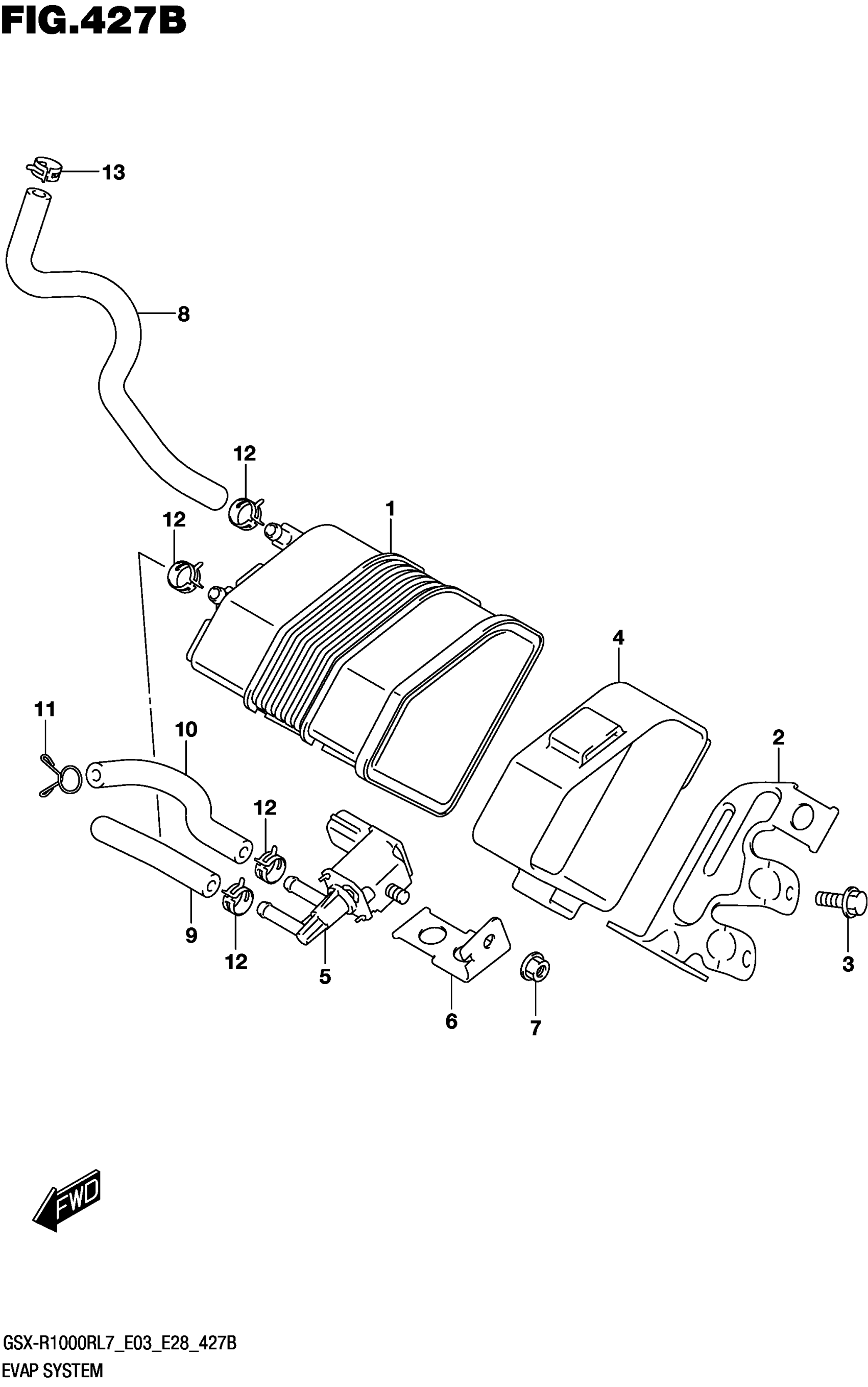

Suzuki GSX-R1000R L7 (2017) EVAP SYSTEM (GSX-R1000RZL7 E33) Diagram

#

Description
Price

1

CANISTER ASSY,CHARCOAL This part replaces 18560-04K00.

18560-04K01

$107.13

2

BRACKET,CANISTER

18571-17K00

$11.78

3

BOLT

01550-0616A

$1.97

4

CUSHION,CANISTER

18572-17K00

$14.85

5

VALVE,CANISTER PURGE

18117-52G10

$151.17

6

BRACKET,PURGE VALVE

18573-17K00

$4.72

7

NUT

08316-1006A

$2.19

8

HOSE,SURGE

18561-17K00

$20.52

9

HOSE,PURGE NO.1

18562-17K00

$14.97

10

HOSE,PURGE NO.2

18563-17K00

$16.50

11

CLIP This part replaces 09401-10201.

09401-10201-XC0

$2.19

12

CLIP (ID:10.5,H:8)

09401-10409

$2.26

13

CLIP

09401-11413

$2.26
