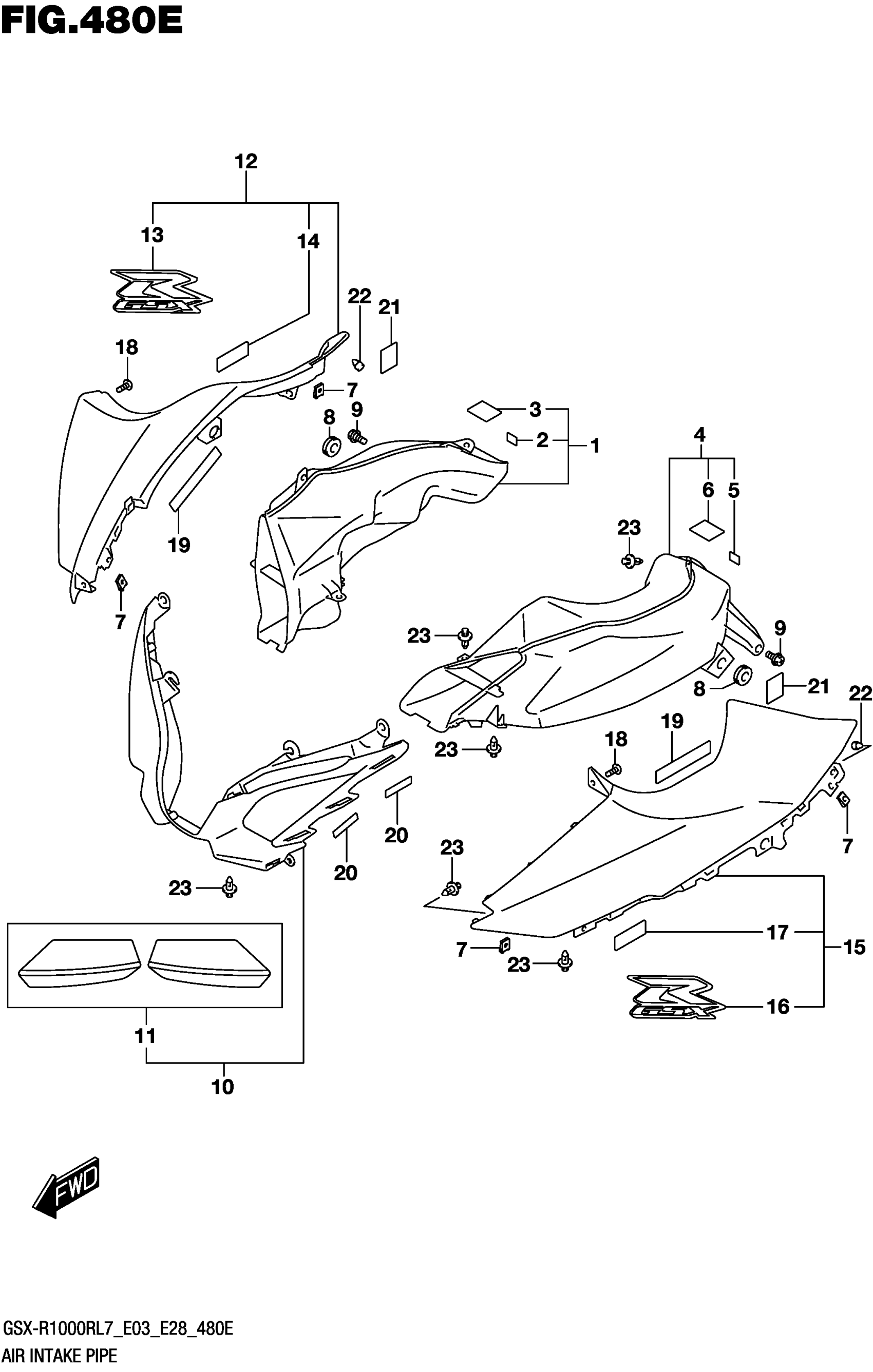

Suzuki GSX-R1000R L7 (2017) AIR INTAKE PIPE (GSX-R1000RZL7 E28) Diagram

#

Description
Price

1

PIPE,AIR INTAKE,R

94420-17K00

$61.28

2

CUSHION (10X10X1)

63115-37H00

$3.64

3

.CUSHION, INATAKE PIPE

36930-60A10

$2.92

4

PIPE,AIR INTAKE,L

94430-17K00

$72.08

5

CUSHION (10X10X1)

63115-37H00

$3.64

6

.CUSHION, INATAKE PIPE

36930-60A10

$2.92

7

NUT

09148-05052

$3.37

8

CUSHION

09320-08028

$3.04

9

BOLT (6X12)

09111-06106

$2.44

10

COVER, INTAKE (BLACK)

94600-17K00-YVB

$128.58

11

.TAPE SET, INTAKE COVER

68270-17K10-BKQ

$38.22

11

(BLACK/BLUE)

68270-17K10-BKQ

$38.22

12

COVER, INTAKE RH (BLACK)

94670-17K20-YVB

$190.08

13

.TAPE, INTAKE COVER RH

68275-17K20-BKN

$26.48

14

PAD (8X20X2)

73415-70A00

$1.56

15

COVER, INTAKE LH (BLACK)

94680-17K20-YVB

$190.08

16

.TAPE, INTAKE COVER LH

68276-17K20-BKN

$26.48

17

PAD (8X20X2)

73415-70A00

$1.56

18

SCREW (5X12)

09132-05050

$1.92

19

CUSHION, COVER INTAKE NO.1

36930-82010

$3.05

20

CUSHION, COVER INTAKE CTR | CUT AS REQUIRED

94476-38C00

Unavailable

21

CUSHION, COVER SIDE

94633-31J00

$2.44

22

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

23

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78
