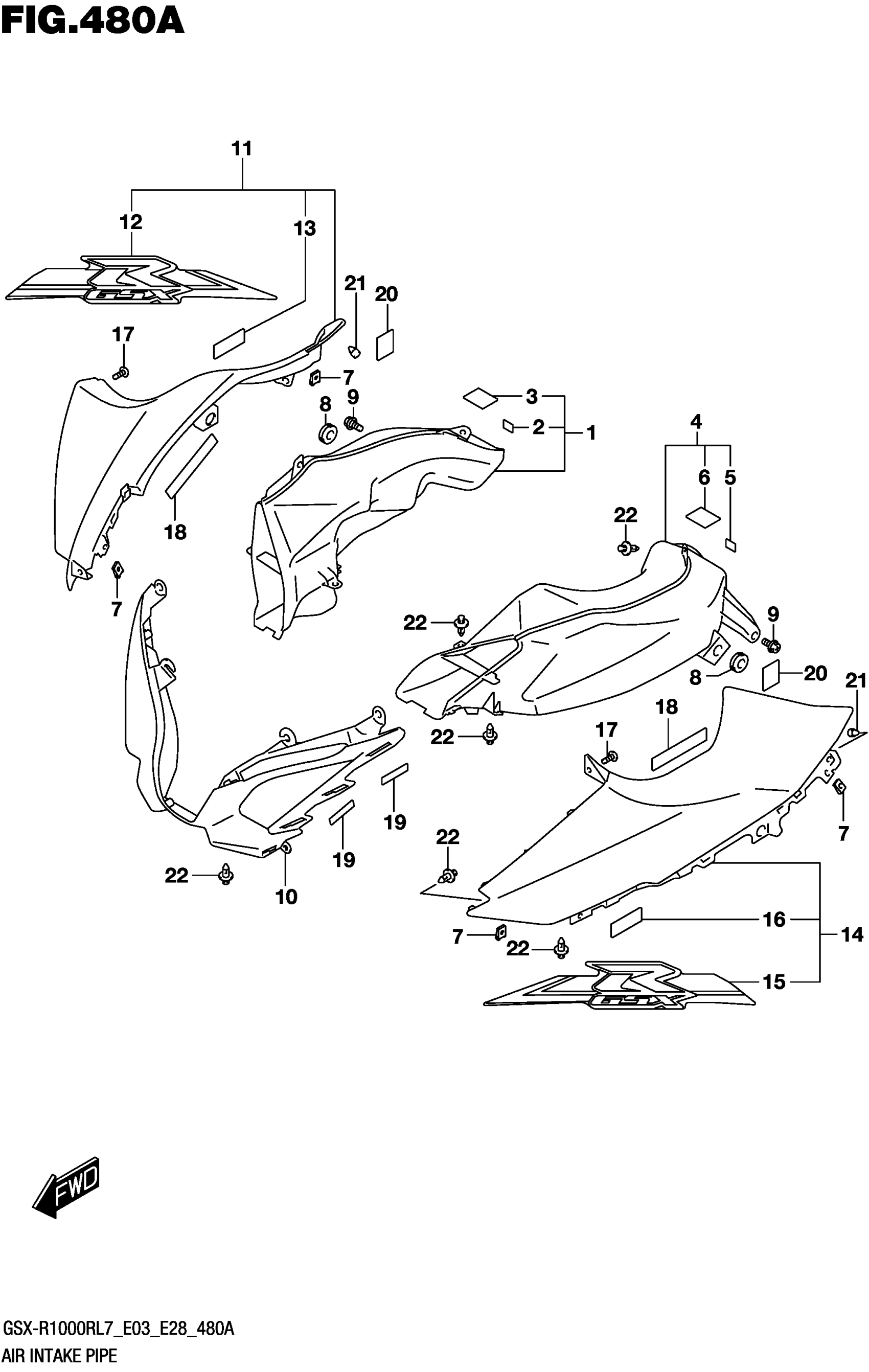

Suzuki GSX-R1000R L7 (2017) AIR INTAKE PIPE (GSX-R1000RL7 E03) Diagram

#

Description
Price

1

PIPE,AIR INTAKE,R

94420-17K00

$61.28

2

CUSHION (10X10X1)

63115-37H00

$3.64

3

.CUSHION, INATAKE PIPE

36930-60A10

$2.92

4

PIPE,AIR INTAKE,L

94430-17K00

$72.08

5

CUSHION (10X10X1)

63115-37H00

$3.64

6

.CUSHION, INATAKE PIPE

36930-60A10

$2.92

7

NUT

09148-05052

$3.37

8

CUSHION

09320-08028

$3.04

9

BOLT (6X12)

09111-06106

$2.44

10

COVER,INTAKE (BLUE)

94671-17K00-YSF

$88.63

11

COVER, INTAKE RH (BLUE)

94670-17K10-YSF

$183.10

12

.TAPE, INTAKE COVER RH

68275-17K10-BDJ

$26.48

13

PAD (8X20X2)

73415-70A00

$1.56

14

COVER, INTAKE LH (BLUE)

94680-17K10-YSF

$186.55

15

.TAPE, INTAKE COVER LH

68276-17K10-BDJ

$26.48

16

PAD (8X20X2)

73415-70A00

$1.56

17

SCREW (5X12)

09132-05050

$1.92

18

CUSHION, COVER INTAKE NO.1

36930-82010

$3.05

19

CUSHION, COVER INTAKE CTR | CUT AS REQUIRED

94476-38C00

Unavailable

20

CUSHION, COVER SIDE

94633-31J00

$2.44

21

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

22

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78
