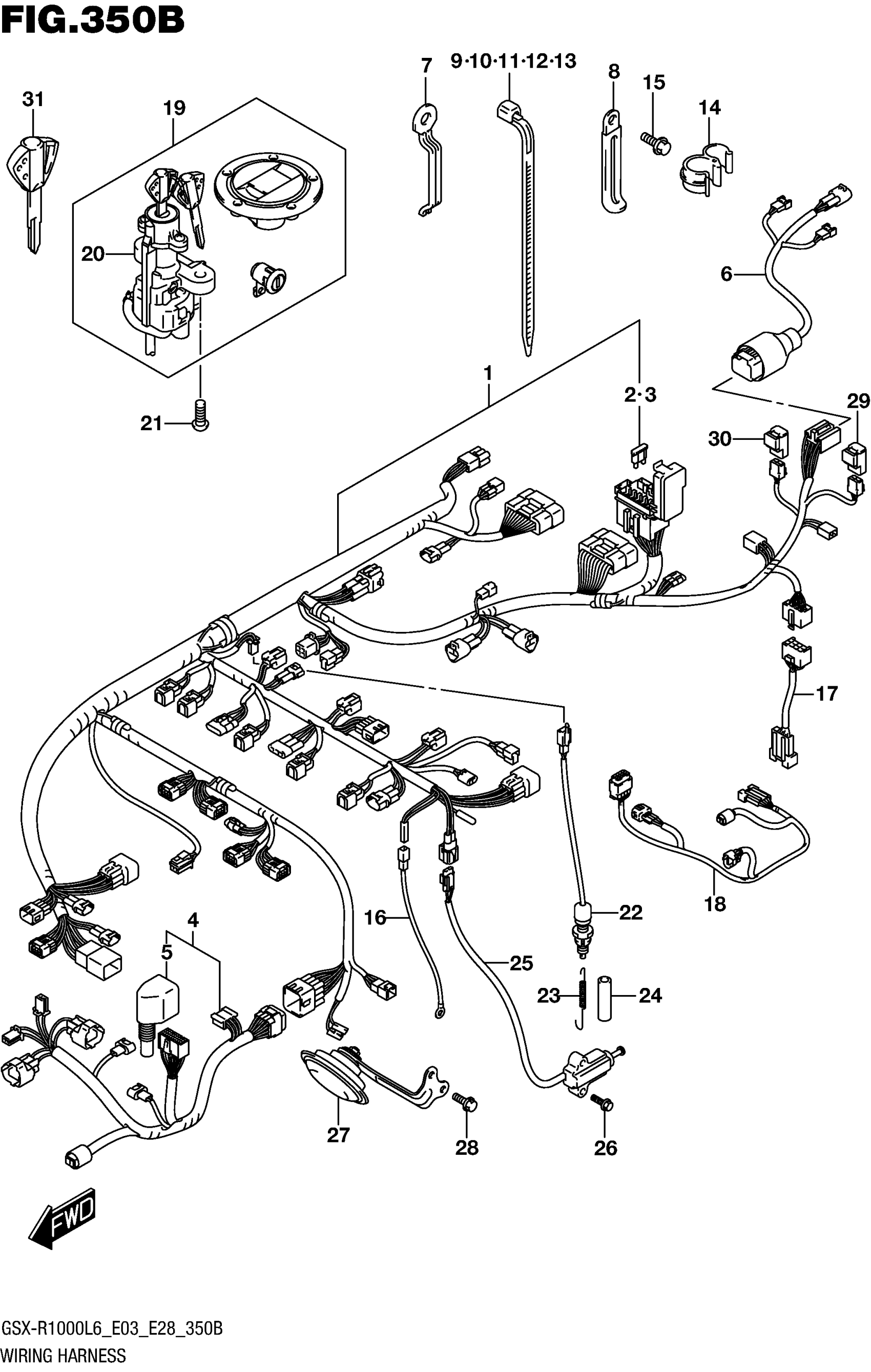

Suzuki GSX-R1000L6 (2016) WIRING HARNESS (GSX-R1000L6 E28) Diagram

#

Description
Price

1

HARNESS,WIRING This part replaces 36610-47HB0.

36610-47HB1

$1,078.28

2

.FUSE (10A)

09481-10501

$2.14

3

.FUSE (15A)

09481-15501

$2.14

4

HARNESS,WIRING This part replaces 36620-47H10.

36620-47H21

$260.28

5

.COVER, CONNECTOR

36618-47H00

$25.10

6

WIRE,RR COMB This part replaces 36855-47H00.

36855-47H01

$48.00

7

CLAMP

09403-06322

$5.65

8

CLAMP (L:45)

09404-06429

$1.88

9

CLAMP (L:125)

09407-14403

$2.31

10

CLAMP (L:95)

09407-11401

$2.87

11

CLAMP (L:165)

09407-18402

$2.29

12

CLAMP (L:190)

09407-19401

$3.32

13

CLAMP (L:190)

09407-19401

$3.32

14

CLAMP

09408-00242

Unavailable

15

BOLT

01547-0612A

$2.09

16

WIRE, OIL PRESSURE SWITCH

36851-47H01

Unavailable

17

WIRE, RELAY LEAD

36857-47H00

$87.67

18

WIRE, ISC LEAD

36859-47H10

Unavailable

19

LOCK SET This part replaces 37101-40821.

37101-40824

$257.34

20

.LOCK ASSY,STEERING This part replaces 37100-41G11.

37100-41G12

$217.10

21

BOLT (8X20)

09139-08016

$3.13

22

SWITCH ASSY, STOP LAMP

37740-31D00

$27.77

23

SPRING

09443-06087

$4.45

24

HOSE,5X10X600 | L:600->60 This part replaces 09352-50823-600.

44421-13ER0

$9.48

25

SWITCH ASSY,SID This part replaces 37840-47H00.

37840-47H01

$106.13

26

BOLT (6X20)

09103-06286

$2.19

27

HORN ASSY

38500-47H00

Unavailable

28

BOLT

01550-0616B

$2.53

29

RELAY ASSY, FUEL PUMP

38740-24X50

$43.23

30

RELAY ASSY, FAN MOTOR

38740-24X50

$43.23

31

KEY,BLANK (IMMOBI) | OPT

37146-41G00

$41.17
