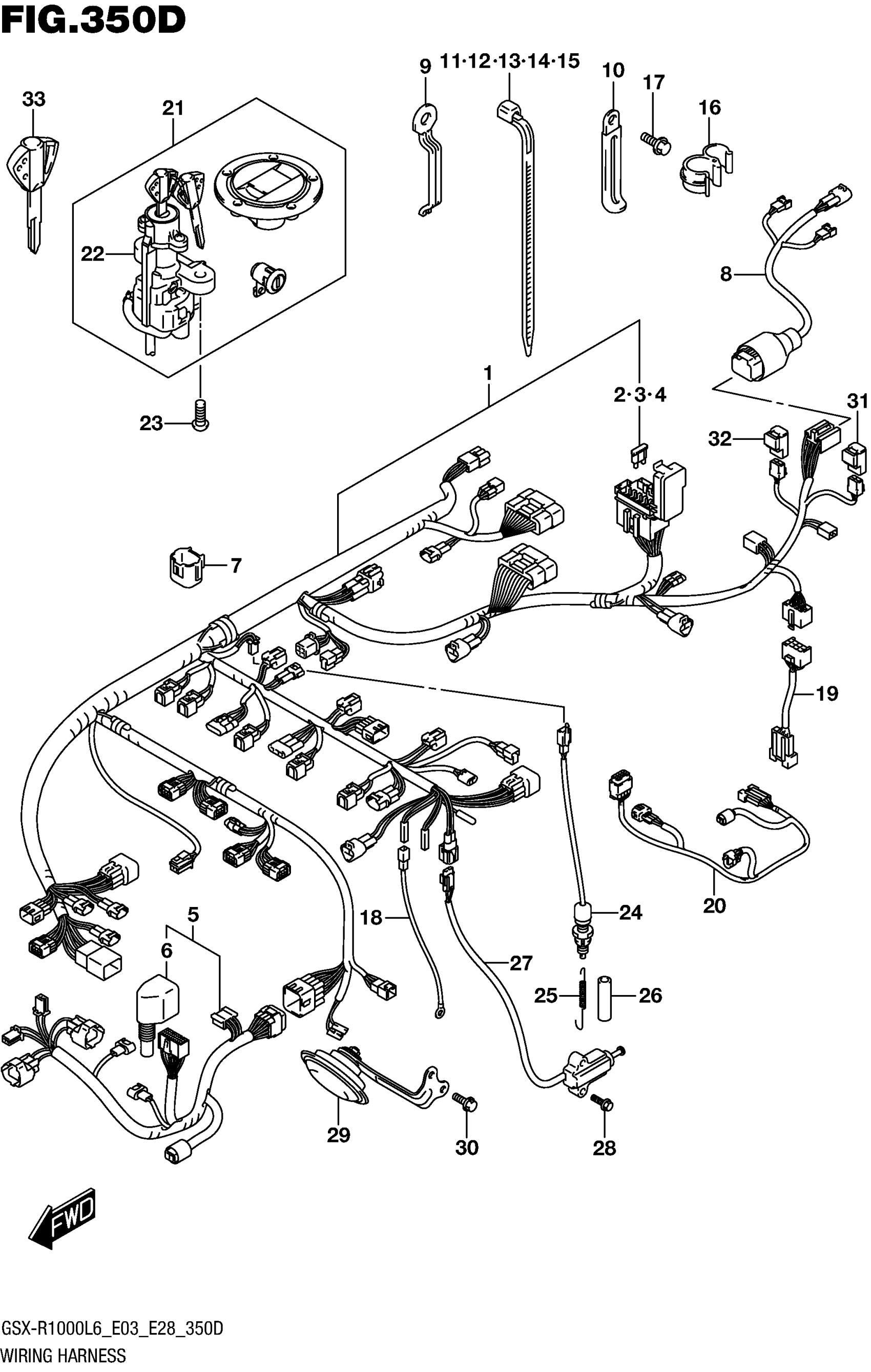

Suzuki GSX-R1000L6 (2016) WIRING HARNESS (GSX-R1000AL6 E28) Diagram

#

Description
Price

1

HARNESS, WIRING NO.1

36610-47HE0

Unavailable

2

.FUSE (10A)

09481-10501

$2.06

3

.FUSE (15A)

09481-15501

$2.02

4

.FUSE (30A)

09481-30501

$2.32

5

HARNESS,WIRING This part replaces 36620-47H20.

36620-47H21

$233.90

6

.COVER, CONNECTOR

36618-47H00

$22.23

7

CAP, TS

36654-06J20

Unavailable

8

WIRE,RR COMB This part replaces 36855-47H00.

36855-47H01

$42.53

9

CLAMP

09403-06322

$5.20

10

CLAMP (L:45)

09404-06429

$1.83

11

CLAMP (L:125)

09407-14403

$2.26

12

CLAMP (L:95)

09407-11401

$2.63

13

CLAMP (L:165)

09407-18402

$2.19

14

CLAMP (L:190)

09407-19401

$3.05

15

CLAMP (L:190)

09407-19401

$3.05

16

CLAMP

09408-00242

Unavailable

17

BOLT

01547-0612A

$2.03

18

WIRE, OIL PRESSURE SWITCH

36851-47H01

Unavailable

19

WIRE, RELAY LEAD

36857-47H00

$77.67

20

WIRE, ISC LEAD

36859-47H10

Unavailable

21

LOCK SET

37103-41840

Unavailable

22

.LOCK ASSY, STEERING

37100-41G90

Unavailable

23

BOLT (8X20)

09139-08016

$3.37

24

SWITCH ASSY, STOP LAMP

37740-31D00

$28.23

25

SPRING

09443-06087

$4.10

26

HOSE,5X10X600 | L:600->60 This part replaces 09352-50823-600.

44421-13ER0

$10.06

27

SWITCH ASSY,SID This part replaces 37840-47H00.

37840-47H01

$94.03

28

BOLT (6X20)

09103-06286

$2.20

29

HORN ASSY

38500-47H00

Unavailable

30

BOLT

01550-0616B

$2.48

31

RELAY ASSY, FUEL PUMP

38740-24X50

$45.20

32

RELAY ASSY, FAN MOTOR

38740-24X50

$45.20

33

KEY,BLANK (IMMOBI) | OPT

37146-41G00

$43.04
