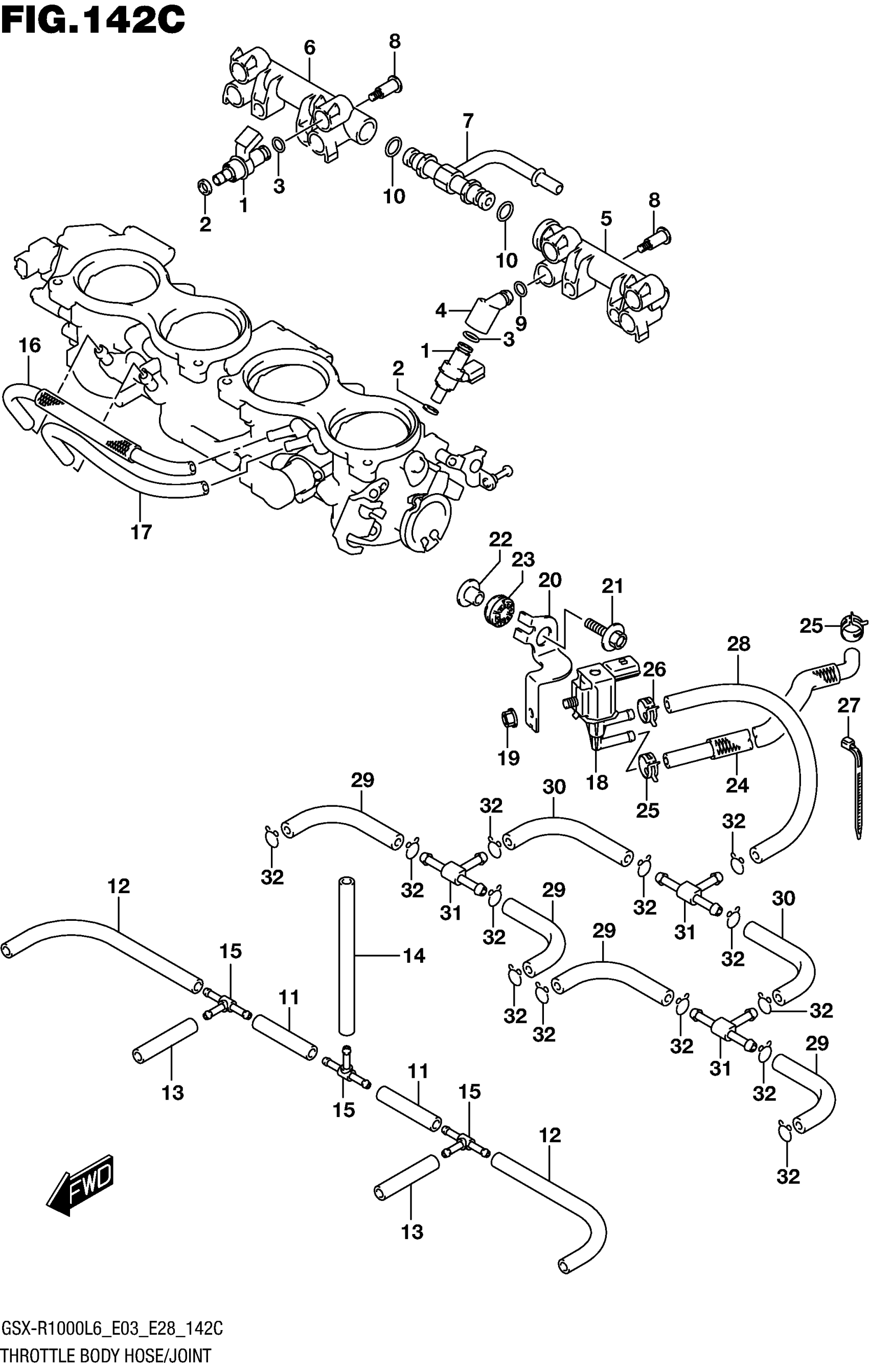

Suzuki GSX-R1000L6 (2016) THROTTLE BODY HOSE/JOINT (GSX-R1000L6 E33) Diagram

#

Description
Price

1

INJECTOR ASSY

15710-21H10

$229.60

2

.RING,SEAL

15722-21H00

$11.25

3

.O-RING

15721-21H00

$9.09

4

PIPE, FUEL

13473-21H00

$18.08

5

PIPE, FUEL

13474-47H00

Unavailable

6

PIPE, FUEL

13474-47H10

Unavailable

7

JOINT

13473-15H10

Unavailable

8

SCREW

13601-35F00

$7.50

9

.O-RING

15721-24F00

$9.09

10

O-RING

15721-10G00

$9.09

11

HOSE

13684-47H20

$8.52

12

HOSE

13685-47H20

$9.42

13

HOSE

13686-47H20

$8.30

14

HOSE

13687-47H20

$9.42

15

T JOINT

13471-24F30

$16.48

16

TUBE This part replaces 13680-21H10.

13680-21H11

$17.53

17

TUBE This part replaces 13698-21H00.

13698-21H01

$9.18

18

VALVE,CANISTER PURGE

18117-52G10

$151.17

19

NUT

08316-1006A

$2.19

20

BRACKET

13165-47H00

Unavailable

21

BOLT (6X30)

09116-06171

$3.08

22

SPACER (6.5X10X11.6)

09180-06319

$3.85

23

CUSHION

09320-10055

$4.50

24

HOSE

13680-47H00

Unavailable

25

CLIP

09401-11413

$2.26

26

CLIP

09401-10411

$2.80

27

CLAMP (L:125)

09407-14403

$2.26

28

HOSE

13683-47H20

Unavailable

29

HOSE

13683-21H10

Unavailable

30

HOSE

13683-21H20

Unavailable

31

JOIN

13685-36E50

Unavailable

32

CLIP

13693-24F00

$3.22
