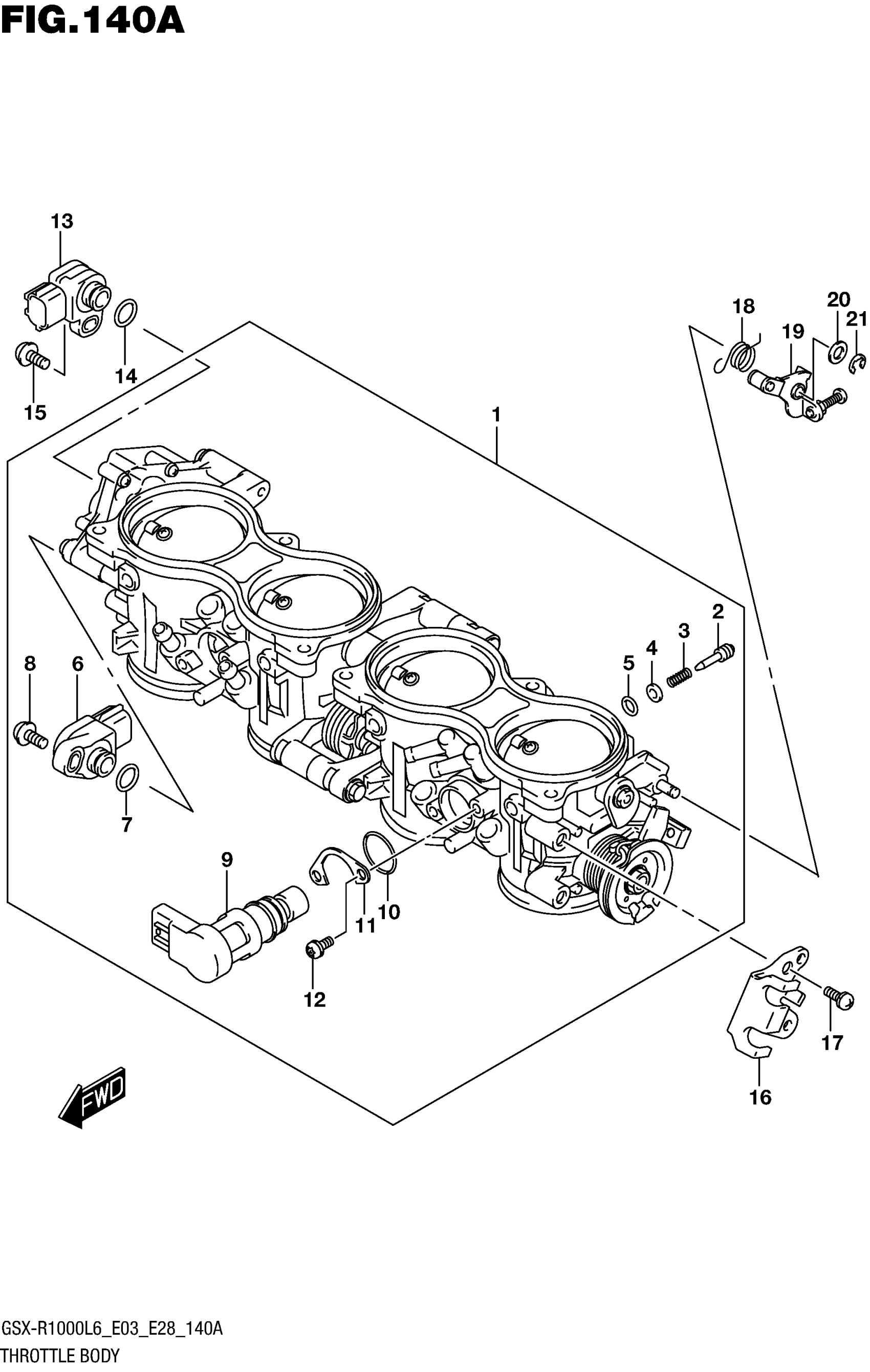

Suzuki GSX-R1000L6 (2016) THROTTLE BODY (GSX-R1000L6 E03) Diagram

#

Description
Price

1

THROTTLE BODY

13406-47H40

Unavailable

2

.SCREW, AIR ADJUST

13269-18G00

$11.83

3

.SPRING

13271-43E00

Unavailable

4

.WASHER

13291-26E00

$2.93

5

.O RING

13295-26E00

$4.34

6

.SENSOR ASSY, MAIN

13580-18G00

$205.80

7

.O RING

13575-40F00

$4.09

8

.SCREW

13605-40F00

$3.71

9

.VALVE, ISC

18117-15H12

$362.80

10

.O RING

18119-05H00

$3.95

11

.PLATE

13428-15H00

Unavailable

12

.SCREW

13605-15H00

$7.12

13

SENSOR ASSY, SUB

13580-47H00

$259.07

14

O RING

13575-40F00

$4.09

15

SCREW

13605-40F00

$3.71

16

PLATE, STAY

13565-21H00

$48.38

17

SCREW

13601-21H00

Unavailable

18

SPRING

13426-21H00

Unavailable

19

LEVER, LINK

13420-47H00

Unavailable

20

WASHER

13427-35F10

Unavailable

21

E CLIP

13424-35F10

$3.78
