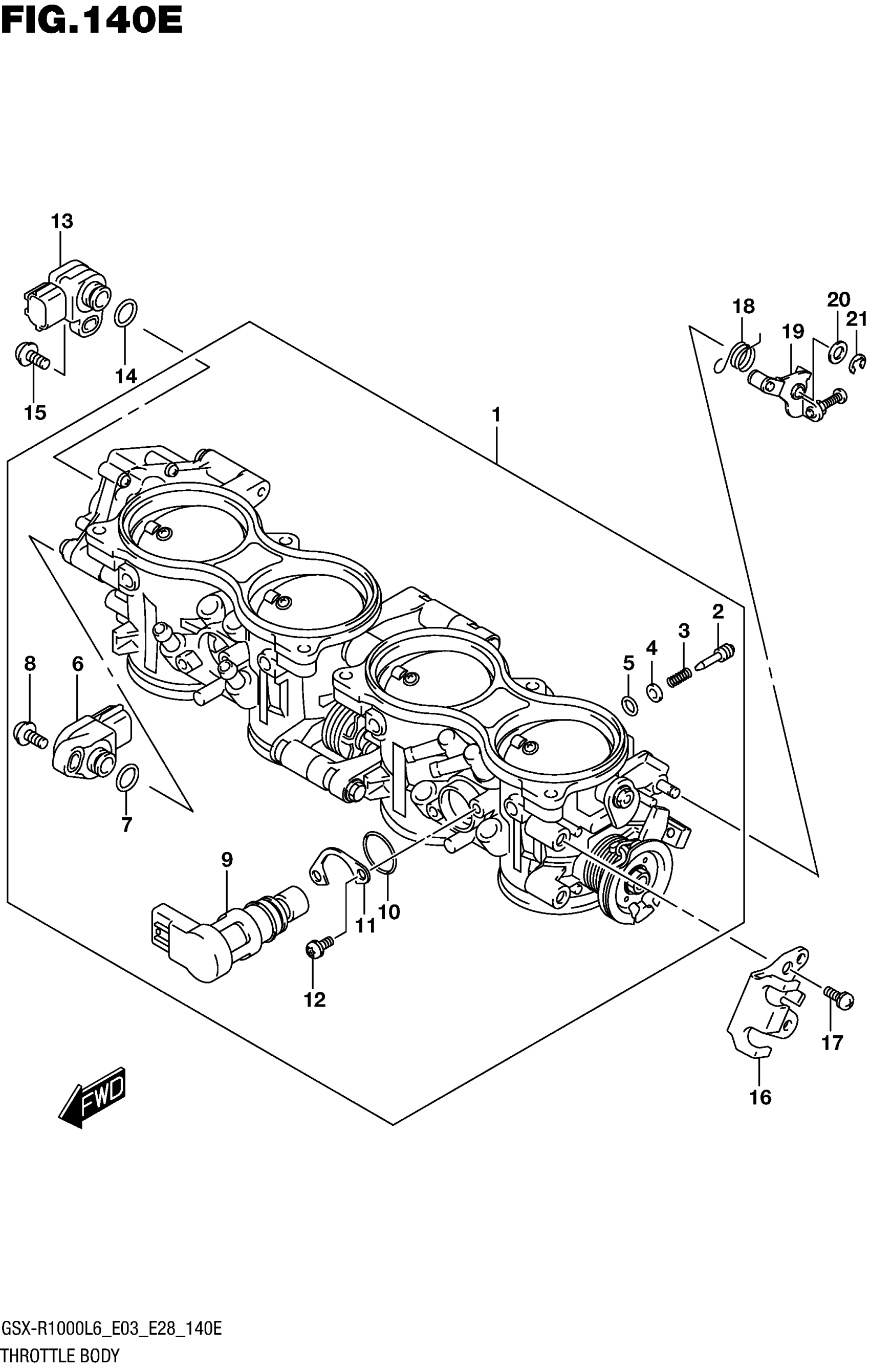

Suzuki GSX-R1000L6 (2016) THROTTLE BODY (GSX-R1000AL6 E33) Diagram

#

Description
Price

1

THROTTLE BODY

13406-47H50

$2,161.42

2

.SCREW, AIR ADJUST

13269-18G00

$13.35

3

.SPRING

13271-43E00

Unavailable

4

.WASHER

13291-26E00

$2.80

5

.O RING

13295-26E00

$4.15

6

.SENSOR ASSY, MAIN

13580-18G00

$199.65

7

.O RING

13575-40F00

$4.02

8

.SCREW

13605-40F00

$3.66

9

.VALVE, ISC

18117-15H12

$403.72

10

.O RING

18119-05H00

$4.47

11

.PLATE

13428-15H00

Unavailable

12

.SCREW

13605-15H00

$8.03

13

SENSOR ASSY, SUB

13580-47H00

$288.30

14

O RING

13575-40F00

$4.02

15

SCREW

13605-40F00

$3.66

16

PLATE, STAY

13565-21H00

Unavailable

17

SCREW

13601-21H00

Unavailable

18

SPRING

13426-21H00

Unavailable

19

LEVER, LINK

13420-47H00

Unavailable

20

WASHER

13427-35F10

Unavailable

21

E CLIP

13424-35F10

Unavailable
