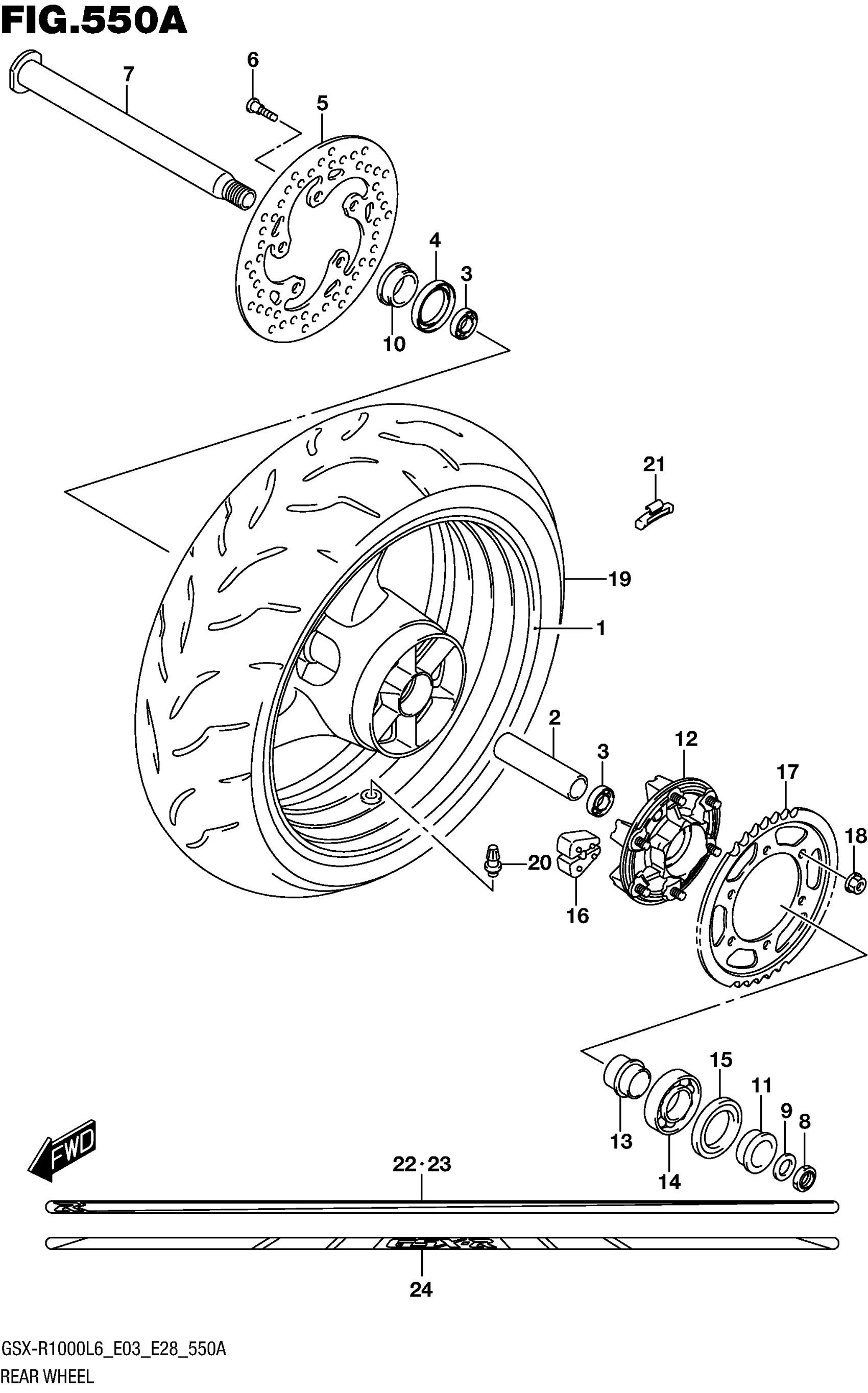

Suzuki GSX-R1000L6 (2016) REAR WHEEL (GSX-R1000L6 E03) Diagram

WHEEL, REAR (17M/CXMT6.00)

64111-47H00-019

Unavailable

(BLACK)

64111-47H00-019

Unavailable

SPACER,RR HUB BEARING

64731-35F10

$50.59

BEARING (28X52X12) This part replaces 09262-28052.

09262-28062

$24.53

SEAL,OIL (37X52X8) | RH This part replaces 09284-37001.

09284-37002

$7.40

DISC,RR BRAKE

69211-18G00

$355.08

BOLT (8X21)

09106-08160

$3.32

AXLE,RR

64711-49G00

$189.55

NUT

09159-25003

$29.61

WASHER (25.2X42X3.2)

09160-25070

$4.44

SPACER,REAR AXLE,R This part replaces 64741-35F00.

64741-35F10

$12.90

SPACER,REAR AXLE,L This part replaces 64751-47H00.

64751-47H10

$21.15

DRUM,RR SPROCKET

64610-47H00

$349.18

RETAINER, SPROCKET DRUM

64733-35F00

$25.45

BEARING (32X65X17) This part replaces 09262-32022.

09262-32024

$36.61

OIL SEAL (39X65X7)

09285-39001

$9.86

ABSORBER, HUB SHOCK

64651-47H10

$28.80

SPROCKET, REAR

64511-47H10

$169.70

NUT

08319-3110A

$2.80

TIRE, REAR, 190/50ZR17 M/C

65110-47H10

Unavailable

(73W) S20R BRIDGESTONE

65110-47H10

Unavailable

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.46

BALANCER (10G) | 10G

55411-22H00

$9.70

BALANCER (20G) | 20G

55412-22H00

$11.37

BALANCER (30G) | 30G

55413-22H00

$12.93

TAPE, RH | FOR YSF

68251-47H00-A29

$79.15

TAPE, LH | FOR YSF

68252-47H00-A29

$79.15

TAPE, WHEEL | FOR AJP,JSP

68251-47H10-BAJ

$70.23
