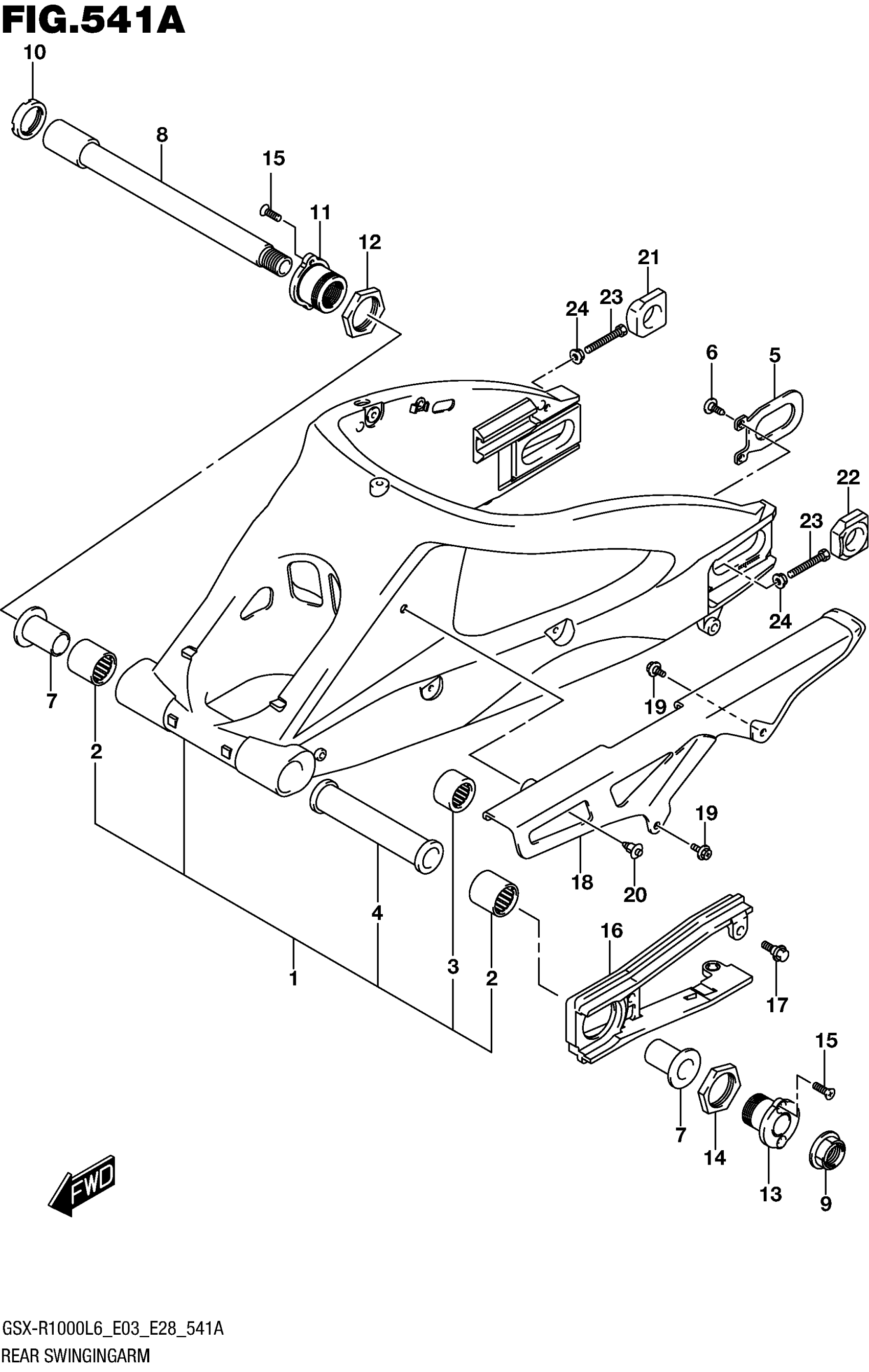

Suzuki GSX-R1000L6 (2016) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM ASS This part replaces 61000-47H10-YAP.

61000-47H11-YAP

$2,279.03

1

SWINGINGARM ASS This part replaces 61000-47H10-YAP.

61000-47H11-YAP

$2,279.03

2

.BEARING (27X35X35) This part replaces 09263-27013.

09263-27015

$27.55

3

.BEARING (20X27X30)

09263-20070

$37.72

4

.SPACER, CENTER

61281-41G00

$55.68

5

PLATE,RR SWGARM BRKT

61124-41G00

$8.73

6

SCREW (6X12)

09125-06060

$1.78

7

SPACER, BEARING

61251-41G00

$38.37

8

SHAFT, PIVOT

61211-41G00

$171.00

9

NUT

09159-20006

$27.12

10

NUT, PIVOT

61214-42E10

$42.53

11

BOSS, RR SWGARM PIVOT RH

61212-47H00

Unavailable

12

NUT, RR SWGARM PIVOT BOSS RH

61213-41G00

$30.81

13

BOSS, RR SWGARM PIVOT LH

61214-47H00

Unavailable

14

NUT, RR SWGARM PIVOT BOSS LH

61215-41G00

$33.00

15

SCREW

02122-0512B

$2.44

16

BUFFER, CHAIN TOUCH DEFENSE This part replaces 61273-47H00.

61273-47H01

$23.75

17

BOLT (6X17.8)

09111-06072

$2.03

18

CASE, CHAIN

61311-21H00

$63.58

19

BOLT (6X12)

09111-06107

$2.60

20

CLIP (BLACK)

09409-08308-5ES

$1.97

21

ADJUSTER, CHAIN RH

61445-40F00

$47.20

22

ADJUSTER, CHAIN LH

61446-40F00

$47.20

23

BOLT (8X50)

09100-08287

$3.10

24

NUT

08316-1008A

$2.45
