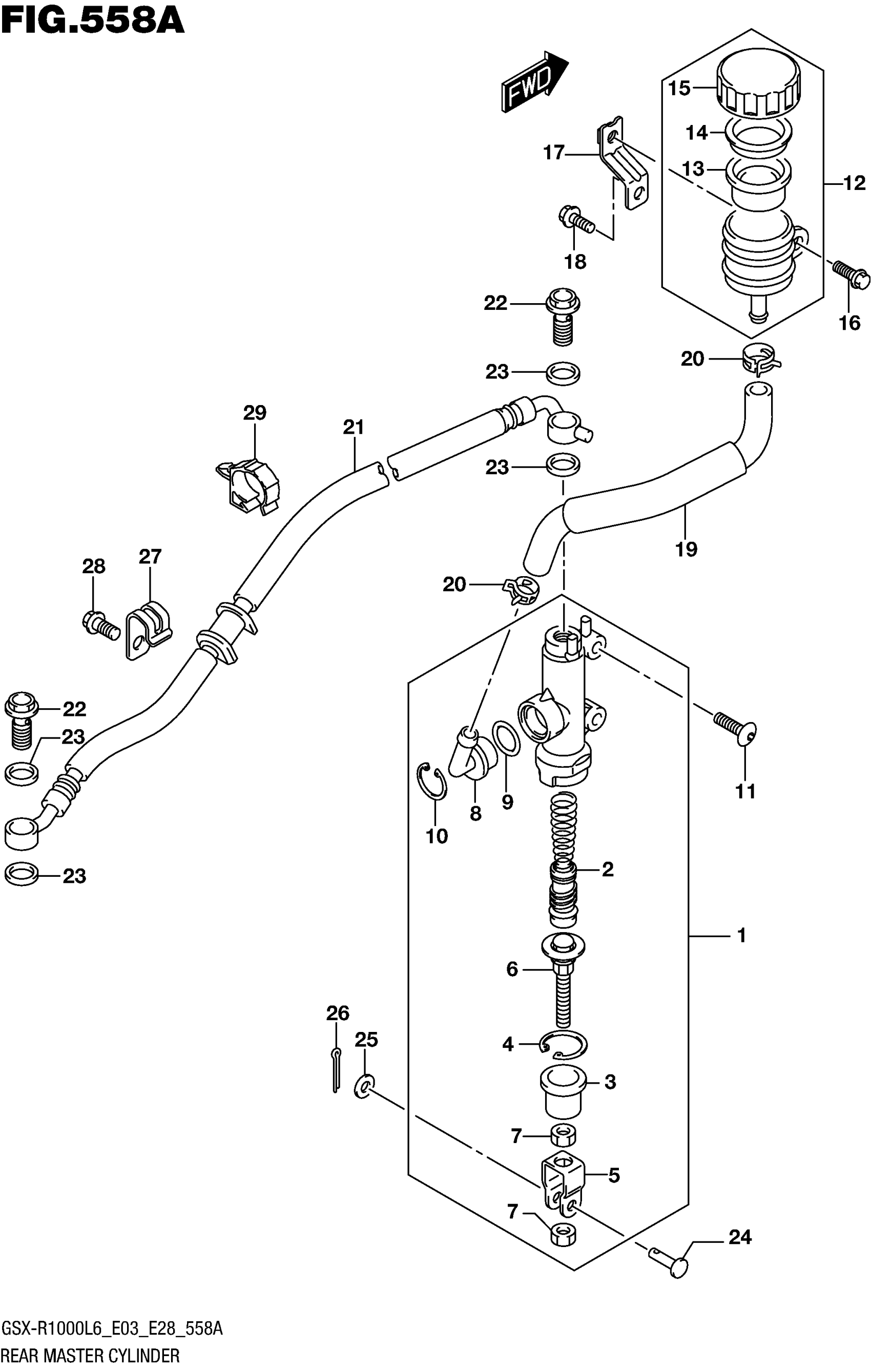

Suzuki GSX-R1000L6 (2016) REAR MASTER CYLINDER (GSX-R1000L6 E03) Diagram

#

Description
Price

1

CYLINDER ASSY,REAR MASTER This part replaces 69600-47H30.

69600-47H31

$247.57

2

.PISTON / CAP SET

69600-34810

$63.75

3

.BOOT

69691-00A00

$5.22

4

.CIRCLIP

69665-47H00

$5.65

5

.YOKE

69692-47H00

$15.75

6

.ROD, PUSH

69670-40A00

$28.90

7

.NUT

69693-47H00

$2.80

8

.CONNECTOR

69672-00B20

$6.72

9

.O RING

69686-34200

$2.80

10

.CIRCLIP

69674-00B20

$3.90

11

SCREW (6X20)

09139-06125

$2.80

12

TANK ASSY,RR RESERVOIR

69740-47H00

$90.32

13

.DIAPHRAGM

69667-00B20

$20.82

14

.PLATE

69668-00B20

$8.65

15

.CAP

69669-47H00

$9.70

16

BOLT

01547-0616A

$2.09

17

BRACKET, RR RESERVOIR TANK

69750-47H00

$14.73

18

BOLT

01547-0612A

$2.09

19

HOSE, RR RESERVOIR TANK

69730-47H10

Unavailable

20

CLIP

09401-12404

$2.44

21

HOSE,RR BRAKE This part replaces 69480-47H00.

69480-47H01

$110.15

22

UNION

09360-10065

$9.70

23

WASHER (10X15X1.5)

09161-10009

$1.89

24

PIN (6X18.2)

09200-06068

$3.82

25

WASHER

08322-0106A

$1.89

26

PIN, COTTER

04111-2015A

$1.25

27

CLAMP,RR BRAKE HOSE

69268-21H00

$8.73

28

BOLT

01547-0612A

$2.09

29

CLAMP

09403-17306

$2.73
