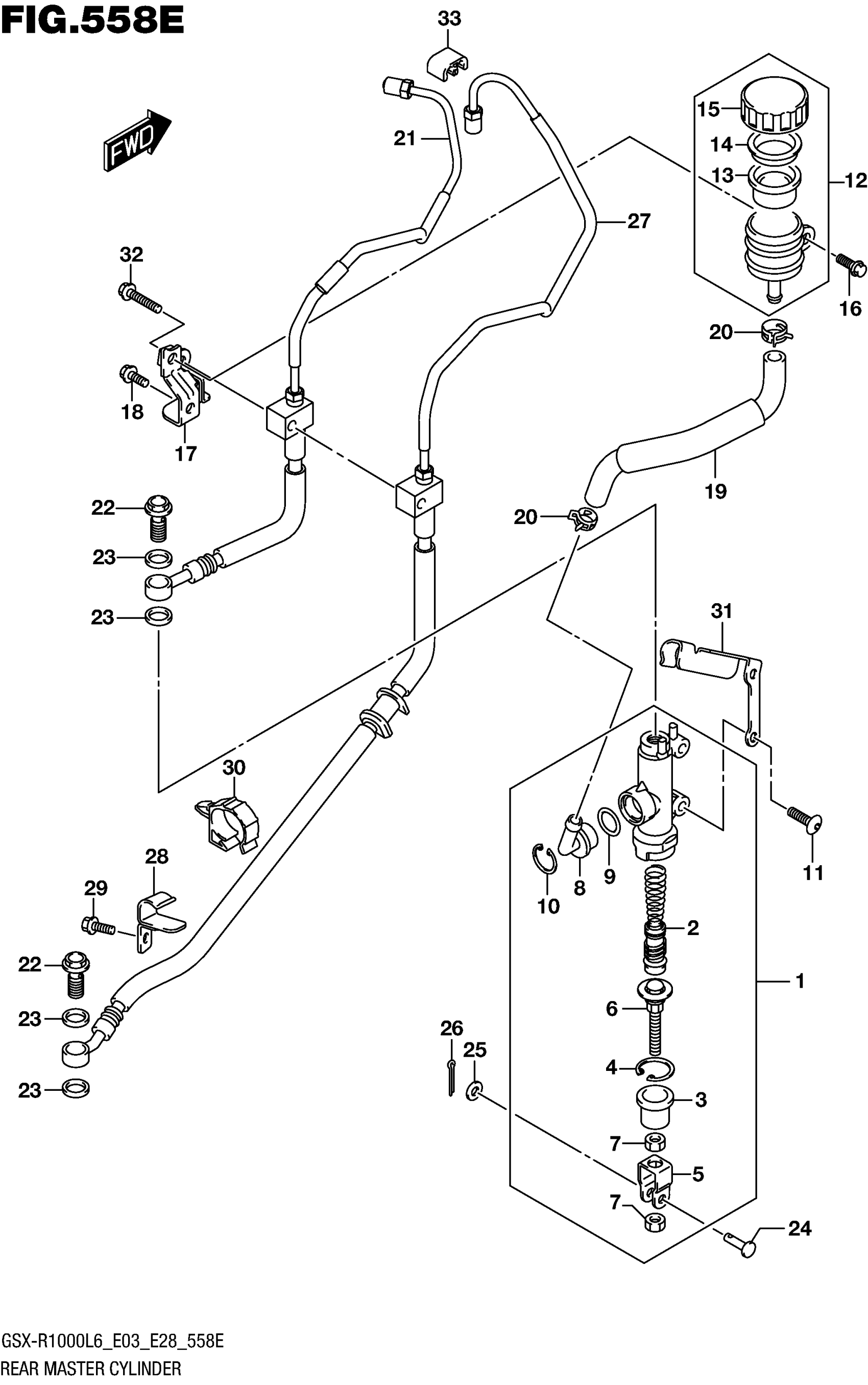

Suzuki GSX-R1000L6 (2016) REAR MASTER CYLINDER (GSX-R1000AL6 E33) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER

69600-47H20

$229.03

2

.PISTON / CAP SET

69600-34810

$56.48

3

.BOOT

69691-00A00

$5.30

4

.CIRCLIP

69665-47H00

$5.02

5

.YOKE

69692-47H00

$11.87

6

.ROD, PUSH

69670-40A00

$25.62

7

.NUT

69693-47H00

$2.48

8

.CONNECTOR

69672-00B20

$7.01

9

.O RING

69686-34200

$2.93

10

.CIRCLIP

69674-00B20

$3.97

11

SCREW (6X20)

09139-06125

$2.93

12

TANK ASSY,RR RESERVOIR

69740-47H00

$80.02

13

.DIAPHRAGM

69667-00B20

$15.68

14

.PLATE

69668-00B20

$7.67

15

.CAP

69669-47H00

$8.60

16

BOLT

01547-0616A

$2.03

17

CLAMP, REAR BRAKE HOSE

69260-47H00

Unavailable

18

BOLT

01547-0612A

$2.03

19

HOSE, RR RESERVOIR TANK

69730-47H10

Unavailable

20

CLIP

09401-12404

$2.34

21

HOSE ASSY, RR MASTER TO UNIT

69200-47H00

Unavailable

22

UNION

09360-10065

$8.92

23

WASHER (10X15X1.5)

09161-10009

$1.84

24

PIN (6X18.2)

09200-06068

$4.11

25

WASHER

08322-0106A

$1.84

26

PIN, COTTER

04111-2015A

$1.49

27

HOSE ASSY, RR UNIT TO CLPR

69400-47H00

Unavailable

28

CLAMP, RR BRAKE HOSE

69270-47H00

Unavailable

29

BOLT

01547-0612A

$2.03

30

CLAMP

09403-17306

$2.62

31

CLAMP, RR BRAKE HOSE

69271-47H00

Unavailable

32

BOLT

01547-0630A

$2.32

33

CLAMP

09403-06324

Unavailable
