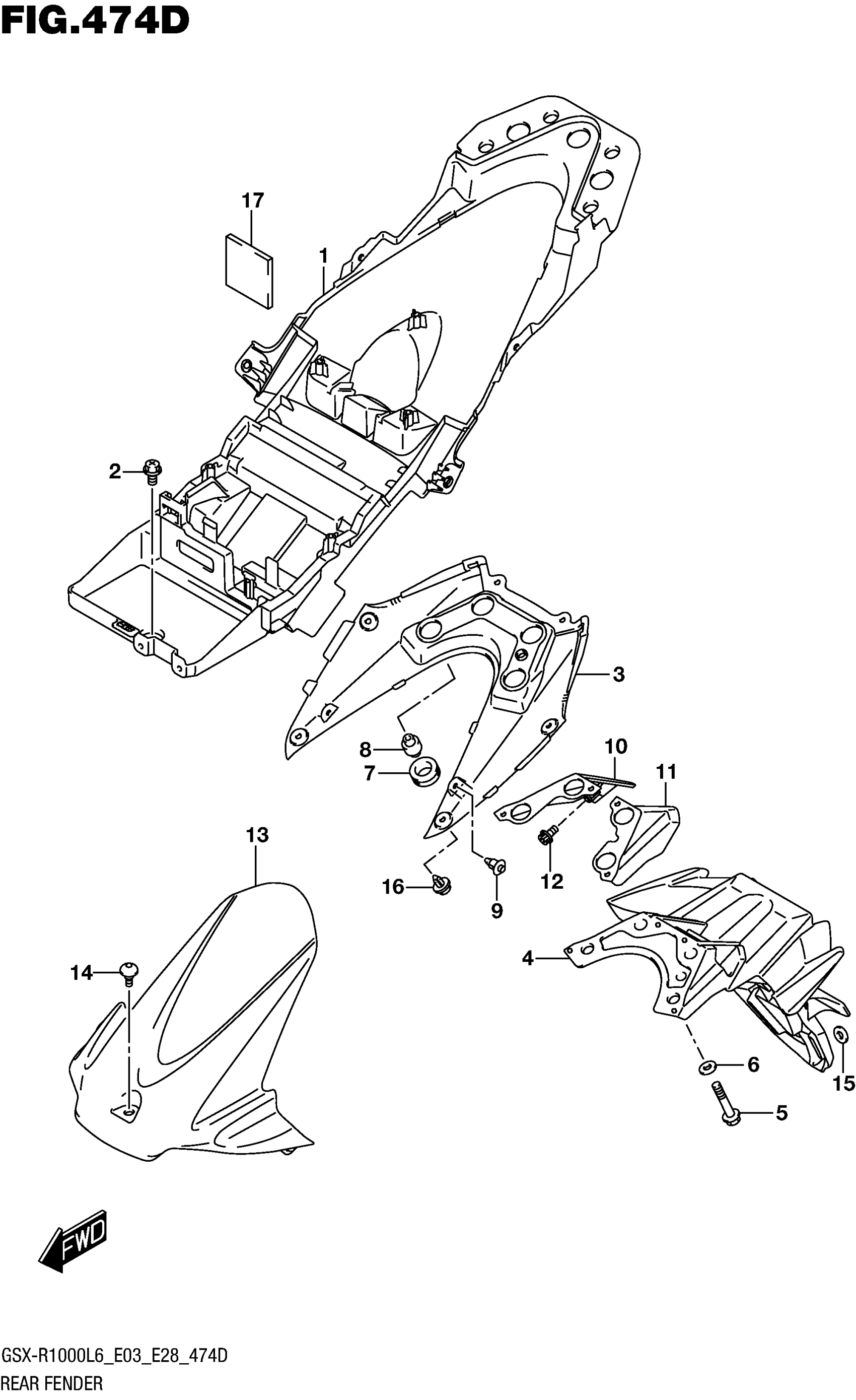

Suzuki GSX-R1000L6 (2016) REAR FENDER (GSX-R1000AL6 E28) Diagram

#

Description
Price

1

FENDER, REAR FRONT

63111-47H10

$173.22

2

BOLT (6X12)

09111-06106

$2.28

3-1

COVER, FENDER FRONT (BLUE) | FOR YSF

63112-47H10-YSF

Unavailable

3-2

COVER, FENDER FRONT (WHITE) | FOR AJS

63112-47H10-YWW

Unavailable

3-3

COVER, FENDER FRONT (BLACK) | FOR JSP

63112-47H10-YVB

Unavailable

4

FENDER, REAR

63113-47H00

$166.30

5

BOLT (6X30)

09103-06204

$2.80

6

WASHER (6.5X18X1.0)

09160-06028

$1.48

7

CUSHION (20X32X9) This part replaces 09320-20010.

09320-20011

$3.38

8

SPACER

63147-47H00

$27.32

9

CLIP (BLACK)

09409-06314-5PK

$2.80

10

COVER, FENDER REAR RH (SILVER

63170-47H00-YUS

Unavailable

11

COVER, FENDER REAR LH (SILVER

63180-47H00-YUS

Unavailable

12

BOLT

07120-0510A

Unavailable

13

FENDER, REAR LOWER

63114-47H00

$61.17

14

SCREW (6X16)

09139-06169

$2.88

15

WASHER

08322-0106A

$1.89

16

CLIP

09409-06328

$3.00

17

CUSHION, TOOL BAG

33652-20C00

$2.86

18

COLOR :

SPECIAL NOTE

Unavailable

18

AJP=YKY(BLUE),YWW(WHITE)

SPECIAL NOTE

Unavailable

18

:

SPECIAL NOTE

Unavailable

18

JSP=YVB(BLACK),YVZ(RED)

SPECIAL NOTE

Unavailable
