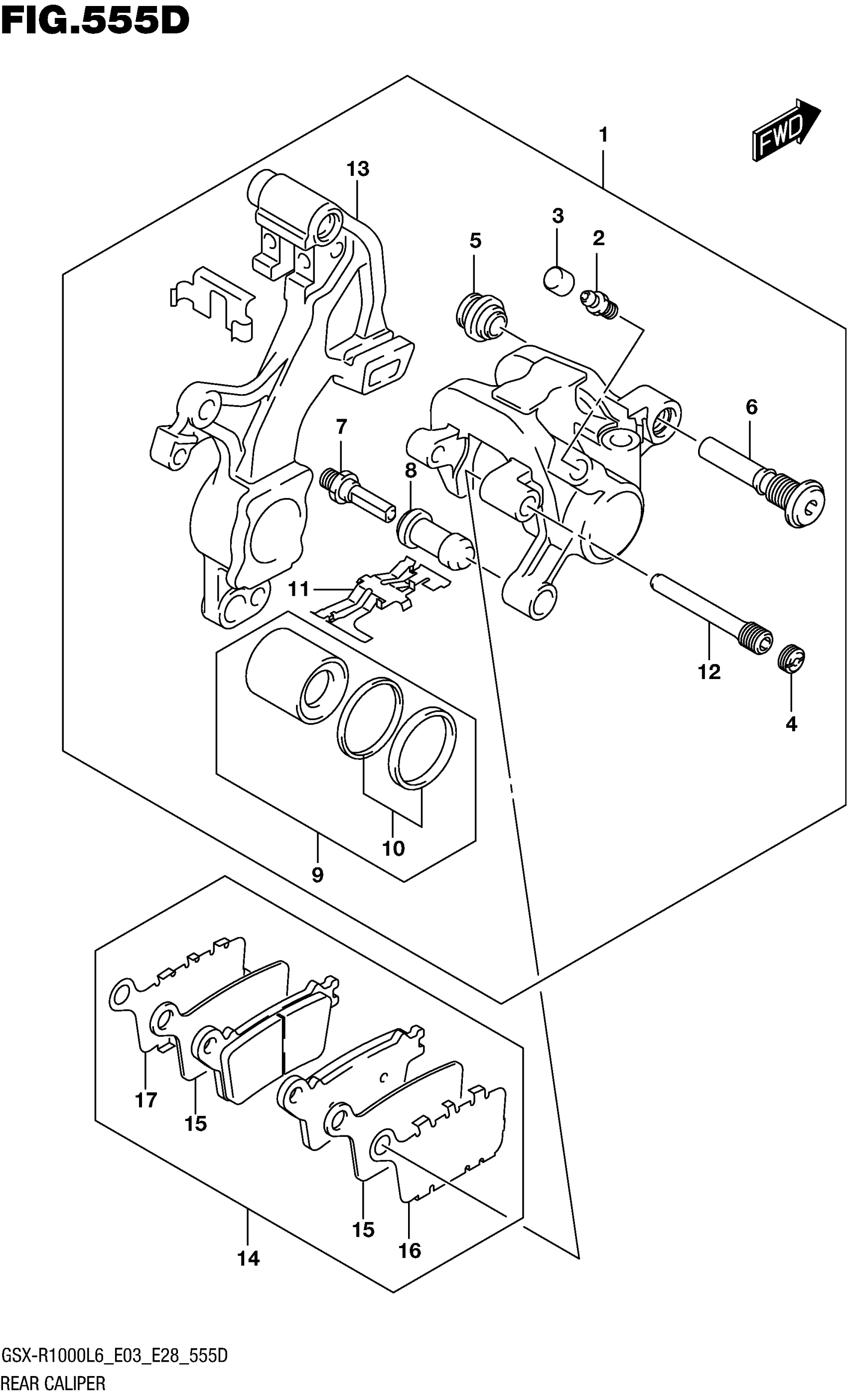

Suzuki GSX-R1000L6 (2016) REAR CALIPER (GSX-R1000AL6 E28) Diagram

Description

Price

CALIPER ASSY, REAR

69100-47H20-999

Unavailable

.BLEEDER

59121-01A00

$8.73

.CAP, BLEEDER

59122-46H00

$4.43

.PLUG, PIN

59146-21E10

$6.15

.BOOT

59303-14500

$5.52

.PIN, BOLT

59305-36E00

$18.20

.PIN

59382-14500

$8.95

.BOOT

59386-13A00

$7.95

.PISTON SET

69100-47810

$127.87

..SEAL SET, PISTON

69100-13810

$9.61

.SPRING, PAD

69115-47H00

$12.02

.PIN, PAD

69141-40F00

$29.48

.BRACKET,RR

69150-47H20

$87.77

PAD & SHIM SET

69100-47830

$75.02

.INSULATOR

69132-47H00

$15.42

.RETAINER, PAD

69133-47H00

$13.85

.RETAINER, PAD

69134-47H00

$13.85
