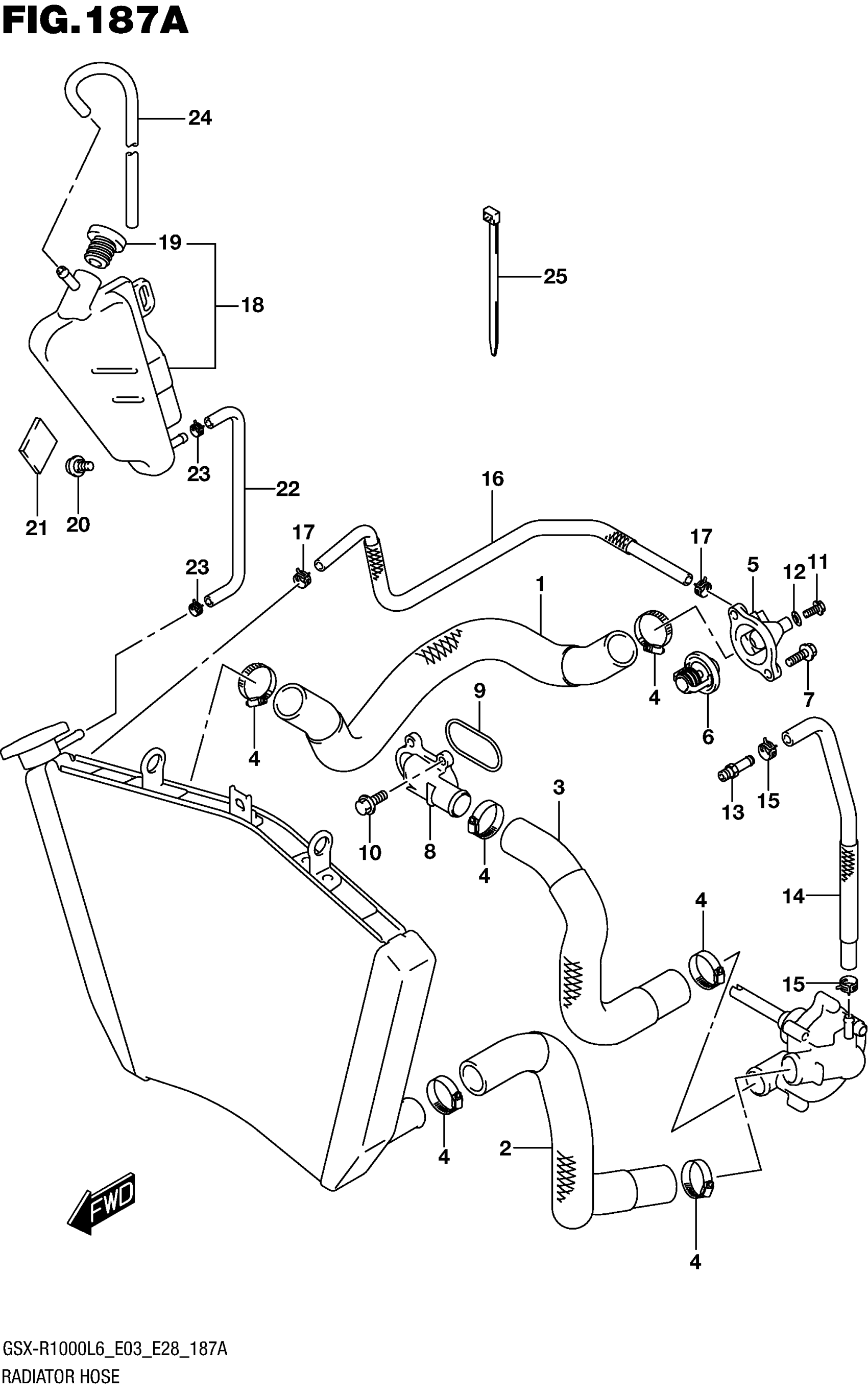

Suzuki GSX-R1000L6 (2016) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE, RADIATOR INLET

17851-47H10

$75.17

2

HOSE, RADIATOR OUTLET

17852-47H10

$66.82

3

HOSE, CYLINDER INLET

17853-47H10

$62.17

4

CLAMP

09402-35501

$7.29

5

COVER, THERMOSTAT

17661-35F00

$43.10

6

THERMOSTAT COMP This part replaces 17670-47H00.

17670-47H01

$25.97

7

BOLT

01547-0620A

$2.03

8

CONNECTOR, CYLINDER INLET

17861-47H00

Unavailable

9

O RING

17863-47H00

$8.60

10

BOLT

01547-0620A

$2.03

11

BOLT, THERMOSTAT COVER AIR

17568-50F00

$4.76

12

GASKET (6.4X11.5X0.8)

09168-06026

$3.10

13

UNION

09362-09011

$8.28

14

HOSE, WATER BYPASS

17854-47H20

$30.45

15

CLIP

09401-12414

$3.26

16

HOSE, WATER AIR BLEED

17855-47H10

Unavailable

17

CLIP (ID:10.5,H:8)

09401-10409

$2.26

18

TANK ASSY, RESERVOIR

17910-47H00

$77.92

19

.CAP,RESERVOIR TANK

17931-02FA0

$5.56

20

BOLT (6X12)

09111-06085

$4.54

21

CUSHION

63191-25C00

$3.05

22

HOSE, RESERVOIR TANK INLET

17981-47H00

$13.70

23

CLIP

09401-08411

$1.78

24

HOSE, OVER FLOW

17982-47H00

Unavailable

25

CLAMP (L:100)

09407-10404

$2.90
