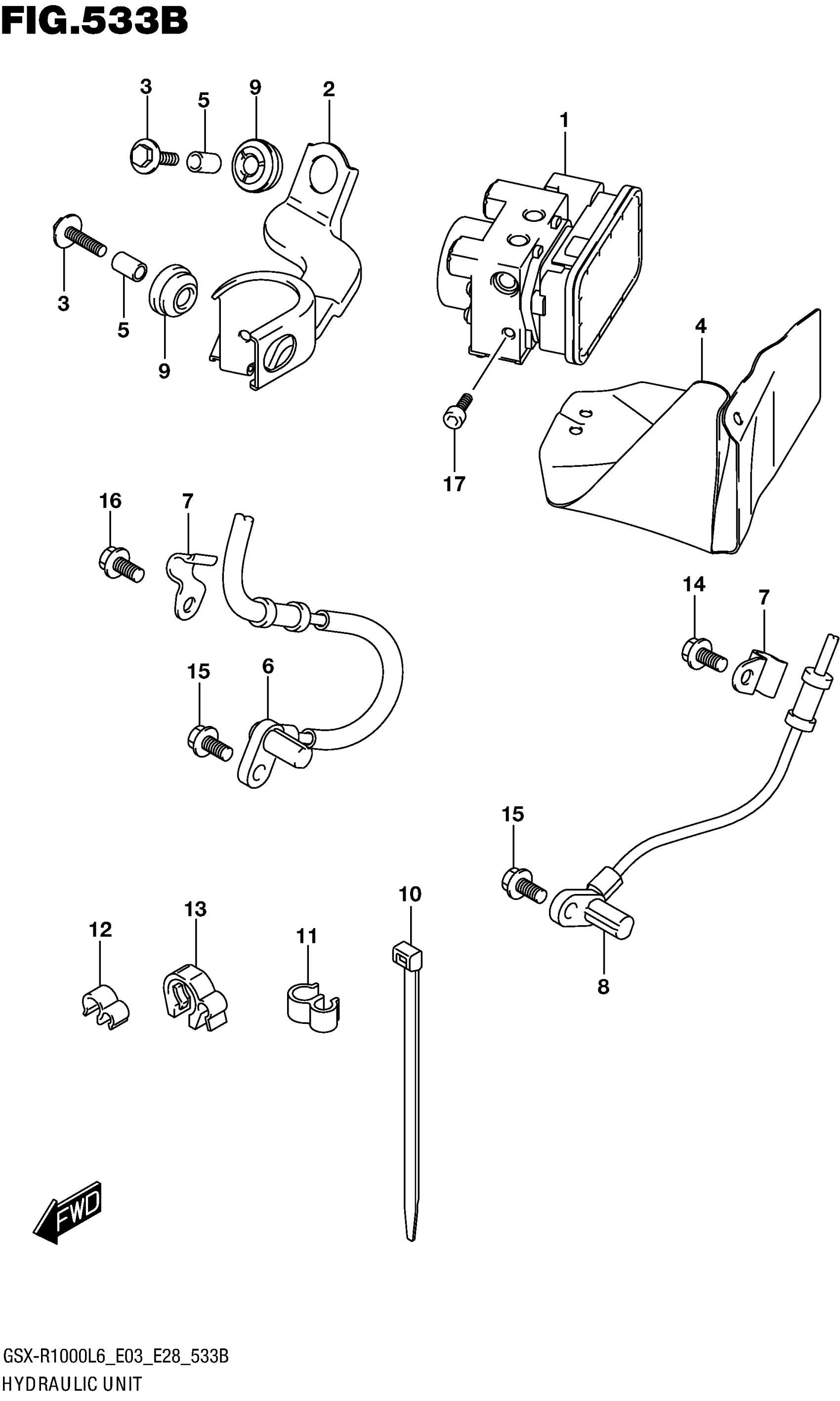

Suzuki GSX-R1000L6 (2016) HYDRAULIC UNIT (GSX-R1000AL6 E33) Diagram

#

Description
Price

1

UNIT ASSY, HYDRAULIC ABS

55610-47H00

Unavailable

2

HOLDER, HYDR UNIT

55660-47H00

$40.77

3

BOLT, HYDR UNIT MTG

55661-10G00

Unavailable

4

SHIELD, ABS UNIT HEAT

55661-47H00

Unavailable

5

SPACER, HYDR UNIT MTG

55662-10G00

Unavailable

6

SENSOR COMP,FR WHEEL SPEED

55710-47H00

$158.00

7

CLAMP, ABS SENSOR FR

55731-15H00

$4.83

8

SENSOR COMP, RR WHEEL SPEED

65710-47H00

$81.03

9

RUBBER

09320-10066

$4.82

10

CLAMP (L:145)

09407-14407

$3.57

11

CLIP

09408-00101

$3.13

12

CLAMP

09408-00266

$2.51

13

CLAMP

09408-00307

$2.97

14

BOLT

01547-0612B

$1.49

15

BOLT

01547-0616B

$2.45

16

BOLT

01547-0616B

$2.45

17

BOLT

07130-0612A

$2.50
