Description

Price

1

HANDLEBAR, RH

56111-47H10

$165.50

2

HANDLEBAR, LH

56151-47H11

$145.28

3

BOLT (8X32)

09106-08185

$2.73

4

BALANCER SET,HANDLEBAR This part replaces 56200-41822.

56200-41823

$31.13

5

.SCREW

02122-0640B

$3.08

6

.WASHER (6.5X16X4)

09160-06131

$2.50

7

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.72

8

.NUT

56273-10G10

$8.65

9

MIRROR ASSY,RR VIEW,R

56500-47H01

$174.01

10

.CAP,R

56515-47H01

$5.75

11

MIRROR ASSY,RR VIEW,L

56600-47H01

$174.01

12

.CAP,L

56615-47H01

$5.75

13

CUSHION, RH

94575-47H00

$7.95

14

CUSHION, LH

94576-47H00

$14.50

15

NUT,RR VIEW MIRROR

56619-41G01

$9.31

16

CABLE ASSY, CLUTCH

58200-47H20

$58.53

17

CLAMP (L:154)

09407-17403

$4.91

18

CABLE ASSY,THRO This part replaces 58300-47H00.

58300-47H01

$46.38

19

CABLE ASSY,THRO This part replaces 58300-47H10.

58300-47H11

$43.73

20

SCREW (5X10)

09125-05042

$1.96

21

GUIDE, THROTTLE CABLE

58620-47H00

$18.58

22

BOLT

01547-0612A

$2.03

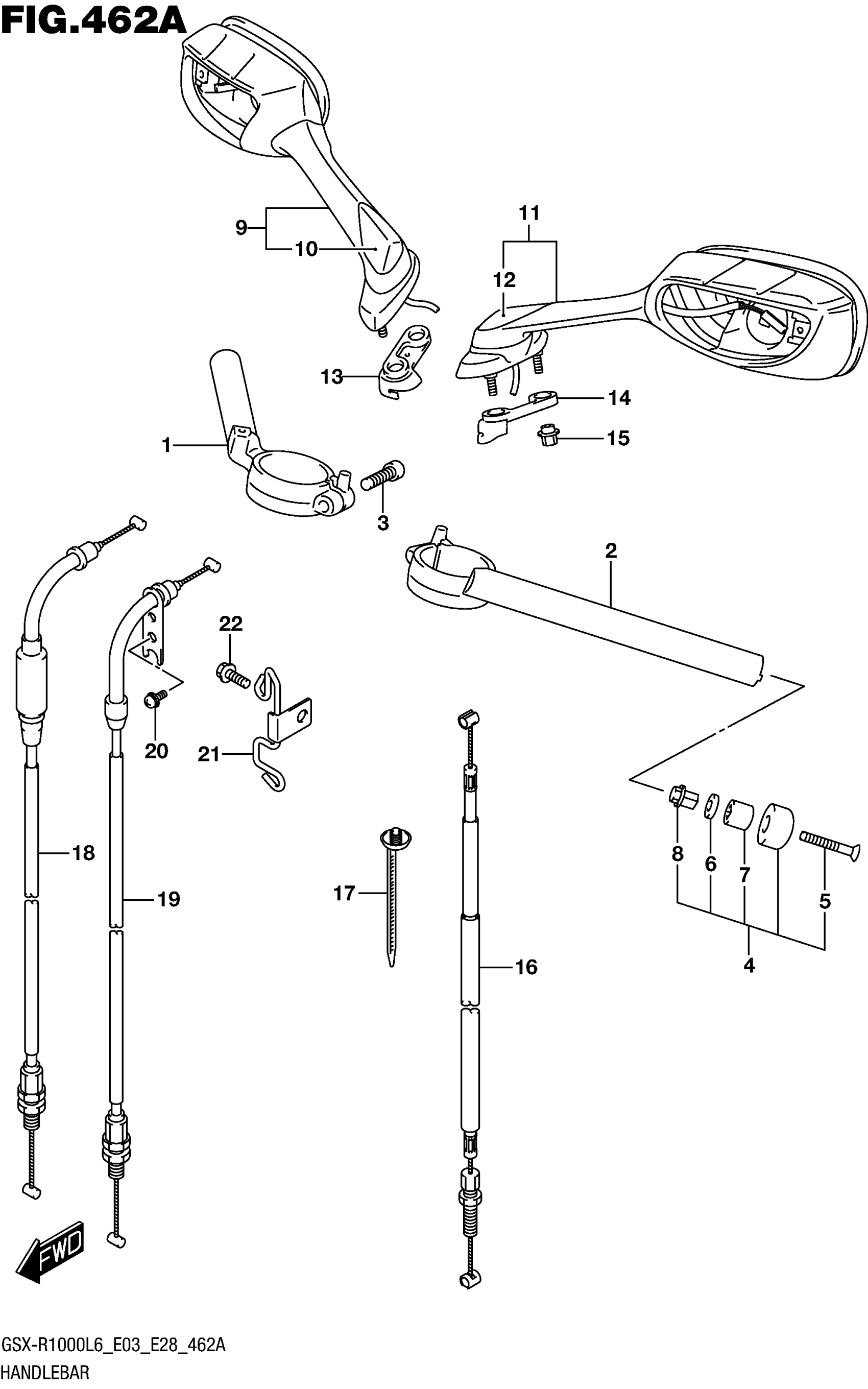

Suzuki GSX-R1000L6 (2016) HANDLEBAR (GSX-R1000L6 E03) Diagram
