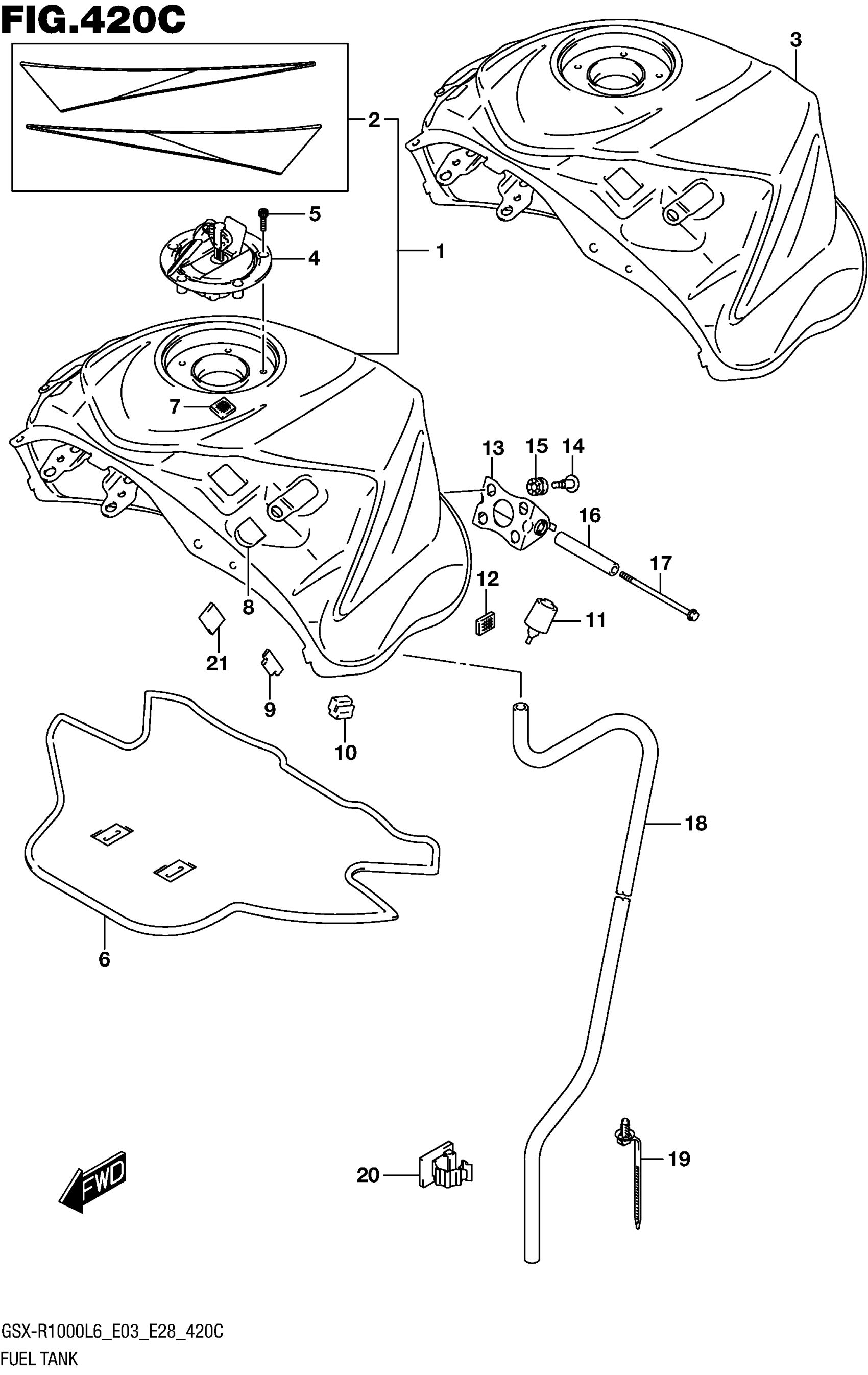

Suzuki GSX-R1000L6 (2016) FUEL TANK (GSX-R1000L6 E33) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLUE) | FOR YSF

44100-47H50-YSF

$1,260.97

2

.TAPE SET, FUEL TANK | FOR YSF

68110-47H10-A3F

$67.55

3-1

TANK ASSY, FUEL (BLUE) | FOR AJP

44100-47H21-YKY

Unavailable

3-2

TANK ASSY, FUEL (RED) | FOR JSP

44100-47H21-YVZ

Unavailable

4

CAP SET,FUEL TA This part replaces 44200-16870.

44200-16872

$155.42

5

BOLT (5X20)

09106-05017

$2.83

6

SHIELD, FUEL TANK HEAT

44191-47H00

Unavailable

7

FASTENER, COVER FRONT

44572-44G00

$10.18

8

CUSHION

09329-18001

$1.91

9

CUSHION,FUEL TANK COVER This part replaces 44276-21H00.

44276-21H01

$5.80

10

CUSHION, FUEL TANK SIDE

44541-41G00

$5.98

11

CUSHION,FUEL TANK RR

44542-41G00

$7.69

12

FASTENER, COVER SIDE

44572-13G00

$11.07

13

BRACKET,FUEL TANK

44530-41G01

$40.55

14

SCREW (6X22)

09139-06191

$4.03

15

CUSHION

09320-08071

$3.25

16

SPACER, JOINT

44561-18G00

$16.96

17

BOLT (6X110)

09106-06119

$5.76

18

HOSE, DRAIN

44423-47H00

Unavailable

19

CLAMP (L:154)

09407-17403

$4.91

20

CLAMP

09403-14311

$5.33

21

CUSHION

61544-94500

$1.68

22

COLOR :

SPECIAL NOTE

Unavailable

22

AJP=YKY(BLUE),YWW(WHITE)

SPECIAL NOTE

Unavailable

22

:

SPECIAL NOTE

Unavailable

22

JSP=YVB(BLACK),YVZ(RED)

SPECIAL NOTE

Unavailable
