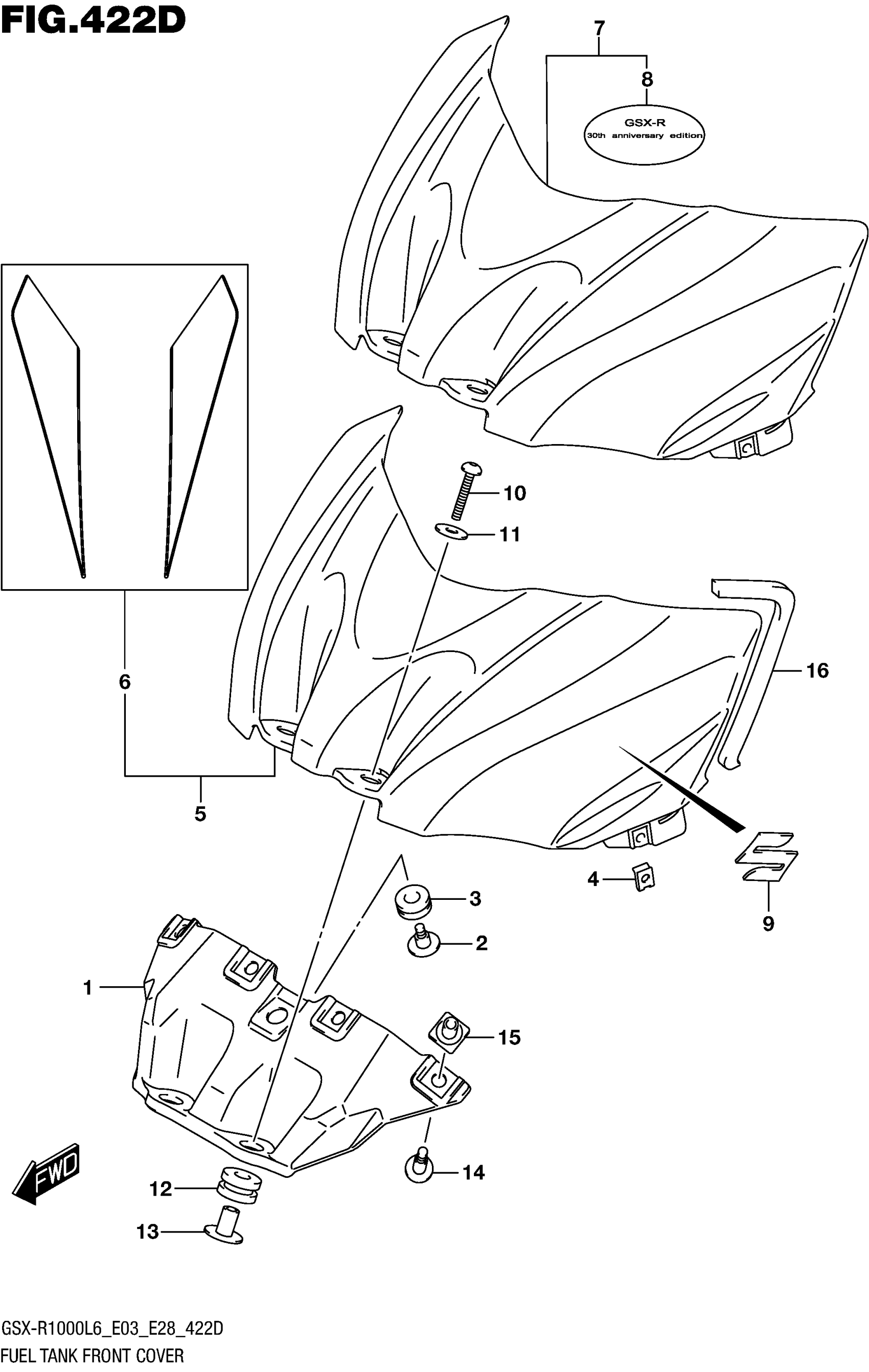

Suzuki GSX-R1000L6 (2016) FUEL TANK FRONT COVER (GSX-R1000AL6 E28) Diagram

#

Description
Price

1

BRACKET, FRONT

44521-47H00

Unavailable

2

SCREW (5X16.4)

09139-05078

$3.49

3

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

4

NUT

09148-05052

$3.37

5

COVER, FRONT (BLUE) | FOR YSF

44290-47H20-YSF

Unavailable

6

.TAPE SET, FUEL TANK COVER | FOR YSF

68120-47H10-AGQ

$44.82

7-1

COVER, FRONT (BLUE) | FOR AJP

44290-47H40-YKY

Unavailable

7-2

COVER, FRONT (RED) | FOR JSP

44290-47H40-YVZ

Unavailable

8

.EMBLEM, FUEL TANK COVER | FOR YKY,YVZ

68121-47H10-QES

Unavailable

9

EMBLEM "S"

68111-47HA0

$40.44

10

SCREW (6X40)

09139-06105

$7.35

11

WASHER This part replaces 09160-06012.

09160-06054

$1.62

12

CUSHION (10X22X13)

09320-10050

$3.35

13

SPACER

44512-47H00

$12.82

14

SCREW (6X10)

09139-06181

$3.83

15

NUT

44523-47H00

$10.02

16

CUSHION

44277-37H00

$5.18

17

COLOR :

SPECIAL NOTE

Unavailable

17

AJP=YKY(BLUE),YWW(WHITE)

SPECIAL NOTE

Unavailable

17

:

SPECIAL NOTE

Unavailable

17

JSP=YVB(BLACK),YVZ(RED)

SPECIAL NOTE

Unavailable
