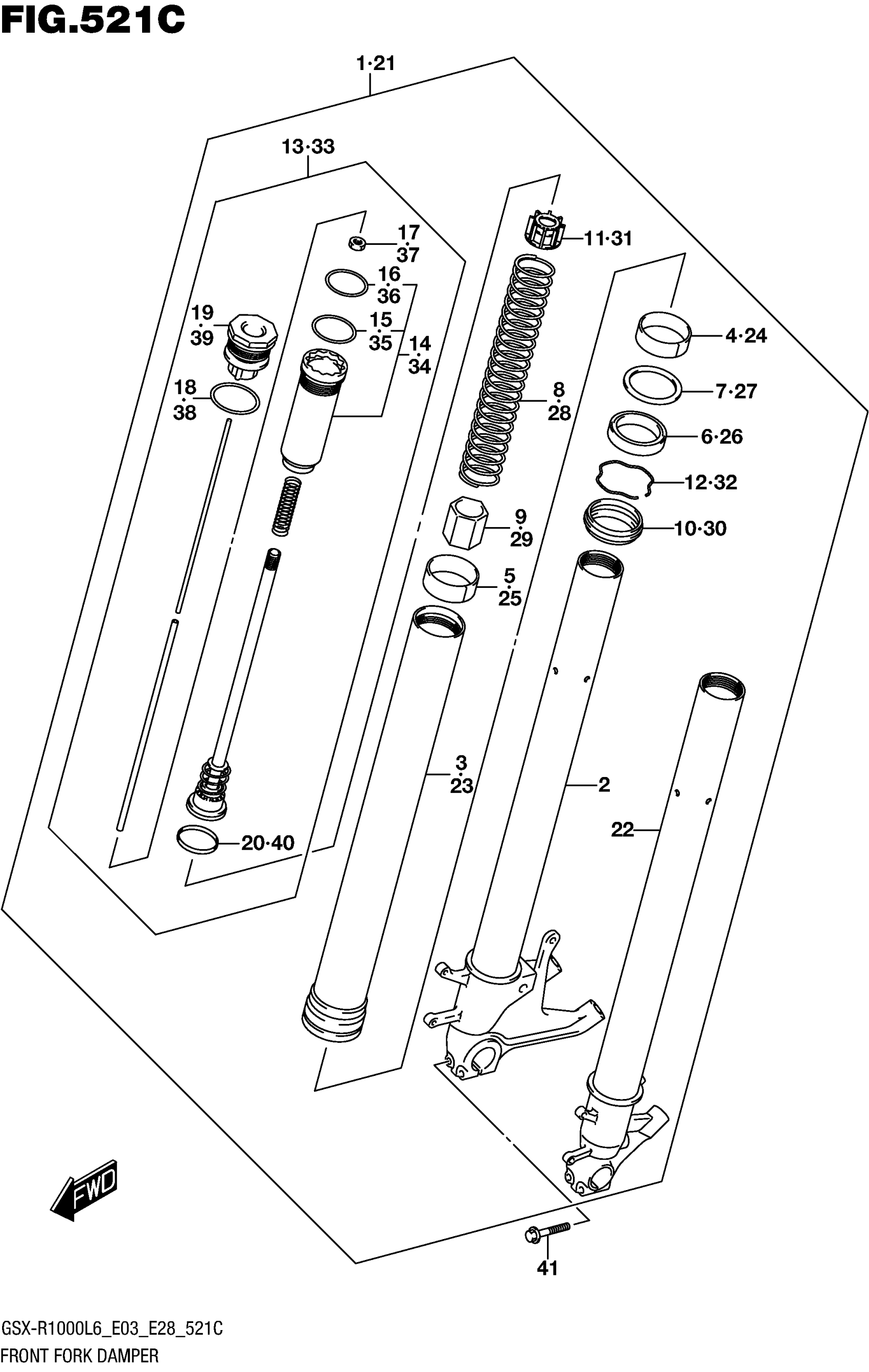

Suzuki GSX-R1000L6 (2016) FRONT FORK DAMPER (GSX-R1000L6 E33) Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-47H20

Unavailable

2

.TUBE, INNER RH

51110-47H20

$861.08

3

.TUBE, OUTER

51131-47H20

$651.70

4

.BUSH, GUIDE

51152-47H00

$14.20

5

.BUSH, SLIDE

51152-47H10

$14.76

6

.SEAL, OIL

51153-47H00

$26.91

7

.SPACER, SEAL

51168-29G00

$6.52

8

.SPRING

51171-47H20

Unavailable

9

.COLLAR, SPRING

51176-47H20

$65.40

10

.SEAL, DUST

51173-27G00

$26.58

11

.COLLAR, SPRING

51175-47H00

Unavailable

12

.RING, STOPPER

51556-38B00

$7.22

13

.ROD, PISTON

52110-47H20

Unavailable

14

..CASE, ROD GUIDE

51174-47H20

Unavailable

15

...RING, PISTON

51118-47H00

$20.25

16

...O-RING

51187-47H10

$8.30

17

..NUT

51827-29G00

Unavailable

18

..O-RING

51187-47H00

$6.93

19

..BOLT

51189-47H20

$210.53

20

..RING, PISTON

51118-47H20

$12.88

21

DAMPER ASSY, FRONT FORK LH

51104-47H20

Unavailable

22

.TUBE, INNER LH

51120-47H20

$861.08

23

.TUBE, OUTER

51131-47H20

$651.70

24

.BUSH, GUIDE

51152-47H00

$14.20

25

.BUSH, SLIDE

51152-47H10

$14.76

26

.SEAL, OIL

51153-47H00

$26.91

27

.SPACER, SEAL

51168-29G00

$6.52

28

.SPRING

51171-47H20

Unavailable

29

.COLLAR, SPRING

51176-47H20

$65.40

30

.SEAL, DUST

51173-27G00

$26.58

31

.COLLAR, SPRING

51175-47H00

Unavailable

32

.RING, STOPPER

51556-38B00

$7.22

33

.ROD, PISTON

52110-47H20

Unavailable

34

..CASE, ROD GUIDE

51174-47H20

Unavailable

35

...RING, PISTON

51118-47H00

$20.25

36

...O-RING

51187-47H10

$8.30

37

..NUT

51827-29G00

Unavailable

38

..O-RING

51187-47H00

$6.93

39

..BOLT

51189-47H20

$210.53

40

..RING, PISTON

51118-47H20

$12.88

41

BOLT

51321-36F00

$5.95
