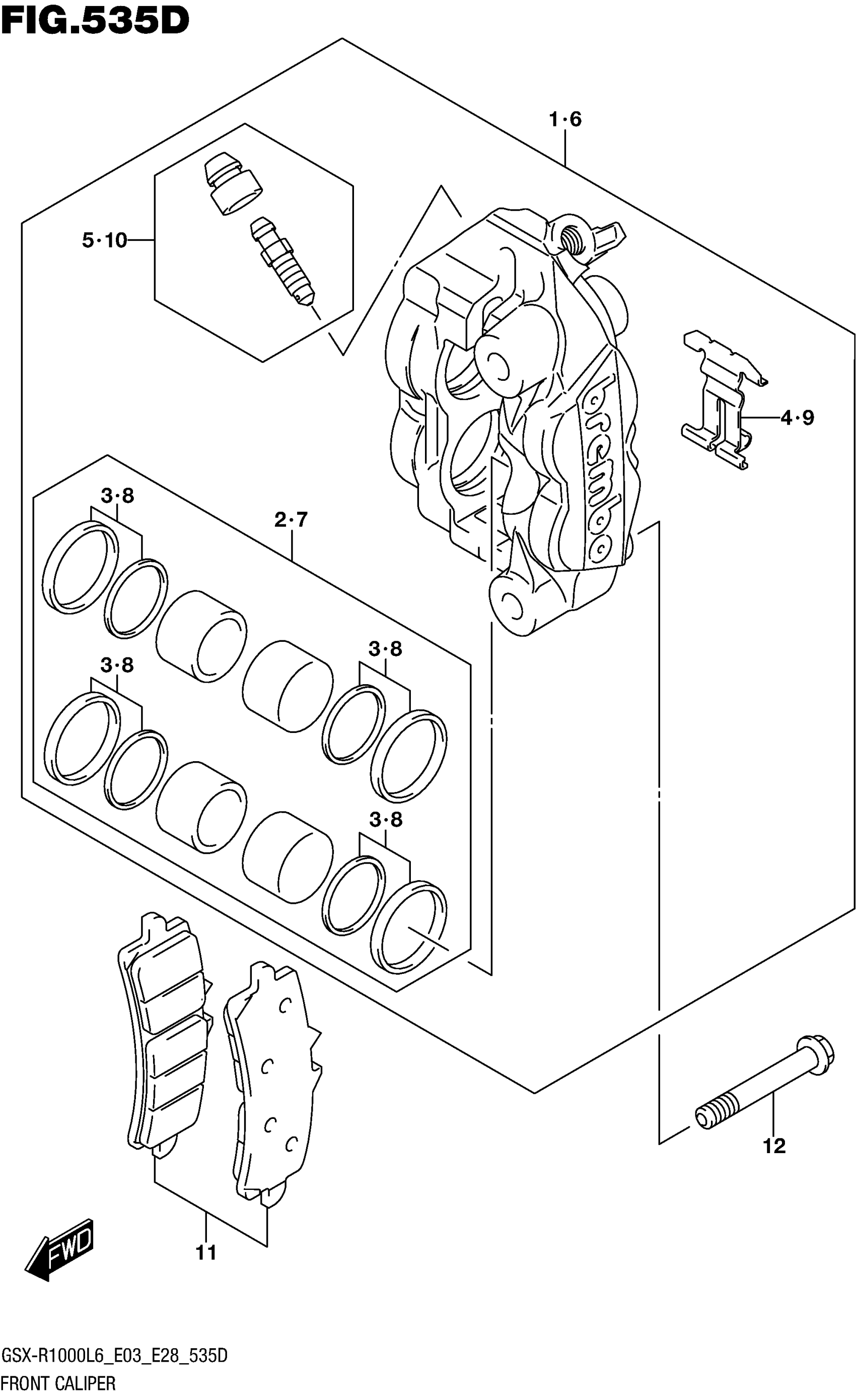

Suzuki GSX-R1000L6 (2016) FRONT CALIPER (GSX-R1000AL6 E28) Diagram

Description

Price

1-1

CALIPER ASSY, FRONT RH

59100-14J40-999

$677.02

1-2

CALIPER ASSY, FRONT RH | OPT:BLUE

59110-14JB0

Unavailable

1-3

CALIPER ASSY, FRONT RH | OPT:YELLOW

59110-14JC0

Unavailable

1-4

CALIPER ASSY, FRONT RH | OPT:RED

59110-14JD0

Unavailable

.PISTON SET

59100-14810

$101.95

..SEAL SET, PISTON

59100-14820

$63.34

.SPRING, PAD

59151-14J00

$23.43

.BLEEDER SET

59100-14840

$25.21

6-1

CALIPER ASSY, FRONT LH

59300-14J40-999

$677.02

6-2

CALIPER ASSY, FRONT LH | OPT:BLUE

59310-14JB0

Unavailable

6-3

CALIPER ASSY, FRONT LH | OPT:YELLOW

59310-14JC0

Unavailable

6-4

CALIPER ASSY, FRONT LH | OPT:RED

59310-14JD0

Unavailable

.PISTON SET

59100-14810

$101.95

..SEAL SET, PISTON

59100-14820

$63.34

.SPRING, PAD

59151-14J00

$23.43

.BLEEDER SET

59100-14840

$25.21

PAD (T4.0)

59100-14850

$59.36

BOLT (10X70)

09103-10450

$4.90
