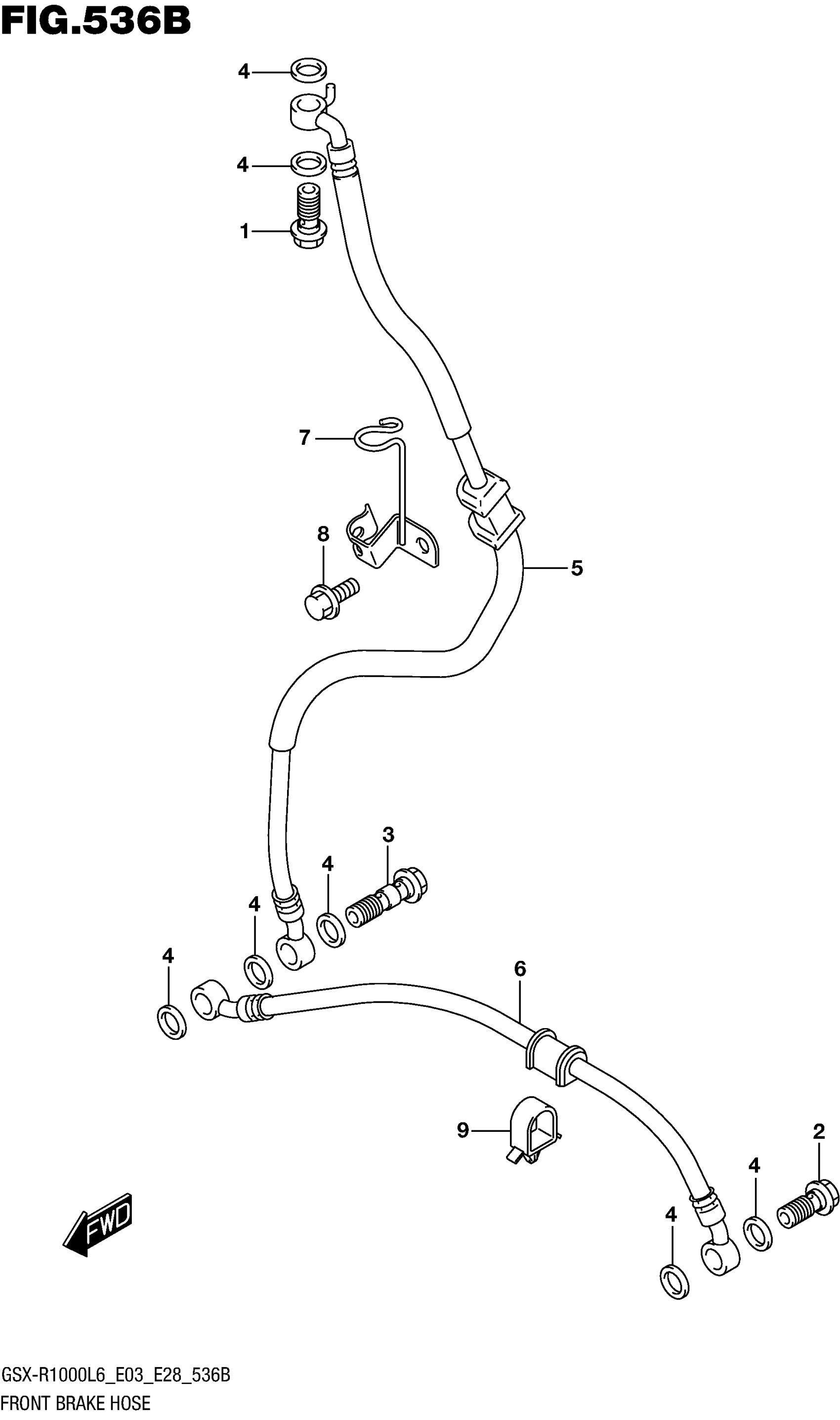

Suzuki GSX-R1000L6 (2016) FRONT BRAKE HOSE (GSX-R1000L6 E28) Diagram

#

Description
Price

1

UNION

09360-10065

$9.70

2

UNION | LH

09360-10062

$5.99

3

UNION | RH

09360-10064

$5.99

4

WASHER (10X15X1.5)

09161-10009

$1.89

5

HOSE This part replaces 59480-47H10.

59480-47H11

$118.63

6

HOSE,FR BRAKE NO.2

59240-14J00

$131.02

7

CLAMP,FR BK HOSE NO.1

59260-47H00

$30.62

8

BOLT

01547-0612A

$2.09

9

CLAMP

09403-16412

$3.18
