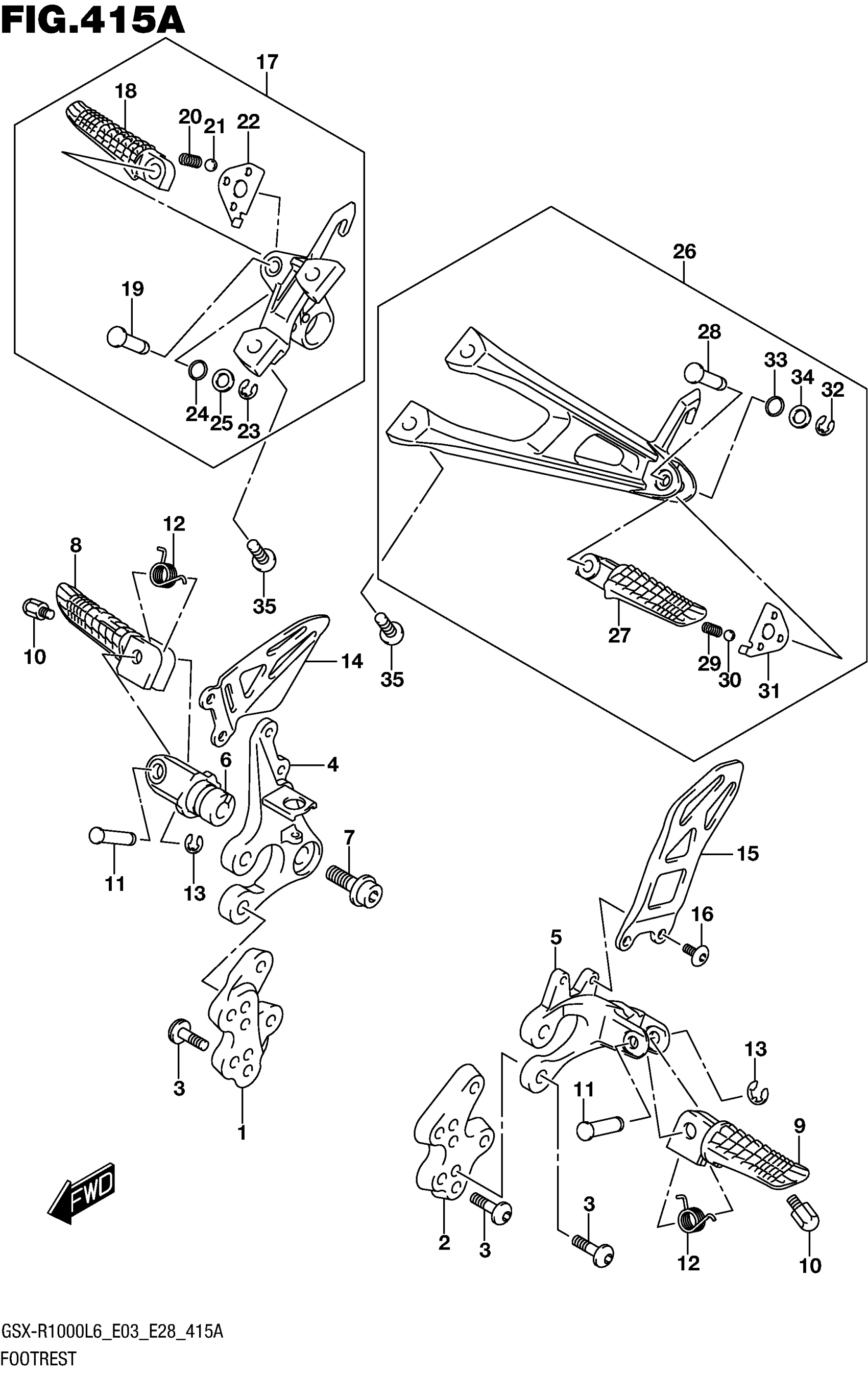

Suzuki GSX-R1000L6 (2016) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT NO.1 RH

43541-47H10

$80.75

2

BRACKET, FRONT NO.1 LH

43551-47H10

$80.75

3

BOLT (8X23)

09106-08186

$3.42

4

BRACKET, FRONT NO.2 RH

43511-47H10

$128.43

5

BRACKET,FR FOOTREST NO.2,L

43521-47H20

$87.37

6

HOLDER,FOOTREST

43531-41G20

$91.90

7

BOLT (10X28)

09106-10064

$4.90

8

BAR,FRONT FOOTREST,R

43516-37H10

$52.08

9

BAR,FRONT FOOTREST,L

43526-37H10

$52.08

10

BOLT,BANK SENSOR

43576-48B40

$11.04

11

PIN

09208-08018

$2.79

12

SPRING, FRONT FOOTREST

43581-47H00

$3.33

13

E RING

08332-1106A

$1.49

14

GUARD,FR FOOTREST,R

43571-47H30

$77.78

15

GUARD,FR FOOTREST,L

43576-47H40

$81.28

16

SCREW,FOOTREST GUARD,L This part replaces 43577-35F00.

43577-35F10

$3.98

17

FOOTREST ASSY,P This part replaces 43600-47H20.

43600-47H40

$213.02

18

BAR,PILLION FOOTREST,R This part replaces 43611-37H10.

43611-37H30

$52.42

19

.PIN

09208-08014

$4.32

20

.SPRING

09440-05005

$1.58

21

BALL

06111-07004

$1.49

22

.PLATE,PILLION FOOTREST,R

43816-47H00

$7.53

23

.E RING

08332-1106A

$1.49

24

.O RING

18592-68K00

$4.82

25

.WASHER

14289-37H00

$5.23

26

FOOTREST ASSY,P This part replaces 43700-47H20.

43700-47H40

$223.68

27

BAR,PILLION FOOTREST,L This part replaces 43621-37H10.

43621-37H30

$55.75

28

.PIN

09208-08014

$4.32

29

.SPRING

09440-05005

$1.58

30

BALL

06111-07004

$1.49

31

.PLATE,PILLION FOOTREST,L

43826-47H00

$7.27

32

.E RING

08332-1106A

$1.49

33

.O RING (D:2.4,ID:6.9)

18592-68K00

$4.82

34

.WASHER

14289-37H00

$5.23

35

BOLT (8X23)

09106-08186

$3.42
