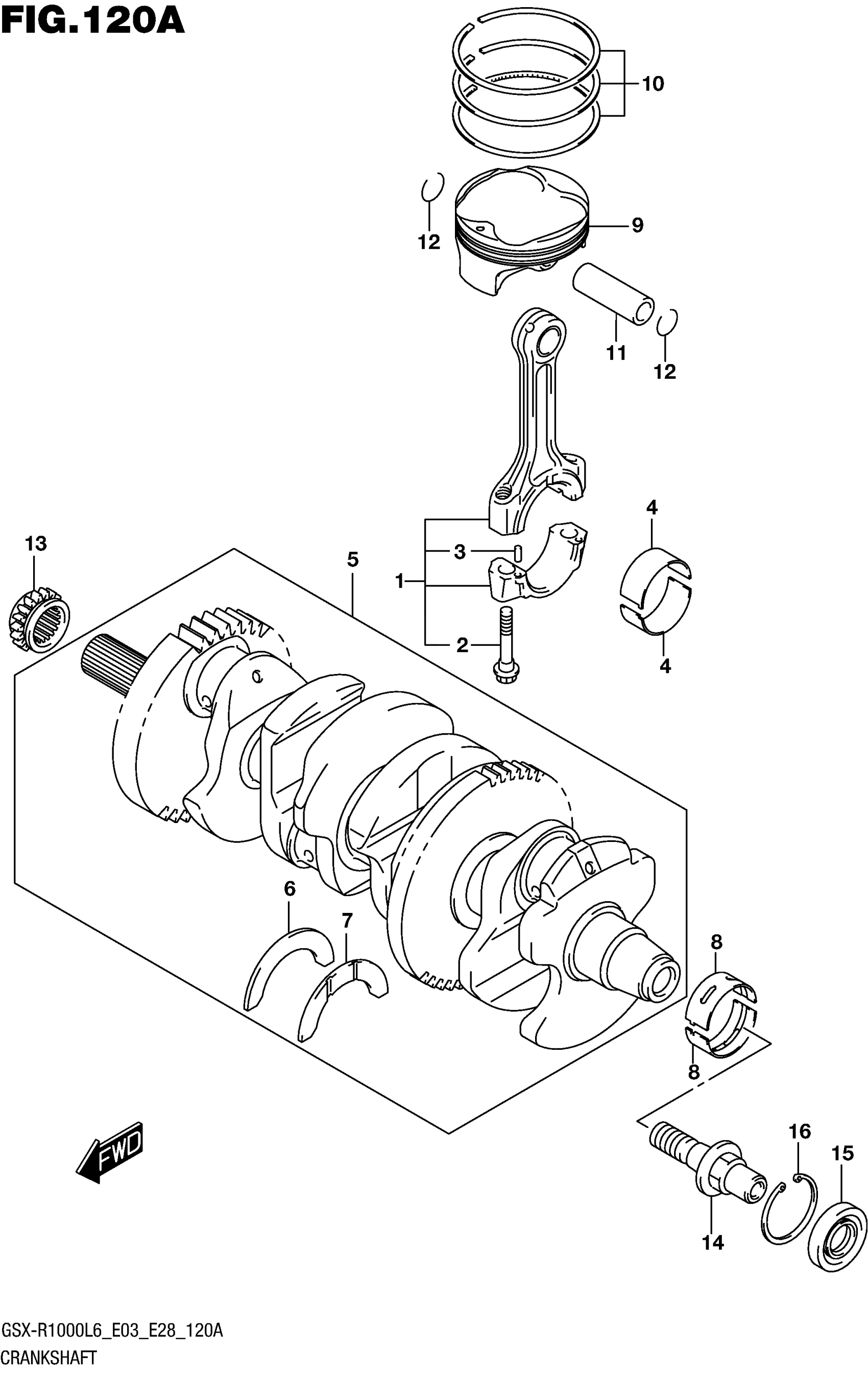

Suzuki GSX-R1000L6 (2016) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING

12160-47H00

$269.83

2

.BOLT,CONNECTING ROD

12163-24F10

$16.45

3

.PIN, CONNROD

12165-27A50

$1.54

4-1

BEARING, CRANK PIN

12164-47H10-0A0

$12.00

4-2

BEARING, CRANK PIN

12164-47H10-0B0

$12.00

4-3

BEARING, CRANK PIN

12164-47H10-0C0

$12.00

4-4

BEARING, CRANK PIN

12164-47H10-0D0

$12.44

5

CRANKSHAFT SET

12000-47860

$2,111.32

6

.BEARING, THRUST RH (GREEN)

12228-48B00-0E0

$9.34

7-1

.BEARING, THRUST LH (BROWN)

12228-48B00-0B0

$11.57

7-2

.BEARING, THRUST LH (RED)

12228-48B00-0C0

$11.35

7-3

.BEARING, THRUST LH (YELLOW)

12228-48B00-0D0

$11.78

7-4

.BEARING, THRUST LH (GREEN)

12228-48B00-0E0

$9.34

7-5

.BEARING, THRUST LH (BLUE)

12228-48B00-0F0

$11.78

7-6

.BEARING, THRUST LH (ORANGE)

12228-48B00-0G0

$11.78

7-7

.BEARING, THRUST LH (BLACK)

12228-48B00-0H0

$9.66

8-1

BEARING, CRANKSHAFT (GREEN)

12229-41G00-0A0

$17.54

8-2

BEARING, CRANKSHAFT (BLACK)

12229-41G00-0B0

$17.54

8-3

BEARING, CRANKSHAFT (BROWN)

12229-41G00-0C0

$17.54

8-4

BEARING, CRANKSHAFT (YELLOW)

12229-41G00-0D0

$17.54

8-5

BEARING, CRANKSHAFT (BLUE)

12229-41G00-0E0

$18.22

9

PISTON

12111-47H50-0F0

$250.78

10

RING SET, PISTON

12140-47H10

$121.75

11

PIN, PISTON

12151-47H00

$19.73

12

CIRCLIP

09381-15001

$1.49

13

SPROCKET, CAM CHAIN

12731-47H00

$114.97

14

BOLT, GENERATOR ROTOR

12224-47H00

$60.77

15

OIL SEAL (14X30X8) | LH

09282-14007

$45.33

16

CIRCLIP

08331-41329

$2.42
