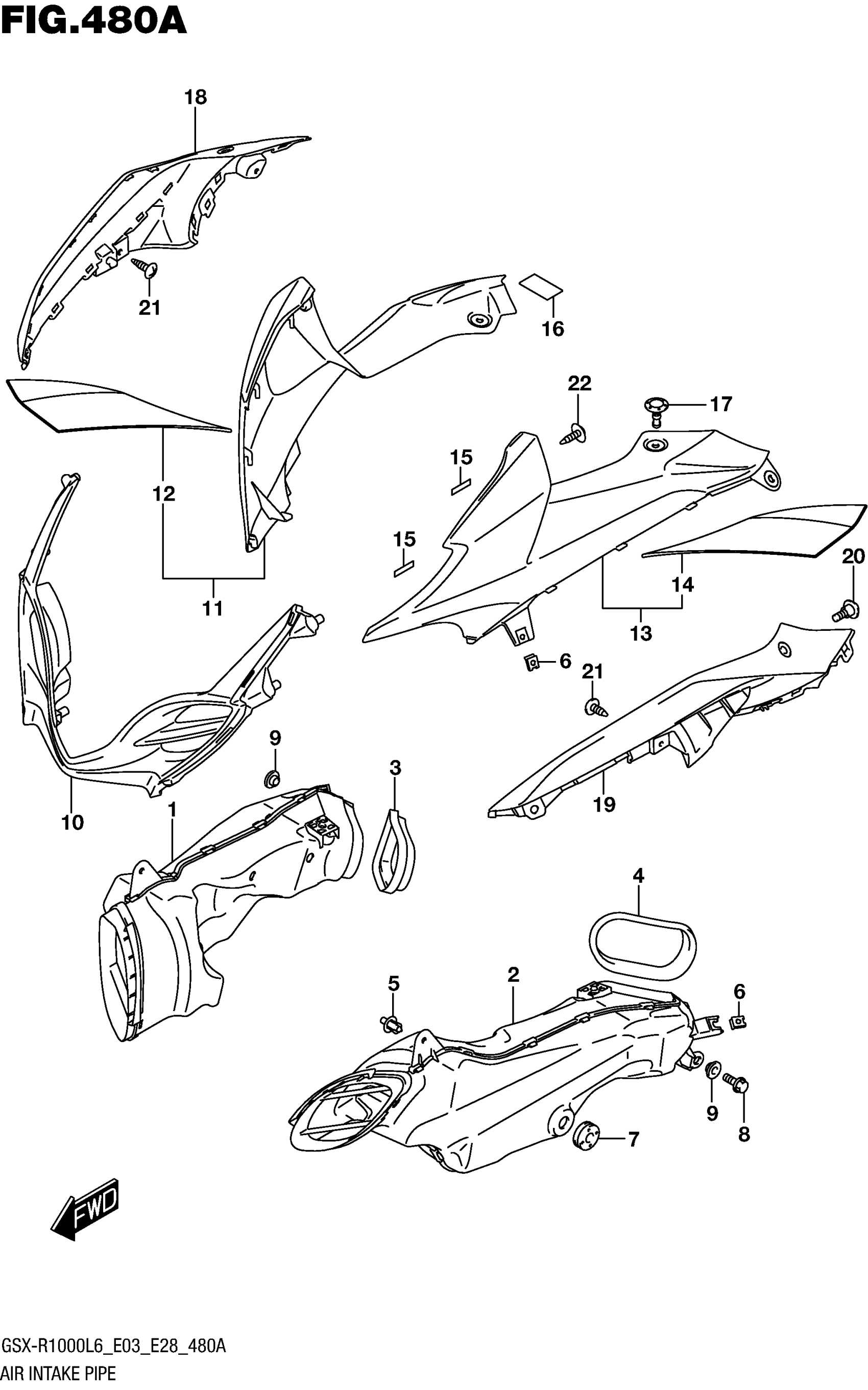

Suzuki GSX-R1000L6 (2016) AIR INTAKE PIPE (YSF) Diagram

#

Description
Price

1

PIPE, AIR INTAKE RH

94420-47H00

$122.85

2

PIPE, AIR INTAKE LH

94430-47H00

$106.39

3

MOLDING, RH

94423-47H00

$17.83

4

MOLDING, LH

94433-47H00

$17.52

5

CLIP (BLACK)

09409-06314-5PK

$2.78

6

NUT

09148-05052

$3.37

7

CUSHION

09320-08028

$3.04

8

BOLT

01550-0616A

$1.97

9

WASHER

09169-06082

$4.32

10

COVER, INTAKE FRONT (BLACK)

94671-47H10-YKV

$224.78

11

COVER, INTAKE RH (BLUE)

94670-47H00-YSF

$206.80

12

.TAPE, INTAKE COVER RH

68275-47H10-A3F

$26.48

13

COVER, INTAKE LH (BLUE)

94680-47H00-YSF

$214.68

14

.TAPE, INTAKE COVER LH

68276-47H10-A3F

$26.48

15

TAPE

94443-06G00

$3.25

16

PROTECTOR (30X80X1.0) This part replaces 33652-13E00.

33652-29F00

$3.03

17

CLIP

94479-35F00

$5.62

18

COWL, SIDE UPPER RH (BLUE)

94473-47H00-YSF

$254.17

19

COWL, SIDE UPPER LH (BLUE)

94483-47H00-YSF

$244.85

20

SCREW (5X16)

09139-05077

$3.25

21

SCREW

03541-0516A

$1.49

22

SCREW (5X12)

09132-05050

$1.92

23

COLOR :

SPECIAL NOTE

Unavailable

23

AJP=YKY(BLUE),YWW(WHITE)

SPECIAL NOTE

Unavailable

23

:

SPECIAL NOTE

Unavailable

23

JSP=YVB(BLACK),YVZ(RED)

SPECIAL NOTE

Unavailable
