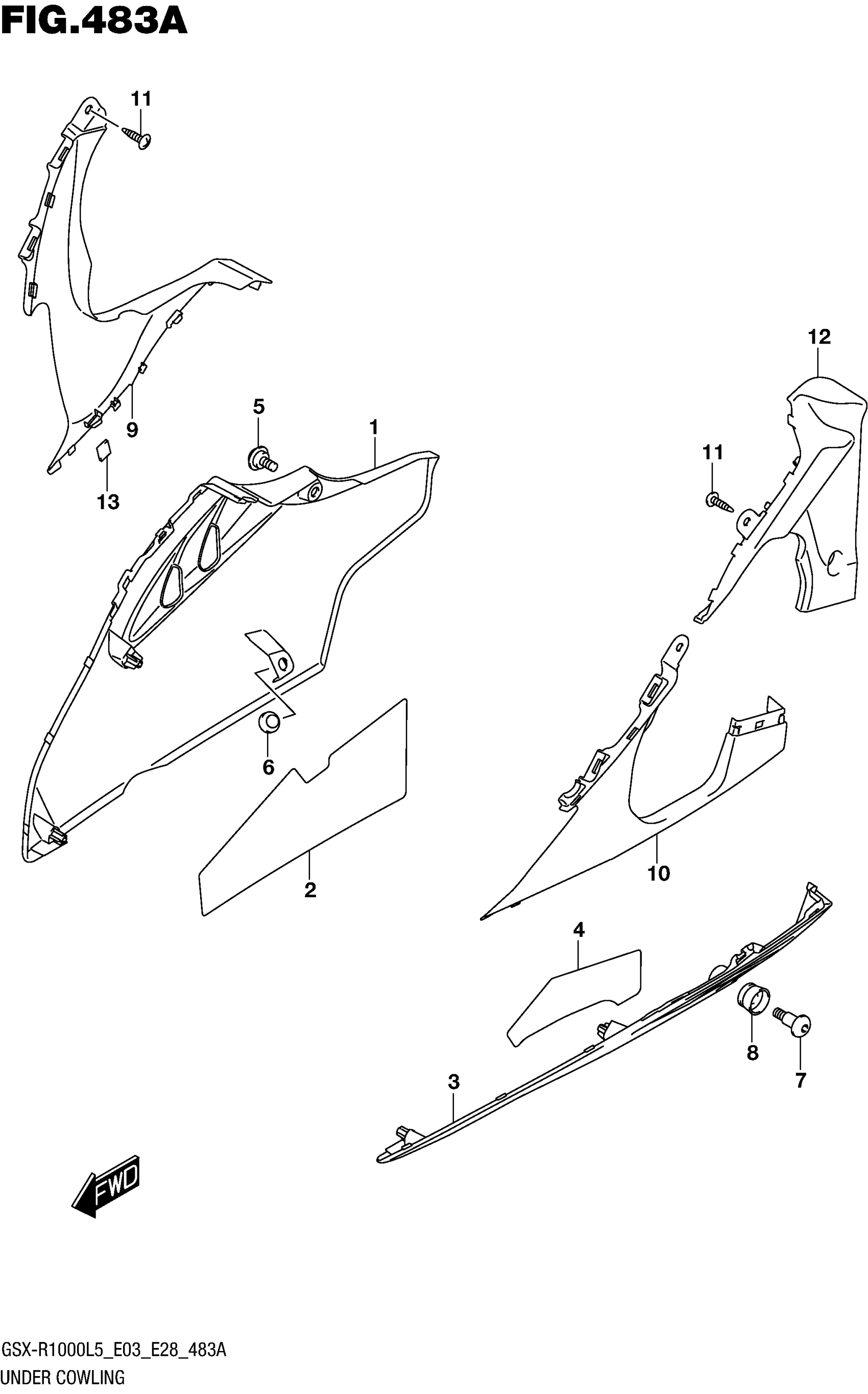

Suzuki GSX-R1000L5 (2015) UNDER COWLING Diagram

#

Description
Price

1

COWL, UNDER RH (BLUE) | FOR YSF

94470-47H00-YSF

$347.85

1

COWL, UNDER RH (RED) | FOR ARB

94470-47H00-YVZ

$347.85

1

COWL, UNDER RH (GRAY) | FOR AR4

94470-47H00-PGZ

Unavailable

2

SHIELD, HEAT FRONT RH

94476-47H00

$14.88

3

COWL, UNDER LH (BLUE) | FOR YSF

94480-47H00-YSF

$347.85

3

COWL, UNDER LH (RED) | FOR ARB

94480-47H00-YVZ

Unavailable

3

COWL, UNDER LH (GRAY) | FOR AR4

94480-47H00-PGZ

$355.62

4

SHIELD, HEAT LH

94486-47H00

$25.92

5

SCREW (5X13)

09139-05064

$2.56

6

CUSHION

09321-10018

$4.19

7

BOLT (6X20)

09139-06190

$3.77

8

CUSHION

94479-15H00

$4.22

9

COWL, SIDE LOWER RH

94474-47H00

$54.07

10

COWL, SIDE LOWER LH

94484-47H00

$53.08

11

SCREW

03541-0516A

$1.37

12

COVER, SIDE COWL LH

94482-47H00

$52.60

13

CUSHION (10X10X1)

63115-37H00

$3.42
