2015 Suzuki GSX-R1000L5 Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 2015 Suzuki GSX-R1000L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

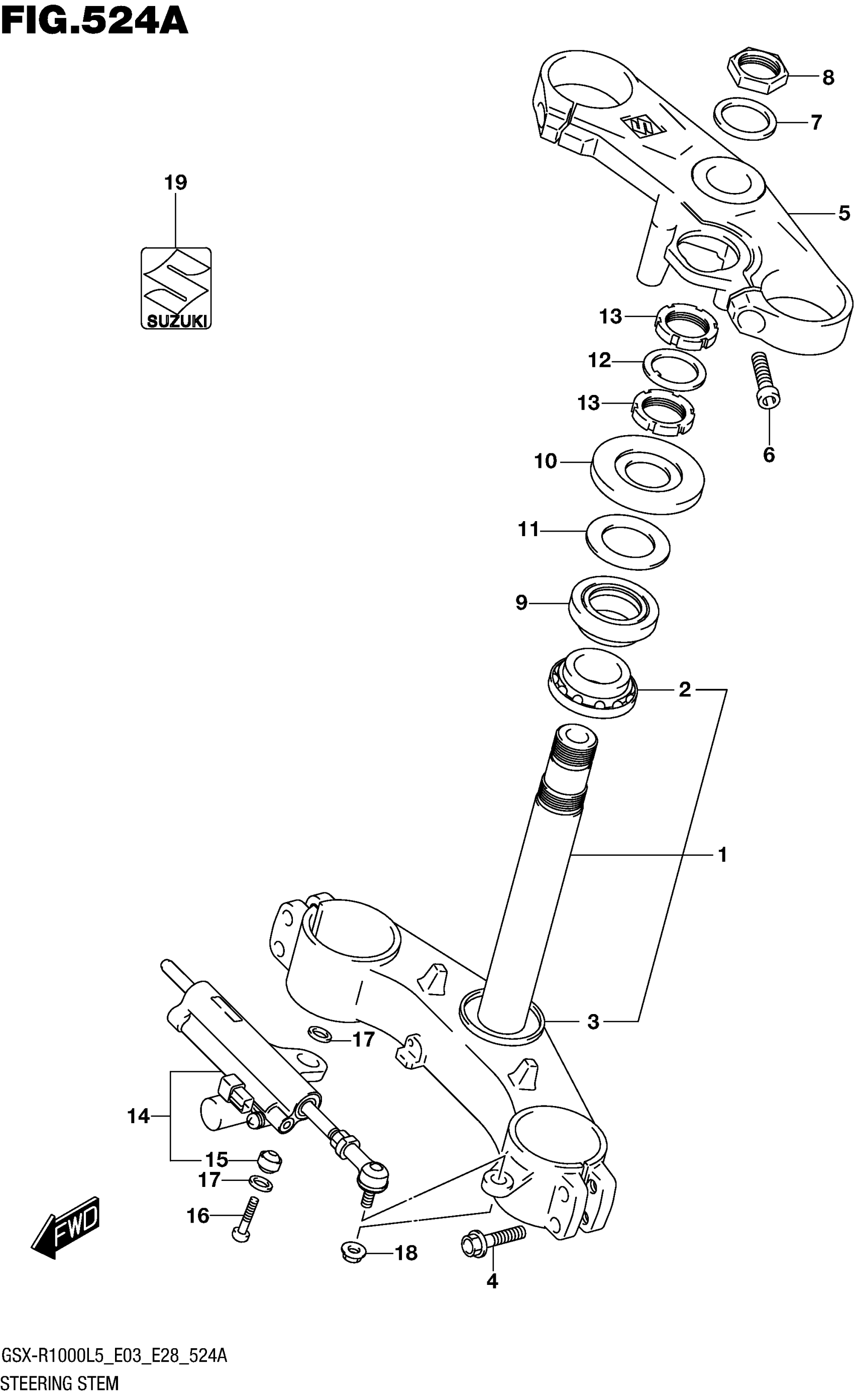

2015 Suzuki GSX-R1000L5 Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEM, STEERING

51410-47H20

1
Out of stock

2

BEARING (30X55X17)

09267-30010

1
Out of stock

3

SEAL, STEM LOWER

51644-12C00

1
Out of stock

4

BOLT,HOLDER AXLE (8X40)

51328-27E30

4
Out of stock

5

HEAD,STEERING STEM

51311-47H00

1
Out of stock

6

BOLT, HOLDER (8X25)

51321-27E30

2
Out of stock

7

WASHER,STEM HEAD

51354-01H00

1
Out of stock

8

NUT

51353-01H00

1
Out of stock

9

BEARING (30X55X17)

09267-30010

1
Out of stock

10

COVER, STEERING UPPER

51643-41G00

1
Out of stock

11

SEAL, UPPER DUST

51644-12C00

1
Out of stock

12

WASHER, STEM

51641-33E00

1
Out of stock

13

NUT, STEM

51631-33E00

2
Out of stock

14

DAMPER ASSY,STE This part replaces 51750-21H20.

51750-21H21

1
Out of stock

15

BEARING (8X17.5X11)

09269-08003

1
Out of stock

16

BOLT (8X35)

09106-08130

1
Out of stock

17

SEAL, PILLOWBALL DUST

64339-14101

2
Out of stock

18

NUT

08319-3108A

1
Out of stock

19

EMBLEM, "S"

68281-47HA0

1
Out of stock
