Description

Price

1

GRIP,THROTTLE This part replaces 57110-21H01.

57110-21H02

$18.61

2

LEVER ASSY,BRAKE

57300-29G40

$83.38

3

BOLT, PIVOT

57431-29G00

$8.52

4

NUT

08319-2106A

$1.89

5

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$35.21

6

SCREW

57465-17C00

$2.37

7

GRIP, LH This part replaces 57211-21H00.

57211-21H01

$10.18

8

LEVER ASSY,CLUTCH This part replaces 57500-41G40.

57500-41G42

$64.23

9

LEVER, CLUTCH

57621-41G10

$31.29

10

BOLT

57431-41G00

$10.96

11

COLLAR

57532-41G00

$18.07

12

NUT

08319-3106A

$2.01

13

SWITCH ASSY, CLUTCH

57560-41G20

$20.93

14

.SCREW,CLUTCH SWITCH This part replaces 57562-41G20.

57562-41G21

$7.63

15

..BOLT

01547-0620B

$2.43

16

NUT, CABLE ADJUSTER

57641-33E21

$46.38

17

SPRING

57644-33E00

$8.54

18

SCREW, SPRING

57642-33E00

$4.53

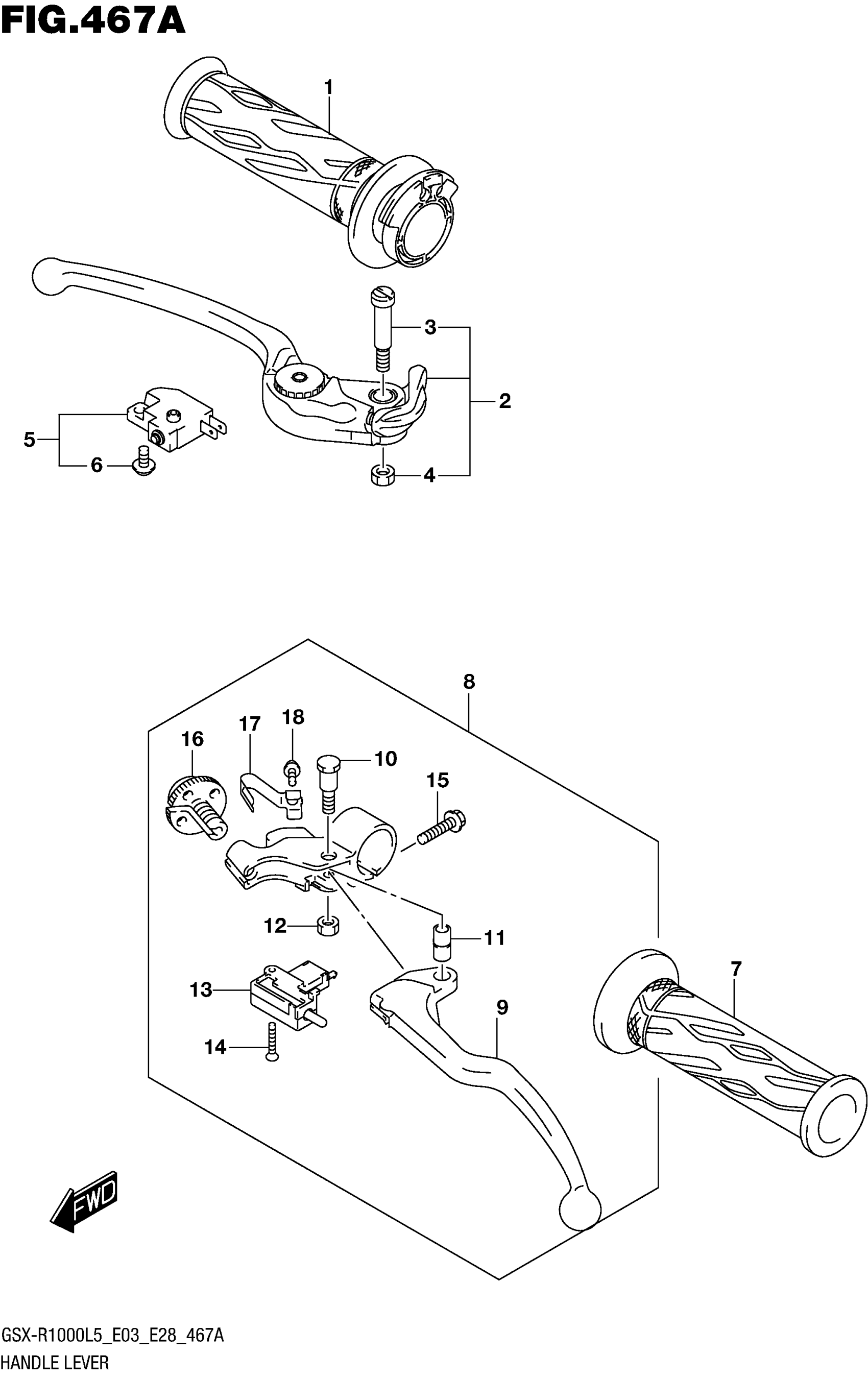

Suzuki GSX-R1000L5 (2015) HANDLE LEVER Diagram
