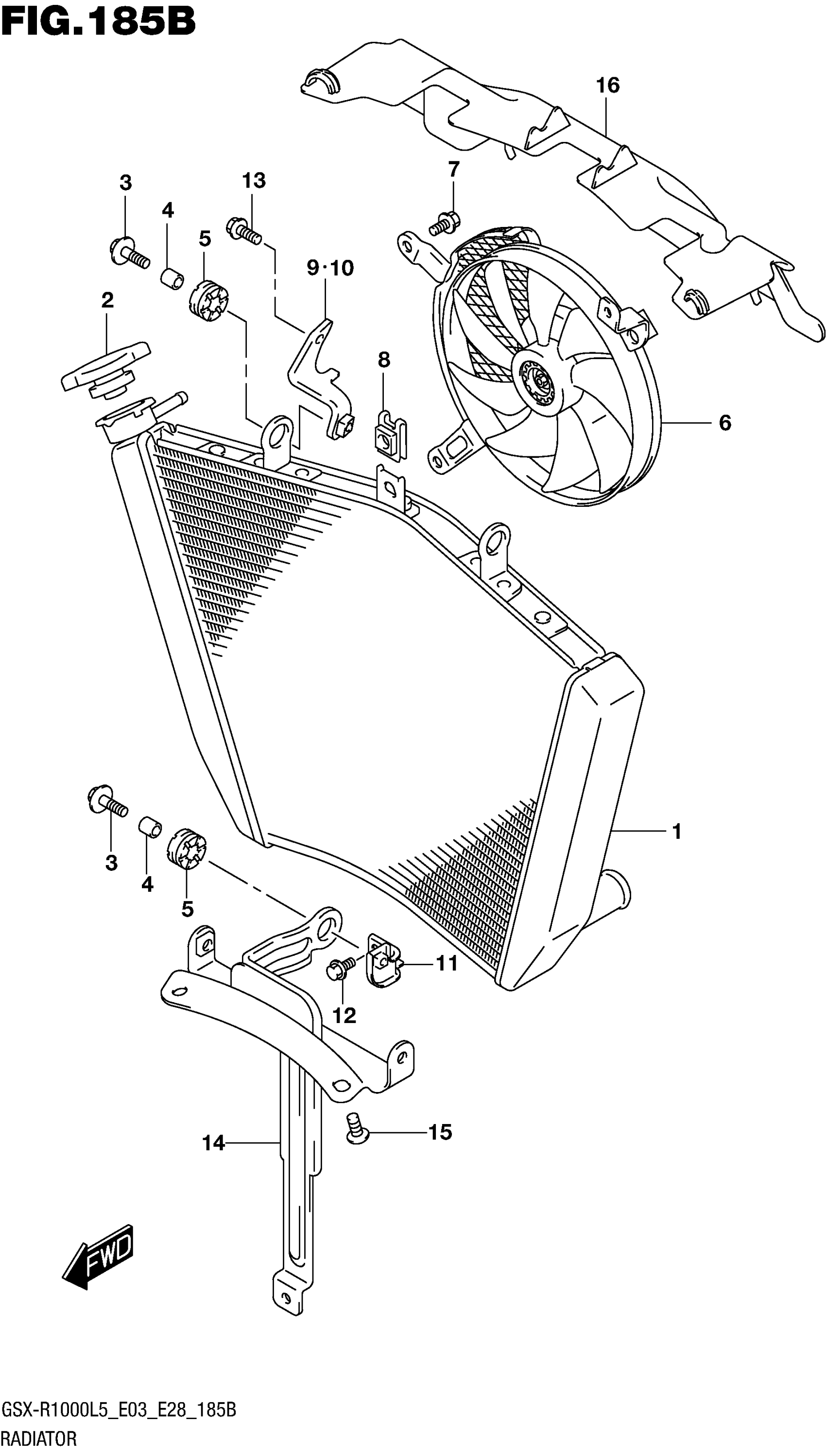

Suzuki GSX-R1000L5 (2015) RADIATOR (GSX-R1000L5 E28) Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-47H10

$1,263.88

2

CAP

17730-08J00

$38.90

3

BOLT (6X25)

09118-06097

$2.50

4

SPACER (6.5X10X12)

09180-06290

$2.01

5

CUSHION

09320-10051

$2.81

6

FAN ASSY, RADIATOR

17800-47H00

$777.15

7

BOLT, FAN ASSY

17711-08J00

$4.46

8

NUT, FAN ASSY

17712-40F00

$4.42

9

BRACKET, RADIATOR RH

17741-47H00

$19.32

10

BRACKET, RADIATOR LH

17742-47H00

$19.32

11

BRACKET, RADIATOR & OIL COOLER

17750-47H10

$12.75

12

BOLT

01550-0612A

$1.97

13

BOLT

01550-0616A

$1.97

14

BRACKET, RADIATOR SUPPORT

17790-47H00

Unavailable

15

BOLT (6X10)

09103-06307

$3.57

16

SHIELD, RADIATOR HEAT

17771-47H00

Unavailable
