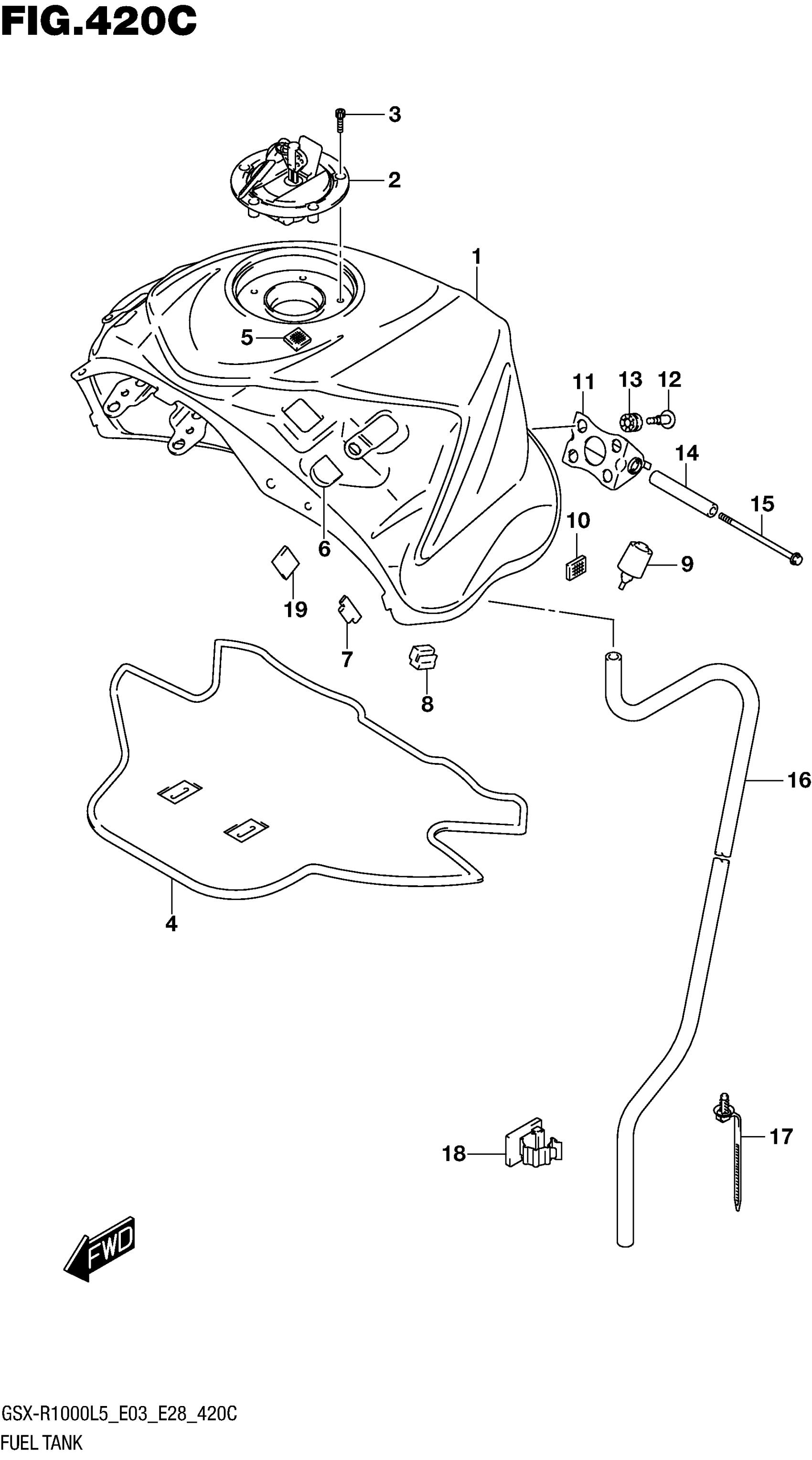

Suzuki GSX-R1000L5 (2015) FUEL TANK (GSX-R1000L5 E33) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLUE) | FOR YSF

44100-47H50-YSF

$1,260.97

1

TANK ASSY, FUEL (RED) | FOR AGQ

44100-47H21-YVZ

Unavailable

1

TANK ASSY, FUEL (BLACK) | FOR AR4

44100-47H21-YVB

Unavailable

2

CAP SET,FUEL TA This part replaces 44200-16870.

44200-16872

$155.42

3

BOLT (5X20)

09106-05017

$2.83

4

SHIELD, FUEL TANK HEAT

44191-47H00

Unavailable

5

FASTENER, COVER FRONT

44572-44G00

$10.18

6

CUSHION

09329-18001

$1.91

7

CUSHION,FUEL TANK COVER This part replaces 44276-21H00.

44276-21H01

$5.80

8

CUSHION, FUEL TANK SIDE

44541-41G00

$5.98

9

CUSHION,FUEL TANK RR

44542-41G00

$7.69

10

FASTENER, COVER SIDE

44572-13G00

$11.07

11

BRACKET,FUEL TANK This part replaces 44530-41G00.

44530-41G01

$40.55

12

SCREW (6X22)

09139-06191

$4.03

13

CUSHION

09320-08071

$3.25

14

SPACER, JOINT

44561-18G00

$16.96

15

BOLT (6X110)

09106-06119

$5.76

16

HOSE, DRAIN

44423-47H00

Unavailable

17

CLAMP (L:154)

09407-17403

$4.91

18

CLAMP

09403-14311

$5.33

19

CUSHION

61544-94500

$1.68
