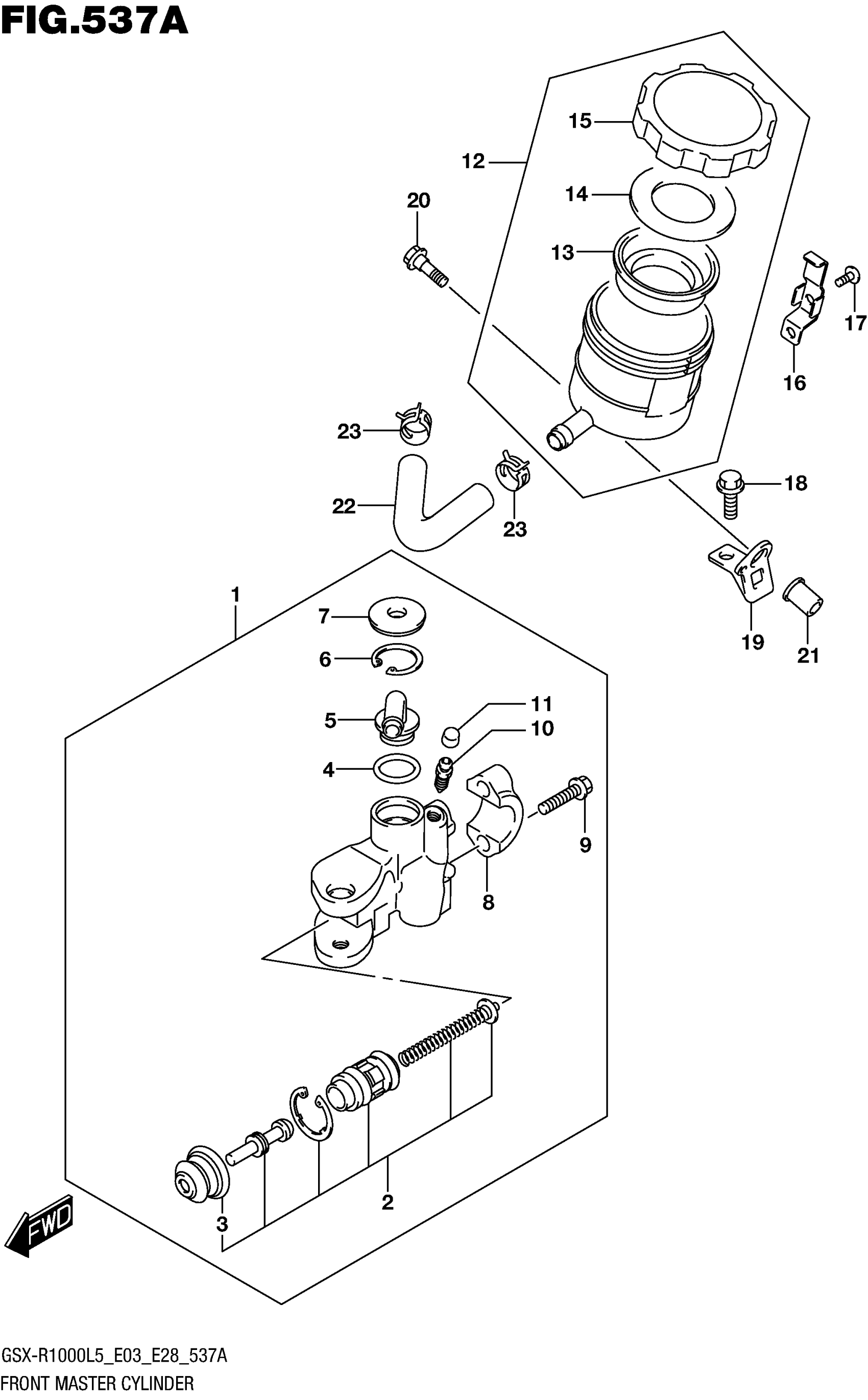

Suzuki GSX-R1000L5 (2015) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,FRONT MASTER

59600-47H00

$219.75

2

PISTON/CUP SET

59600-01820

$95.22

3

BOOT

59666-29G00

$13.93

4

O RING

69686-34200

$2.80

5

CONNECTOR

59672-17C00

$8.52

6

CIRCLIP

69674-00B20

$3.73

7

COVER, DUST

59673-17C00

$7.92

8

HOLDER

59671-01H00

$20.83

9

BOLT

59675-02FA0

$3.49

10

BLEEDER

59121-01A00

$7.99

11

CAP, BLEEDER

59122-46H00

$4.17

12

TANK ASSY, RESERVOIR

59740-47H00

$76.75

13

DIAPHRAGM

59667-18441

$9.41

14

PLATE

59668-18441

$4.26

15

CAP

59669-07D00

$35.80

16

PLATE, TANK CAP

59743-17C00

$8.52

17

SCREW

02142-0410A

$1.22

18

BOLT (5X17)

09111-05006

$4.70

19

BRACKET,FR RESERVOIR TANK

59751-47H10

$15.02

20

BOLT

01547-0612A

$2.01

21

NUT

09159-05048

$6.61

22

HOSE,FRONT RESERVOIR TANK

59731-47H00

$15.12

23

CLAMP, HOSE

59735-17C00

$4.51
