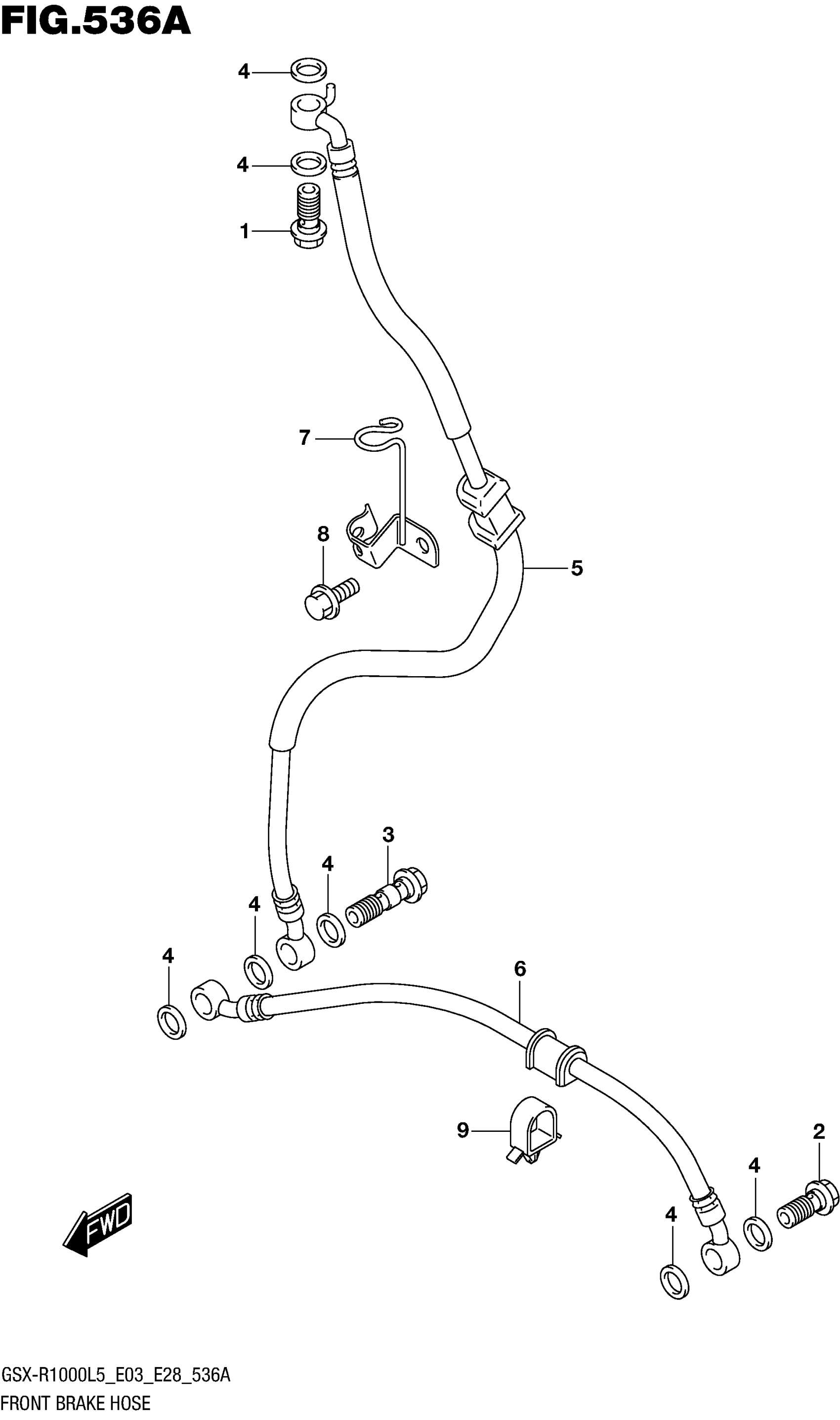

Suzuki GSX-R1000L5 (2015) FRONT BRAKE HOSE Diagram

#

Description
Price

1

UNION

09360-10065

$8.92

2

UNION | LH

09360-10062

$6.43

3

UNION | RH

09360-10064

$6.43

4

WASHER (10X15X1.5)

09161-10009

$1.84

5

HOSE This part replaces 59480-47H10.

59480-47H11

$106.62

6

HOSE,FR BRAKE NO.2

59240-14J00

$116.65

7

CLAMP,FR BK HOSE NO.1

59260-47H00

$27.13

8

BOLT

01547-0612A

$2.03

9

CLAMP

09403-16412

$3.37
