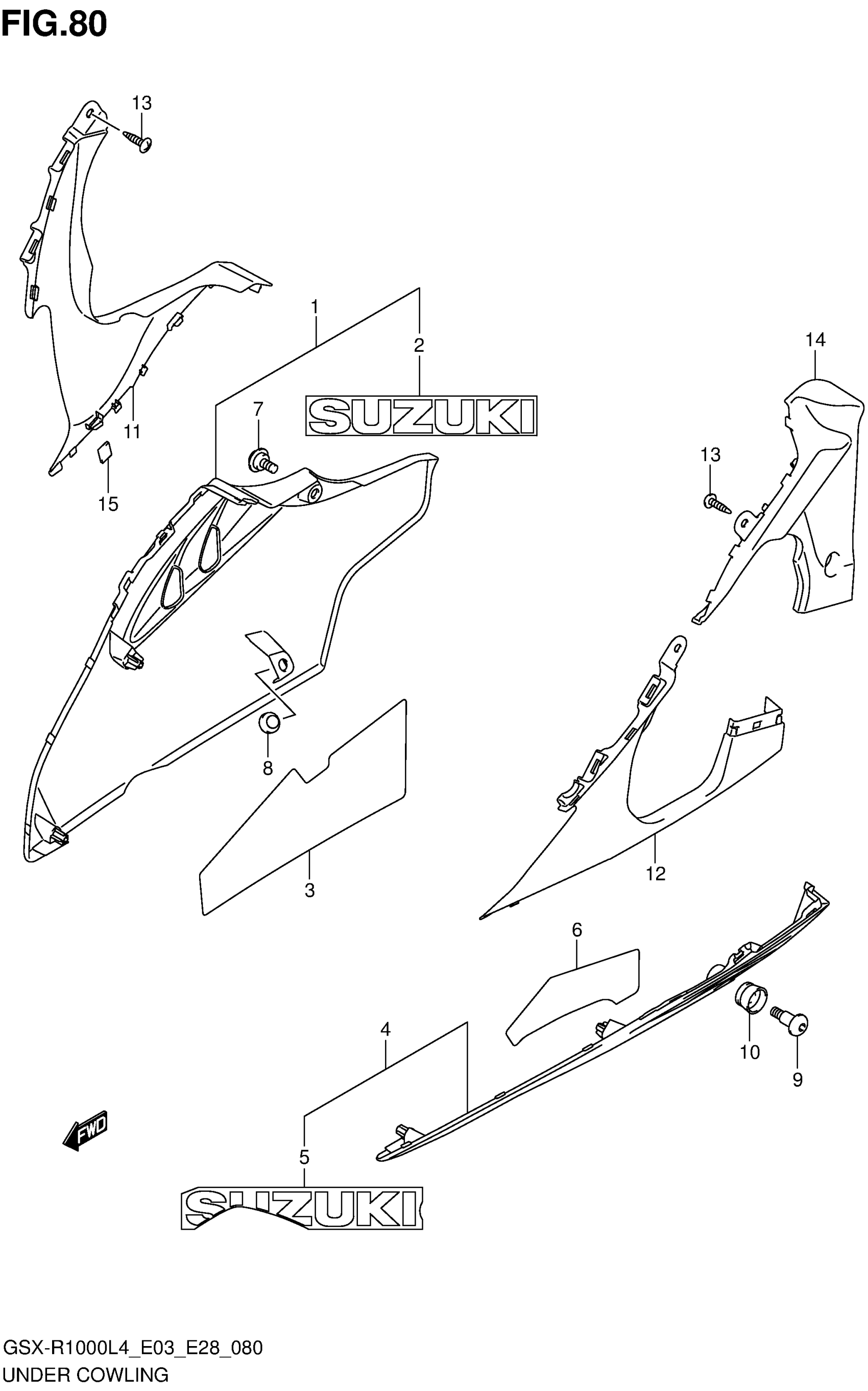

Suzuki GSX-R1000L4 (2014) UNDER COWLING Diagram

#

Description
Price

1

COWL, UNDER RH (WHITE) | FOR AGQ

94470-47H00-YWW

$329.27

1

COWL, UNDER RH (GRAY) | FOR AR4

94470-47H00-PGZ

Unavailable

2

EMBLEM, "SUZUKI" (BLACK)

68181-33C20-019

$26.75

3

SHIELD, HEAT FRONT RH

94476-47H00

$13.18

4

COWL, UNDER LH (WHITE) | FOR AGQ

94480-47H00-YWW

$329.27

4

COWL, UNDER LH (BLACK) | FOR AR4

94480-47H00-PGZ

$316.62

5

EMBLEM, "SUZUKI" (BLACK)

68191-47H00-019

$35.93

6

SHIELD, HEAT LH

94486-47H00

$22.97

7

SCREW,UNDER COWL,R (5X13)

94476-14J00

$4.49

8

CUSHION

09321-10018

$5.45

9

BOLT (6X20)

09139-06190

$4.17

10

CUSHION

94479-15H00

$4.48

11

COWL, SIDE LOWER RH

94474-47H00

$47.92

12

COWL, SIDE LOWER LH

94484-47H00

$47.03

13

SCREW

03541-0516A

$1.49

14

COVER, SIDE COWL LH

94482-47H00

$46.60

15

CUSHION (10X10X1)

63115-37H00

$3.64
