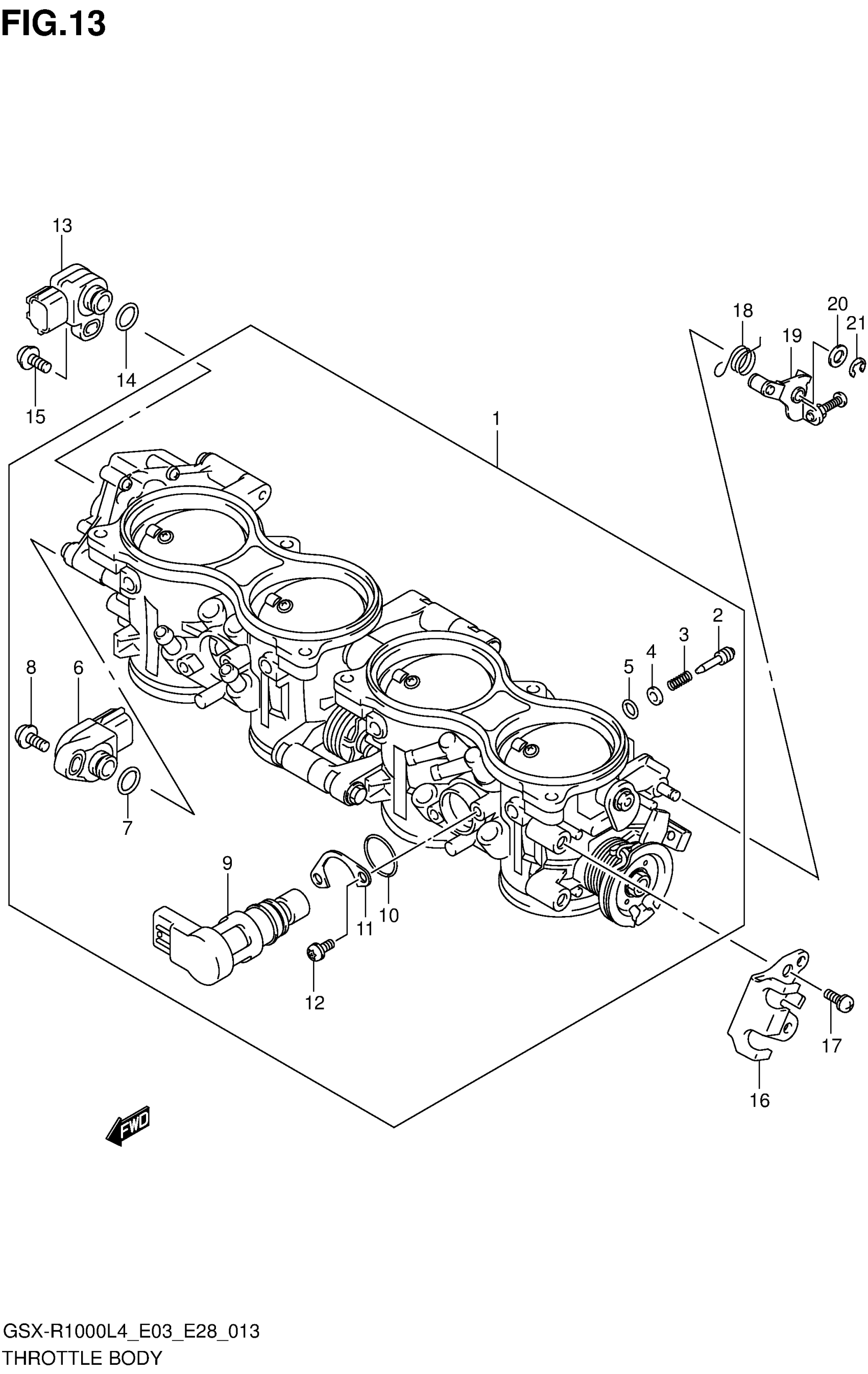

Suzuki GSX-R1000L4 (2014) THROTTLE BODY (GSX-R1000L4 E28) Diagram

#

Description
Price

1

THROTTLE BODY

13406-47H20

$2,702.77

2

SCREW, AIR ADJUST

13269-18G00

$11.83

3

SPRING

13271-43E00

Unavailable

4

WASHER

13291-26E00

$2.93

5

O RING

13295-26E00

$4.34

6

SENSOR ASSY, MAIN

13580-18G00

$205.80

7

O RING

13575-40F00

$4.09

8

SCREW

13605-40F00

$3.71

9

.VALVE ASSY, ISC This part replaces 18117-15H11.

18117-15H12

$362.80

10

O RING

18119-05H00

$3.95

11

PLATE

13428-15H00

Unavailable

12

SCREW

13605-15H00

$7.12

13

SENSOR ASSY, SUB

13580-47H00

$259.07

14

O RING

13575-40F00

$4.09

15

SCREW

13605-40F00

$3.71

16

PLATE, STAY

13565-21H00

$48.38

17

SCREW

13601-21H00

Unavailable

18

SPRING

13426-21H00

Unavailable

19

LEVER, LINK

13420-47H00

Unavailable

20

WASHER

13427-35F10

Unavailable

21

E CLIP

13424-35F10

$3.78
