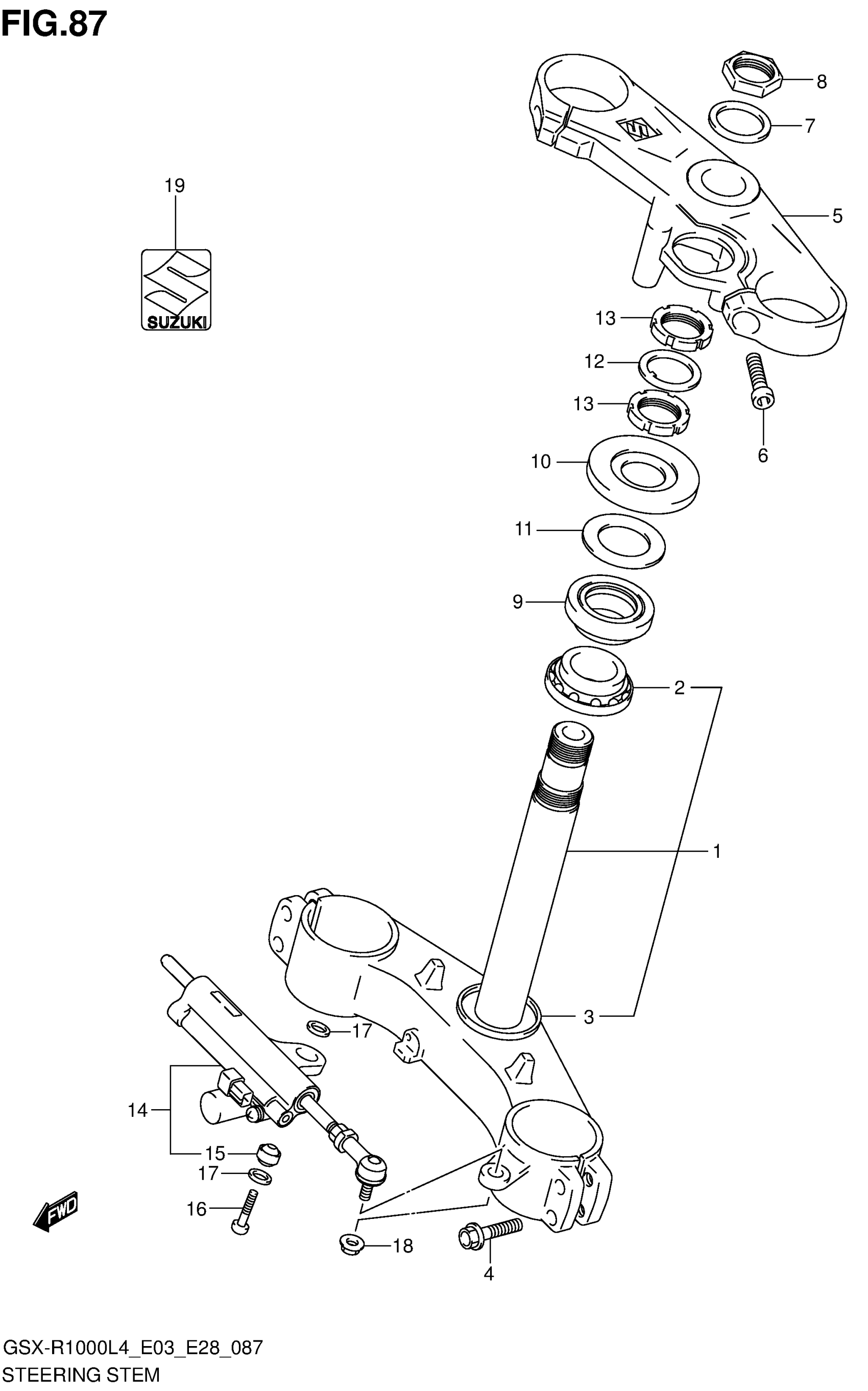

Suzuki GSX-R1000L4 (2014) STEERING STEM (GSX-R1000L4 E28) Diagram

#

Description
Price

1

STEM, STEERING

51410-47H20

$1,093.15

2

BEARING (30X55X17)

09267-30010

$48.11

3

SEAL, STEM LOWER

51644-12C00

$9.44

4

BOLT,HOLDER AXLE (8X40)

51328-27E30

$4.37

5

HEAD,STEERING STEM

51311-47H00

$357.90

6

BOLT, HOLDER (8X25)

51321-27E30

$4.97

7

WASHER,STEM HEAD

51354-01H00

$7.50

8

NUT

51353-01H00

$35.76

9

BEARING (30X55X17)

09267-30010

$48.11

10

COVER, STEERING UPPER

51643-41G00

$8.71

11

SEAL, UPPER DUST

51644-12C00

$9.44

12

WASHER, STEM

51641-33E00

$6.20

13

NUT, STEM

51631-33E00

$23.64

14

DAMPER ASSY,STE This part replaces 51750-21H20.

51750-21H21

$1,186.48

15

BEARING (8X17.5X11)

09269-08003

$51.13

16

BOLT (8X35)

09106-08130

$4.45

17

SEAL, PILLOWBALL DUST

64339-14101

$7.95

18

NUT

08319-3108A

$2.32

19

EMBLEM, "S"

68281-47HA0

$7.77
