Description

Price

1

LEVER, REAR CUSHION

62611-47H00

$32.52

2

SPACER, REAR

62317-27C10

$16.76

3

BOLT, LOWER

62658-47H00

$10.75

4

NUT

09159-12056

$7.37

5

SPACER, UPPER

62317-44B00

$21.03

6

BOLT, UPPER

62658-47H00

$10.75

7

NUT

09159-12056

$7.37

8

ROD SET,RR CUSH This part replaces 62600-47810.

62600-47811

$157.23

9

.BEARING This part replaces 09263-20074.

09263-20116

$31.15

10

SPACER, FRONT

62647-47H00

$35.28

11

BOLT,RR CUSHION ROD

62621-47H00

$14.27

12

NUT

09159-12056

$7.37

13

ABSORBER ASSY, REAR SHOCK (BLACK)

62100-47840-019

Unavailable

14

BEARING (17X24X32)

09263-17046

$41.45

15

SPACER, SHOCK ABS LOWER

62317-47H00

$20.45

16

BOLT (10X55) | UPPER

09103-10143

$4.52

17

NUT

09159-10115

$3.55

18

BOLT | LOWER

62313-47H00

$11.95

19

BRACKET,RR SHOCK ABSORBER UPR

62993-47H00

$135.35

20

NUT RR SHOCK ABS BRACKET

62994-47H00

$42.02

21

WASHER (12X34X1)

09160-12037

$3.83

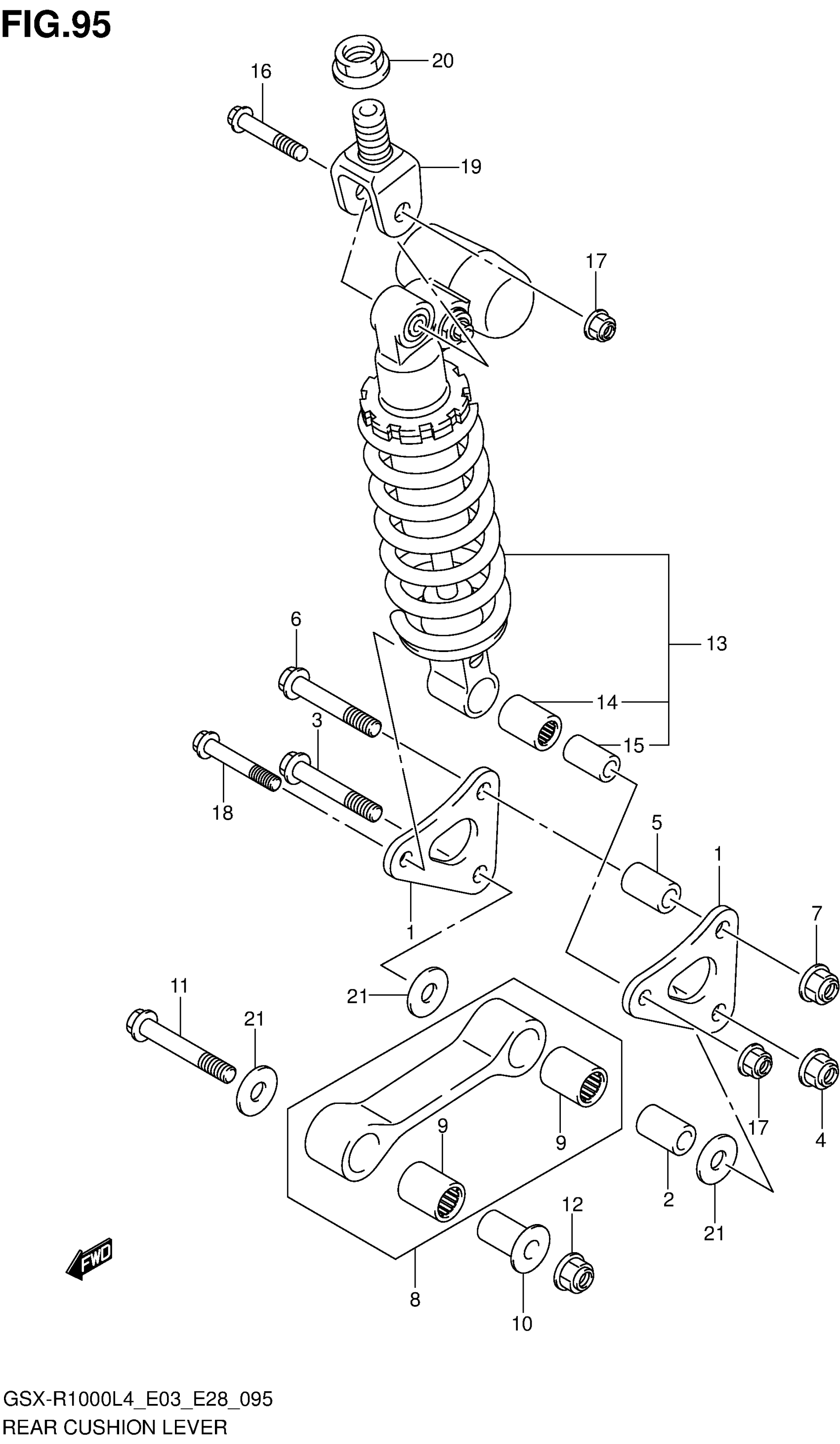

Suzuki GSX-R1000L4 (2014) REAR CUSHION LEVER (GSX-R1000L4 E28) Diagram

LEVER, REAR CUSHION

SPACER, REAR

BOLT, LOWER

NUT

SPACER, UPPER

BOLT, UPPER

NUT

ROD SET,RR CUSH This part replaces 62600-47810.

.BEARING This part replaces 09263-20074.

SPACER, FRONT

BOLT,RR CUSHION ROD

NUT

ABSORBER ASSY, REAR SHOCK (BLACK)

BEARING (17X24X32)

SPACER, SHOCK ABS LOWER

BOLT (10X55) | UPPER

NUT

BOLT | LOWER

BRACKET,RR SHOCK ABSORBER UPR

NUT RR SHOCK ABS BRACKET

WASHER (12X34X1)
