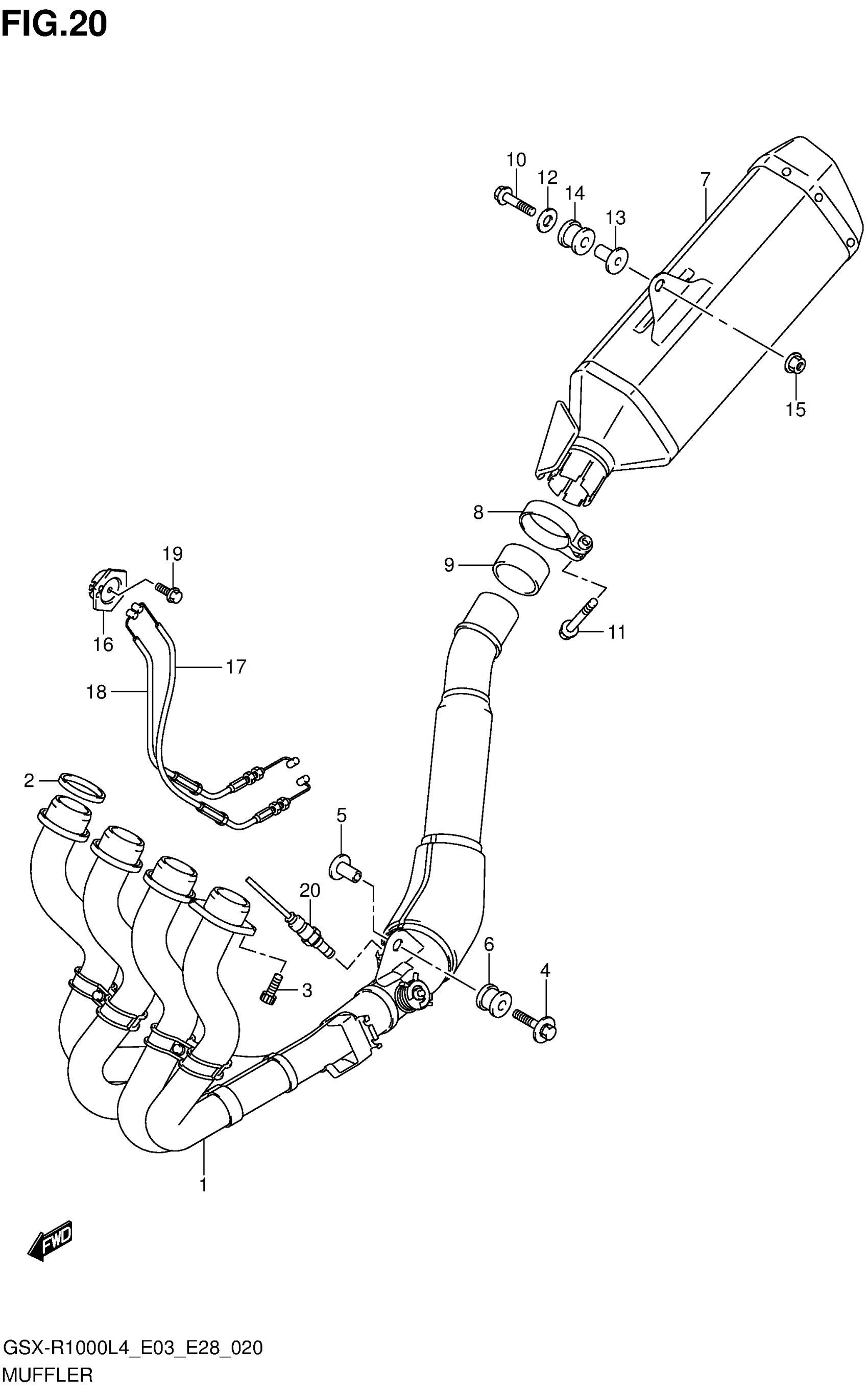

Suzuki GSX-R1000L4 (2014) MUFFLER (GSX-R1000L4 E28) Diagram

#

Description
Price

1

PIPE, EXHAUST

14100-47H10

$2,380.83

2

.GASKET,EXHAUST PIPE

14181-22D01

$10.11

3

BOLT

07130-0825A

$3.04

4

BOLT (8X45)

09118-08152-A05

$5.24

5

SPACER (8.6X12X24.2)

09180-08152

$5.83

6

CUSHION

09320-12077

$11.78

7

BODY, MUFFLER

14310-47H40-H01

$2,660.65

8

CLAMP,MUFFLER CONNECTOR

14459-47H00

$24.37

9

CONNECTOR,MUFFLER

14771-24F01

$31.05

10

BOLT (8X45)

09103-08358

$3.42

11

BOLT (8X40)

09103-08392

$3.62

12

WASHER (8.5X28X1.5)

09160-08142

$2.76

13

SPACER (8.6X12X24.2)

09180-08152

$5.83

14

CUSHION

09320-12048

$5.11

15

NUT

08361-2508A

$1.97

16

PULLEY, CONTROLLER

11269-18G01

$28.78

17

CABLE, EXH VALVE NO.1

11276-47H10

$69.55

18

CABLE, EXH VALVE NO.2

11277-47H10

$69.55

19

BOLT

01547-0516A

$1.55

20

SENSOR, OXYGEN

18213-18H10

$388.57
