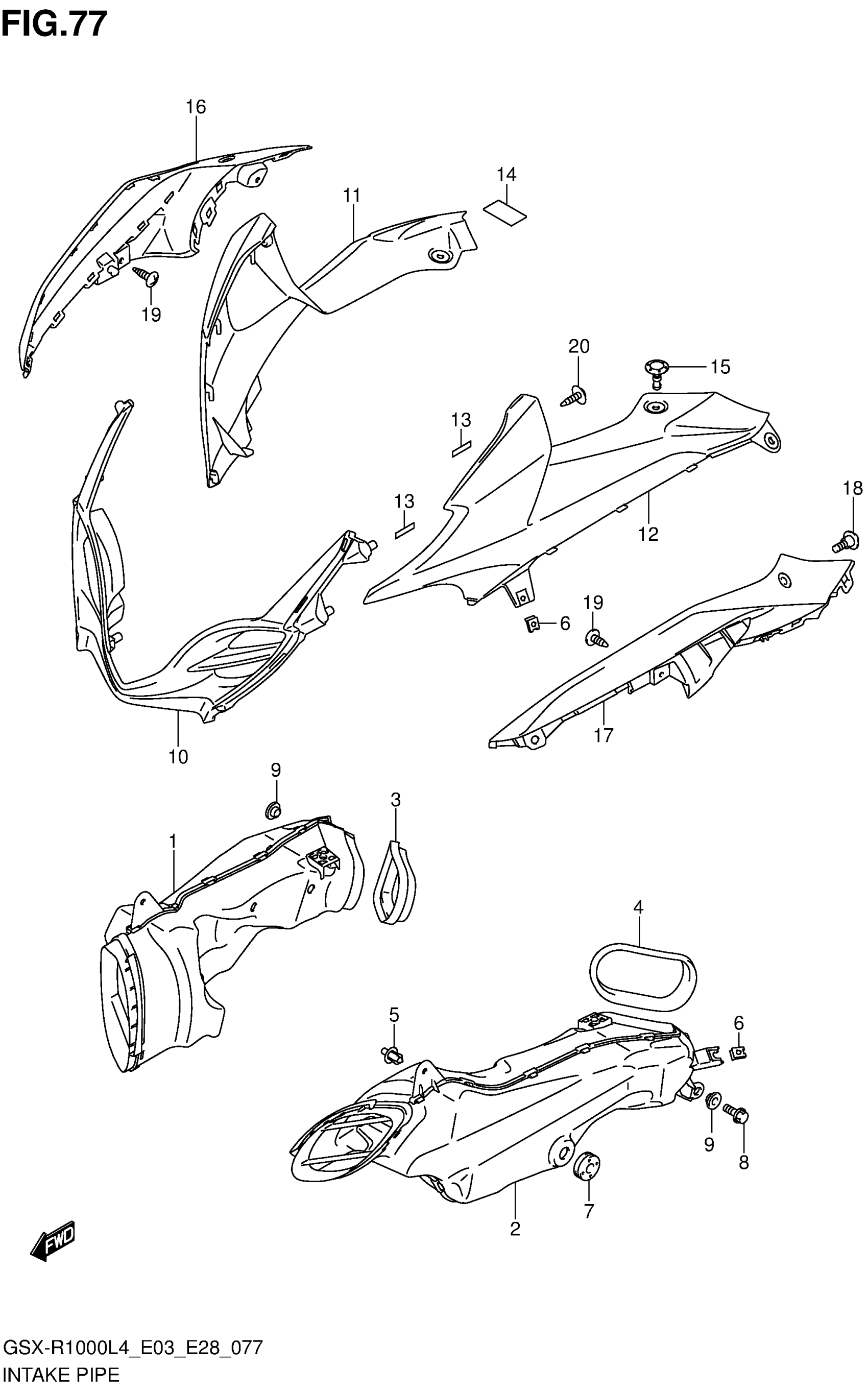

Find the part on the Intake Pipe diagram for your 2014 Suzuki GSX-R1000L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki GSX-R1000L4 Intake Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, AIR INTAKE RH

94420-47H00

1
Out of stock

2

PIPE, AIR INTAKE LH

94430-47H00

1
Out of stock

3

MOLDING, RH

94423-47H00

1
Out of stock

4

MOLDING, LH

94433-47H00

1
Out of stock

5

CLIP (BLACK)

09409-06314-5PK

2
Out of stock

6

NUT

09148-05052

4
Out of stock

7

CUSHION

09320-08028

2
Out of stock

8

BOLT

09103-06310

1
Out of stock

9

WASHER

09169-06082

2
Out of stock

10

COVER, INTAKE FRONT (BLUE) | FOR AGQ

94671-47H10-YHG

1
Out of stock

10

COVER, INTAKE FRONT (SILVER) | FOR AR4

94671-47H10-YKV

1
Out of stock

11

COVER, INTAKE RH (BLUE) | FOR AGQ

94672-47H10-YSF

1
Out of stock

11

COVER, INTAKE RH (BLACK) | FOR AR4

94672-47H10-YVB

1
Out of stock

12

COVER, INTAKE LH (BLUE) | FOR AGQ

94682-47H10-YSF

1
Out of stock

12

COVER, INTAKE LH (BLACK) | FOR AR4

94682-47H10-YVB

1
Out of stock

13

TAPE

94443-06G00

4
Out of stock

14

PROTECTOR (30X80X1.0) This part replaces 33652-13E00.

33652-29F00

1
Out of stock

15

CLIP

94479-35F00

2
Out of stock

16

COWL, SIDE UPPER RH (BLUE) | FOR AGQ

94473-47H00-YWW

1
Out of stock

16

COWL, SIDE UPPER RH (BLACK) | FOR AG4

94473-47H00-PGZ

1
Out of stock

17

COWL, SIDE UPPER LH (BLUE) | FOR AGQ

94483-47H00-YWW

1
Out of stock

17

COWL, SIDE UPPER LH (BLACK) | FOR AG4

94483-47H00-PGZ

1
Out of stock

18

SCREW (5X16)

09139-05077

2
Out of stock

19

SCREW

03541-0516A

4
Out of stock

20

SCREW (5X12)

09132-05050

2
Out of stock
