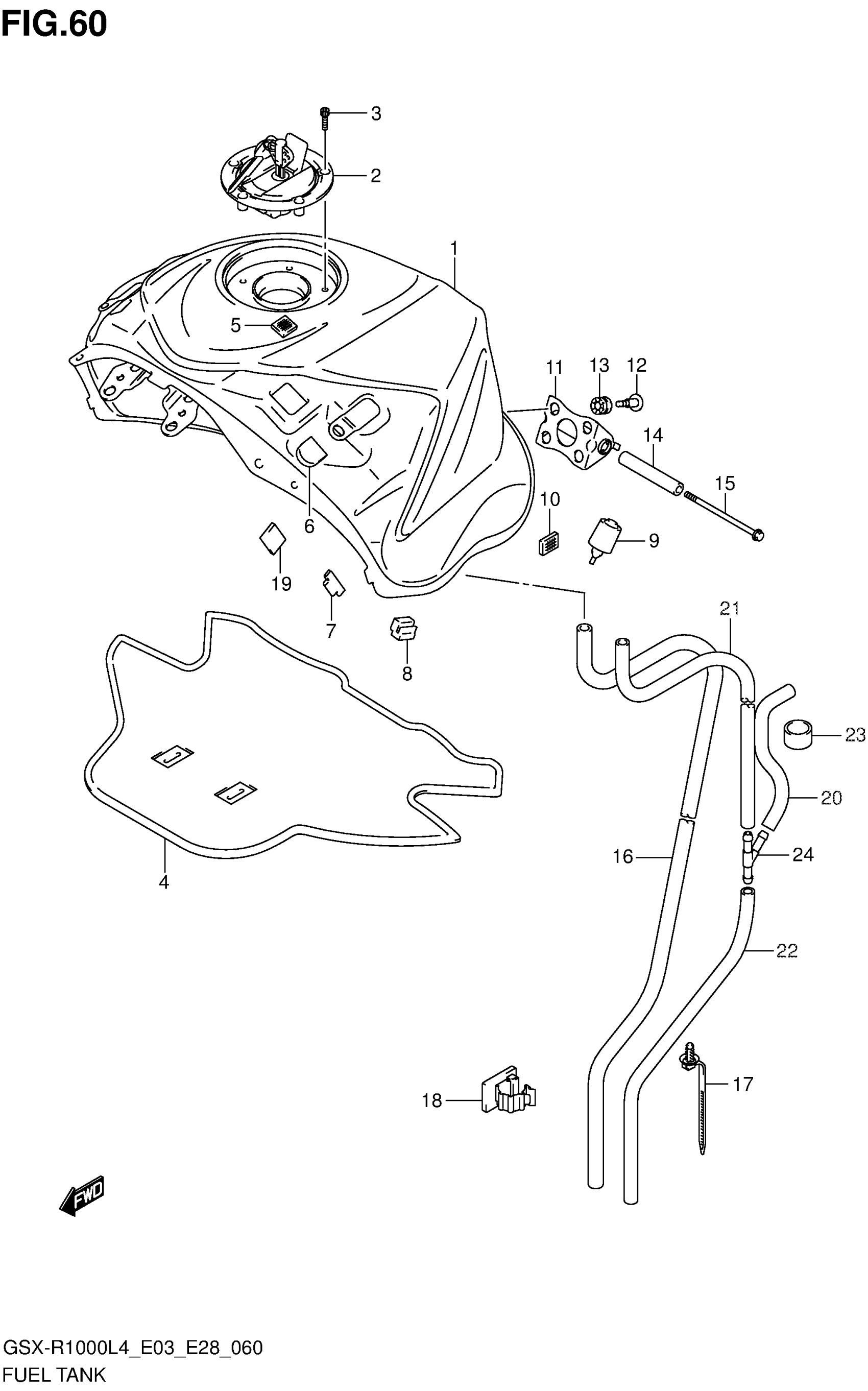

Suzuki GSX-R1000L4 (2014) FUEL TANK (GSX-R1000L4 E28) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLUE) | FOR AGQ

44100-47H01-YSF

$1,682.65

1

TANK ASSY, FUEL (BLACK) | FOR AR4

44100-47H01-YVB

$1,654.17

2

CAP SET,FUEL TA This part replaces 44200-16850.

44200-16852

$108.21

3

BOLT (5X20)

09106-05017

$2.80

4

SHIELD, FUEL TANK HEAT

44191-47H00

Unavailable

5

FASTENER, COVER FRONT

44572-44G00

$9.32

6

CUSHION

09329-18001

$1.89

7

CUSHION,FUEL TANK COVER This part replaces 44276-21H00.

44276-21H01

$5.46

8

CUSHION, FUEL TANK SIDE

44541-41G00

$5.47

9

CUSHION,FUEL TANK RR

44542-41G00

$7.04

10

FASTENER, COVER SIDE

44572-13G00

$10.13

11

BRACKET,FUEL TANK This part replaces 44530-41G00.

44530-41G01

$45.77

12

SCREW (6X22)

09139-06191

$3.69

13

CUSHION

09320-08071

$3.05

14

SPACER, JOINT

44561-18G00

$15.52

15

BOLT (6X110)

09106-06119

$5.21

16

HOSE, DRAIN

44423-47H00

Unavailable

17

CLAMP (L:154)

09407-17403

$4.63

18

CLAMP

09403-14311

$4.88

19

CUSHION

61544-94500

$1.22

20

HOSE,FUEL TANK BRTHR NO.3 This part replaces 44424-15H10.

44424-15H11

$15.48

21

HOSE, FUEL TANK BRTHR NO.1

44424-47H00

Unavailable

22

HOSE,FUEL TANK This part replaces 44424-47H10.

44424-47H11

$9.38

23

HOSE (12X16X600) | L:600->10

09352-12163-600

Unavailable

24

3 WAY

09367-06007

$3.17
