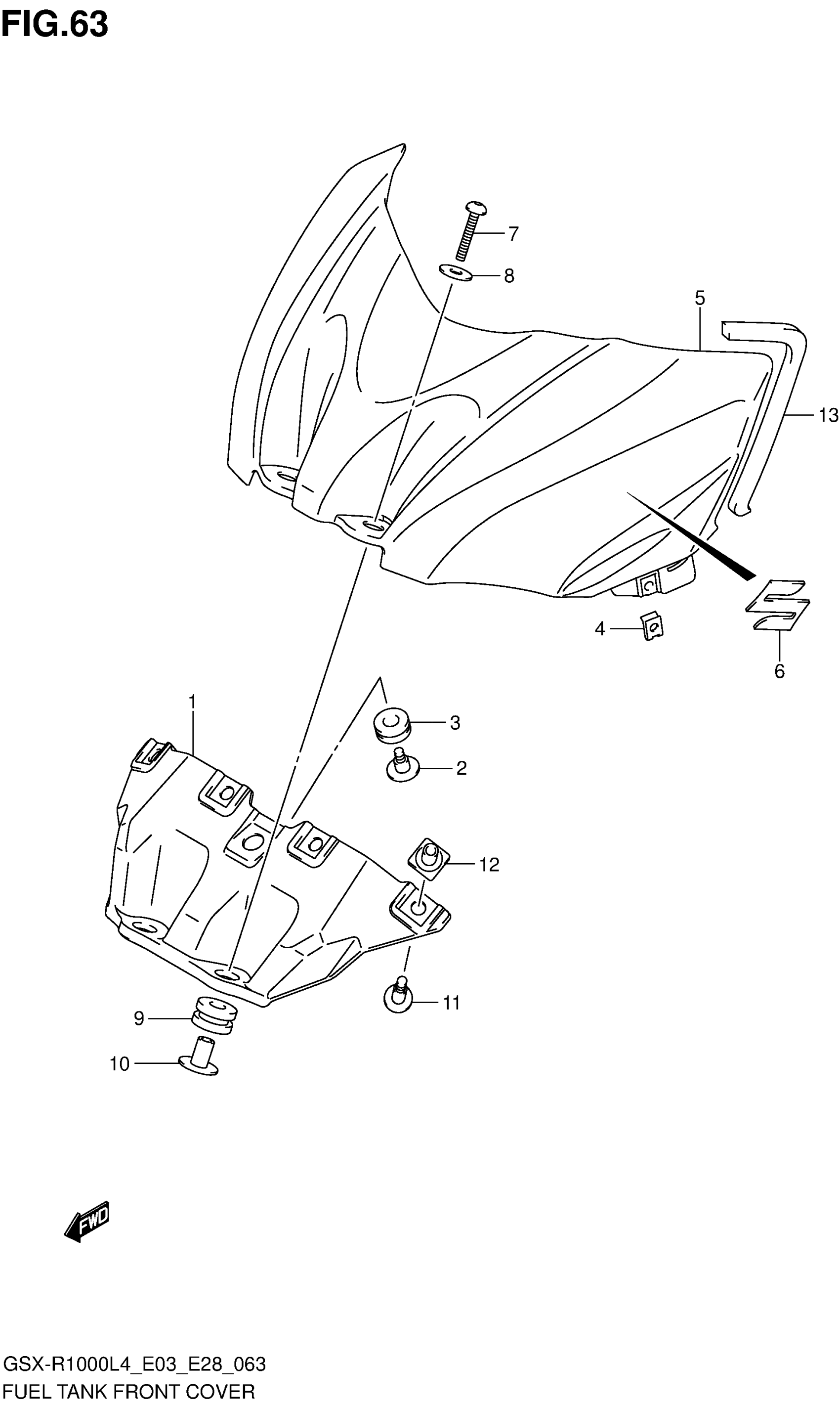

Suzuki GSX-R1000L4 (2014) FUEL TANK FRONT COVER Diagram

#

Description
Price

1

BRACKET, FRONT

44521-47H00

Unavailable

2

SCREW (5X16.4)

09139-05078

$3.49

3

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

4

NUT

09148-05052

$3.37

5

COVER, FRONT (BLUE) | FOR AGQ

44291-47H00-YSF

$327.07

5

COVER, FRONT (BLACK) | FOR AR4

44291-47H00-YVB

Unavailable

6

EMBLEM "S"

68111-47HA0

$40.44

7

SCREW (6X40)

09139-06105

$7.35

8

WASHER This part replaces 09160-06012.

09160-06054

$1.62

9

CUSHION (10X22X13)

09320-10050

$3.35

10

SPACER

44512-47H00

$12.82

11

SCREW (6X10)

09139-06181

$3.83

12

NUT

44523-47H00

$10.02

13

CUSHION

44277-37H00

$5.18
