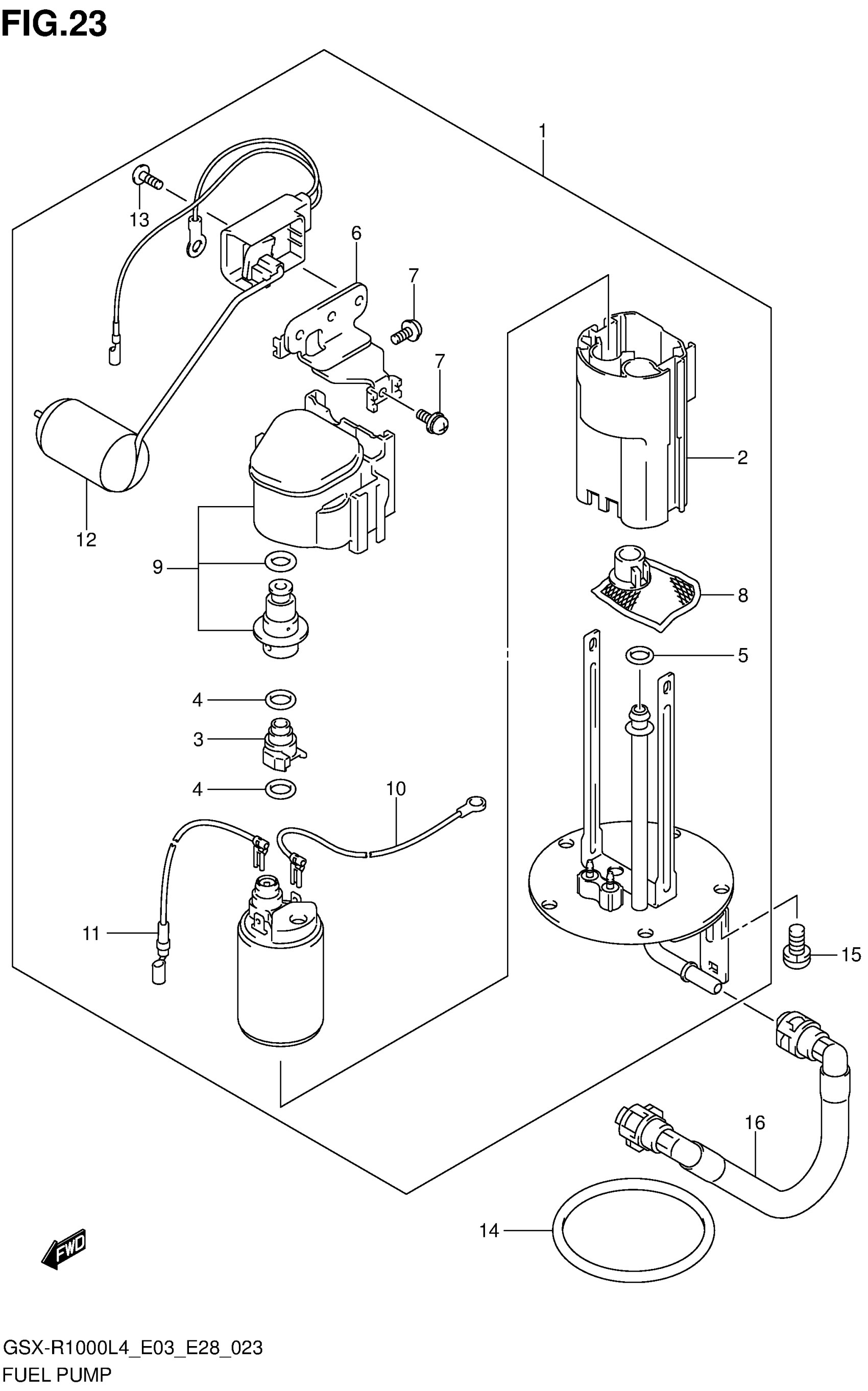

Suzuki GSX-R1000L4 (2014) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL This part replaces 15100-47H10.

15100-47H11

$861.13

2

CUP

15111-27G00

$42.43

3

JOINT

15112-05H00

$28.12

4

O RING

15113-05H00

$19.98

5

O RING

15113-35F00

$8.91

6

BRACKET, FUEL GAUGE

15181-47H00

Unavailable

7

SCREW

15116-10F00

$5.58

8

STRAINER, FUEL PUMP

15420-05H00

$41.17

9

REGULATOR, FUEL

15610-14J00

$171.30

10

WIRE, EARTH

15114-14J00

Unavailable

11

.WIRE,LEAD

15115-08J00

Unavailable

12

GAUGE ASSY, FUEL LEVEL

34810-47H01

$229.35

13

SCREW

15116-44H00

Unavailable

14

O-RING

15201-35F00

$27.60

15

BOLT

07120-0612A

$2.50

16

HOSE, FUEL

15810-47H10

$88.13
