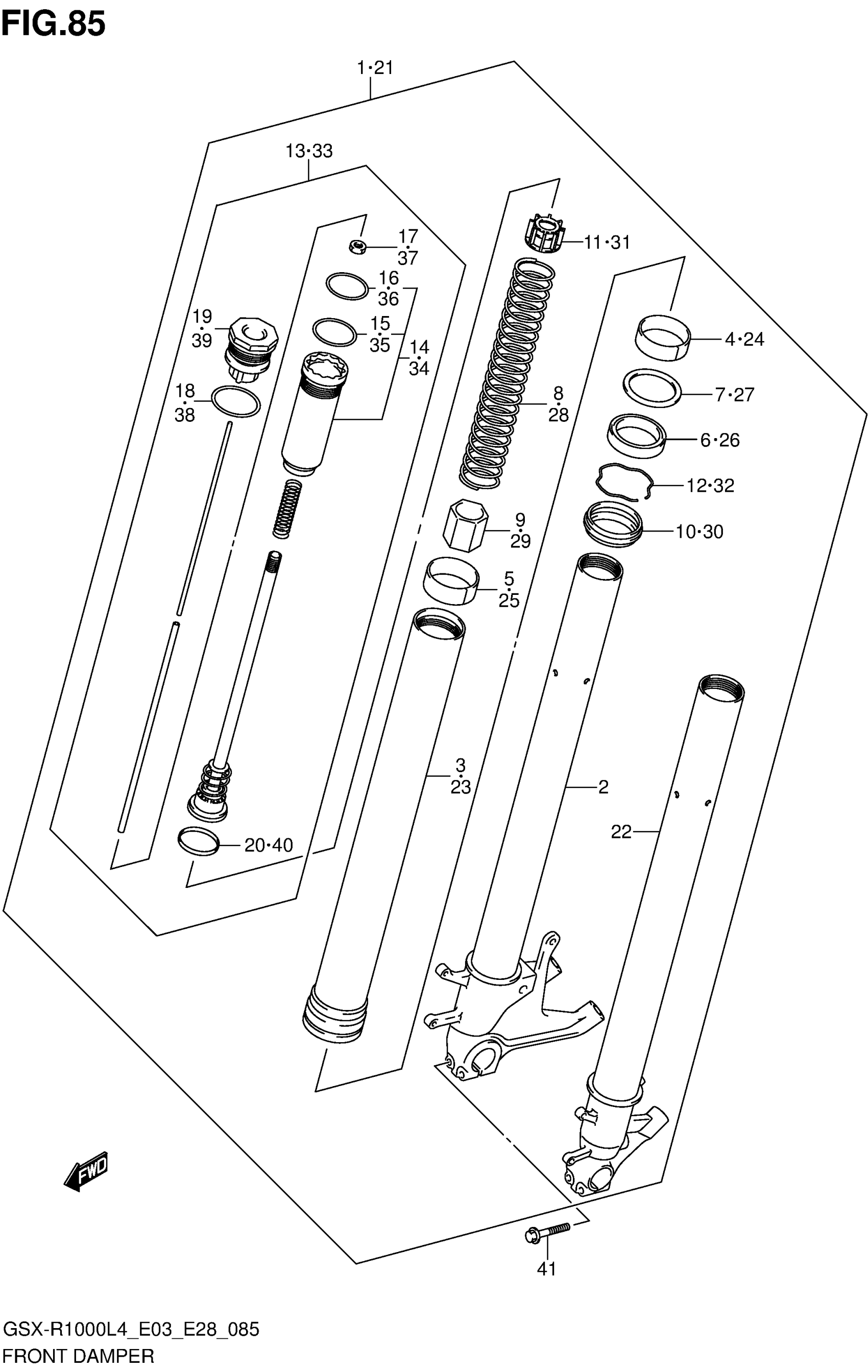

Suzuki GSX-R1000L4 (2014) FRONT DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-47H20

Unavailable

2

TUBE, INNER RH

51110-47H20

$861.08

3

TUBE, OUTER

51131-47H20

$651.70

4

.BUSH, GUIDE

51152-47H00

$14.20

5

BUSH, SLIDE

51152-47H10

$14.76

6

SEAL, OIL

51153-47H00

$26.91

7

SPACER, SEAL

51168-29G00

$6.52

8

SPRING

51171-47H20

Unavailable

9

COLLAR, SPRING

51176-47H20

$65.40

10

.SEAL, DUST

51173-27G00

$26.58

11

COLLAR, SPRING

51175-47H00

Unavailable

12

RING, STOPPER

51556-38B00

$7.22

13

ROD, PISTON

52110-47H20

Unavailable

14

CASE, ROD GUIDE

51174-47H20

Unavailable

15

RING, PISTON

51118-47H00

$20.25

16

O-RING

51187-47H10

$8.30

17

NUT

51827-29G00

Unavailable

18

..O-RING

51187-47H00

$6.93

19

BOLT

51189-47H20

$210.53

20

RING, PISTON

51118-47H20

$12.88

21

DAMPER ASSY, FRONT FORK LH

51104-47H20

Unavailable

22

TUBE, INNER LH

51120-47H20

$861.08

23

TUBE, OUTER

51131-47H20

$651.70

24

.BUSH, GUIDE

51152-47H00

$14.20

25

BUSH, SLIDE

51152-47H10

$14.76

26

SEAL, OIL

51153-47H00

$26.91

27

SPACER, SEAL

51168-29G00

$6.52

28

SPRING

51171-47H20

Unavailable

29

COLLAR, SPRING

51176-47H20

$65.40

30

.SEAL, DUST

51173-27G00

$26.58

31

COLLAR, SPRING

51175-47H00

Unavailable

32

RING, STOPPER

51556-38B00

$7.22

33

ROD, PISTON

52110-47H20

Unavailable

34

CASE, ROD GUIDE

51174-47H20

Unavailable

35

RING, PISTON

51118-47H00

$20.25

36

O-RING

51187-47H10

$8.30

37

NUT

51827-29G00

Unavailable

38

..O-RING

51187-47H00

$6.93

39

BOLT

51189-47H20

$210.53

40

RING, PISTON

51118-47H20

$12.88

41

BOLT

51321-36F00

$5.95
