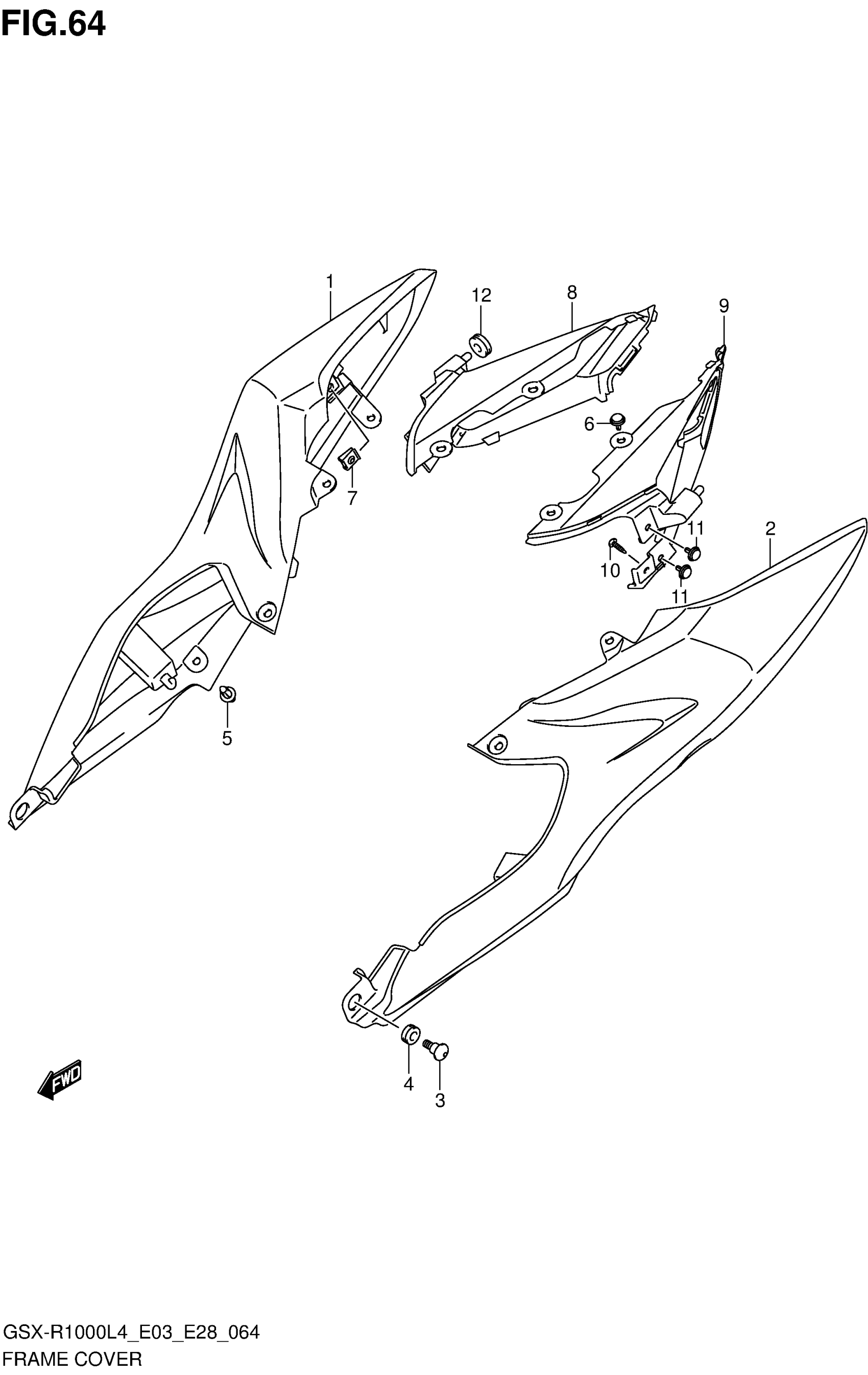

Suzuki GSX-R1000L4 (2014) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE) | FOR AGQ

47111-47H00-YWW

$186.88

1

COVER, FRAME RH (BLACK) | FOR AR4

47111-47H00-YVB

$183.43

2

COVER, FRAME LH (WHITE) | FOR AGQ

47211-47H00-YWW

$186.88

2

COVER, FRAME LH (BLACK) | FOR AR4

47211-47H00-YVB

$186.88

3

SCREW, FRONT

47133-43H00

$6.03

4

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

5

CLIP (BLACK)

09409-06314-5PK

$2.78

6

CLIP

09409-06328

$3.23

7

NUT

09148-05038

$1.97

8

COVER, FRAME REAR RH (BLACK) | FOR AGQ

47611-47H00-YVB

$108.25

8

COVER, FRAME REAR RH (BLACK) | FOR AR4

47611-47H00-YKV

$111.55

9

COVER, FRAME REAR LH (BLACK) | FOR AGQ

47621-47H00-YVB

$108.25

9

COVER, FRAME REAR LH (BLACK) | FOR AR4

47621-47H00-YKV

$109.48

10

SCREW

03541-0512A

$1.49

11

CLIP

09409-06328

$3.23

12

CUSHION

09320-06504

$4.96
