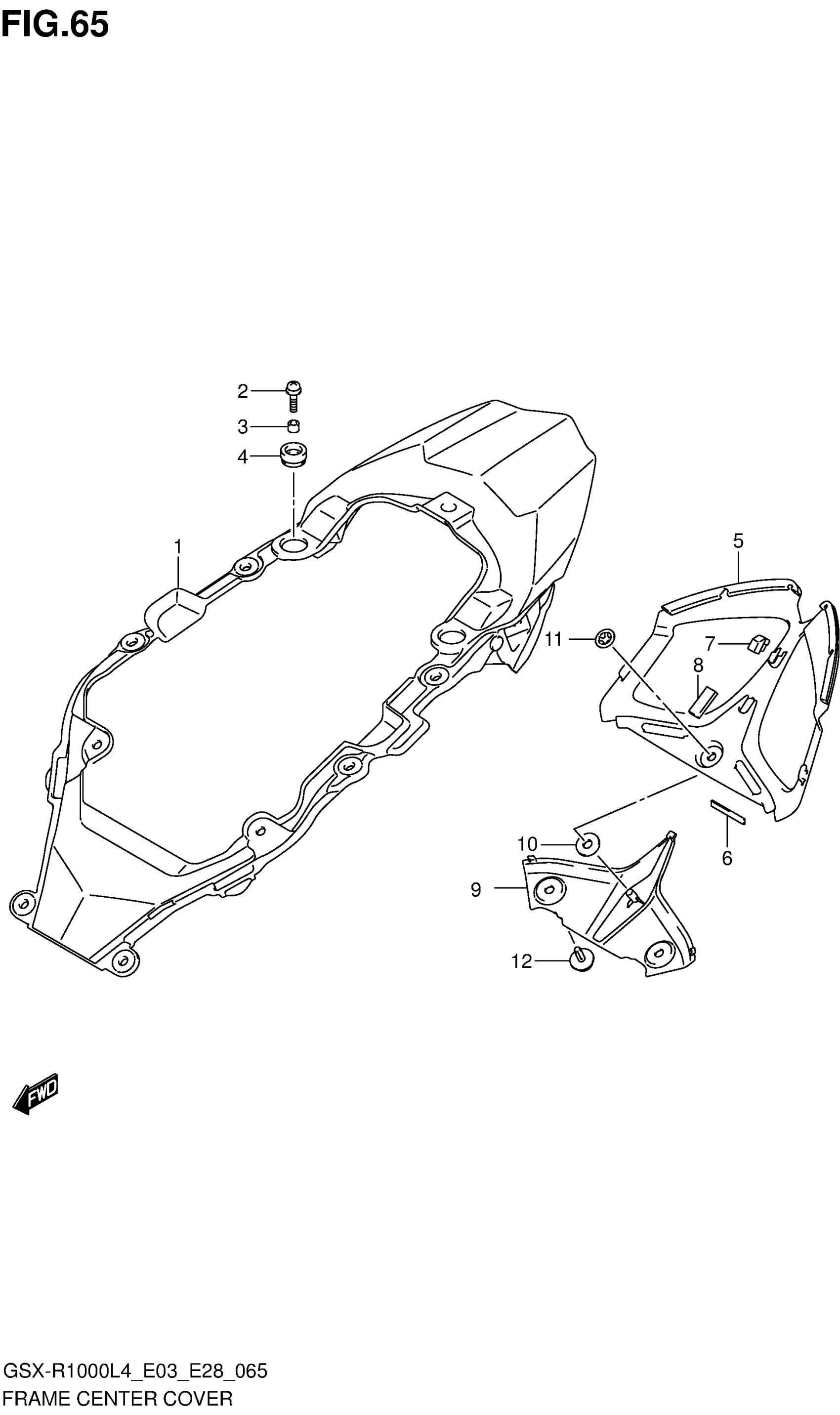

Suzuki GSX-R1000L4 (2014) FRAME CENTER COVER Diagram

#

Description
Price

1

COVER, FRAME CENTER (BLUE) | FOR AGQ

47310-47H00-YSF

$337.75

1

COVER, FRAME CENTER (BLACK) | FOR AR4

47310-47H00-YVB

$381.80

2

SCREW (6X16)

09136-06056

$2.17

3

SPACER (6.5X10X7)

09180-06283

$1.89

4

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.80

5

COVER, REAR CENTER (BLACK) | FOR AGQ

47911-47H00-YVB

$105.83

5

COVER, REAR CENTER (BLACK) | FOR AR4

47911-47H00-YKV

$106.98

6

CUSHION

47912-47H00

$6.01

7

CUSHION

47913-37H00

$6.23

8

CUSHION

94413-08F00

$5.02

9

COVER, REAR LOWER (WHITE) | FOR AGQ

47921-47H00-YWW

$93.98

9

COVER, REAR LOWER (BLACK) | FOR AR4

47921-47H00-YVB

$93.77

10

CUSHION

09320-06501

$3.92

11

NUT This part replaces 09148-05006.

09148-05012

$1.77

12

CLIP

09409-06328

$2.92
