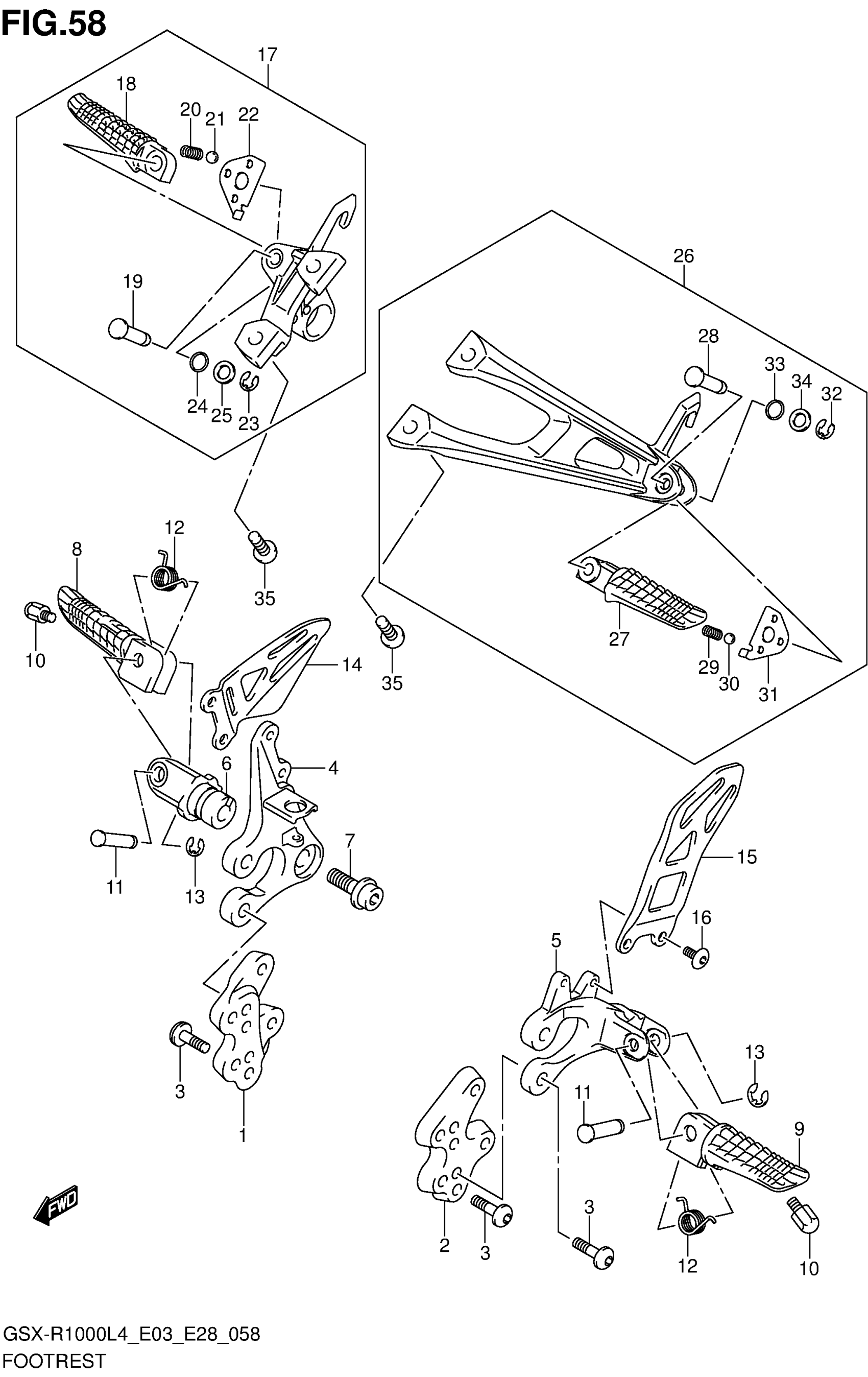

Suzuki GSX-R1000L4 (2014) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT NO.1 RH

43541-47H00

$66.40

2

BRACKET, FRONT NO.1 LH

43551-47H00

$63.97

3

BOLT (8X23)

09106-08186

$3.42

4

BRACKET, FRONT NO.2 RH

43511-47H00

$143.67

5

BRACKET, FRONT NO.2 LH

43521-47H10

$137.68

6

HOLDER, FOOTREST

43531-41G10

$99.17

7

BOLT (10X28)

09106-10064

$4.90

8

BAR, FOOTREST RH

43516-37H00

$48.23

9

BAR, FOOTREST LH

43526-37H00

$39.68

10

BOLT, BANK SENSOR

43576-48B02

$7.48

11

PIN

09208-08018

$2.79

12

SPRING

09448-14037

$3.16

13

E RING

08332-1106A

$1.49

14

GUARD, FOOTREST RH

43571-47H00

$80.03

15

GUARD, FOOTREST LH

43576-47H10

$78.55

16

SCREW,FOOTREST GUARD,L This part replaces 43577-35F00.

43577-35F10

$3.98

17

FOOTREST ASSY,P This part replaces 43600-47H10.

43600-47H30

$223.95

18

BAR,PILLION FOOTREST,R This part replaces 43611-37H00.

43611-37H20

$44.65

19

PIN

09208-08014

$4.32

20

SPRING

09440-05005

$1.58

21

BALL

06111-07004

$1.49

22

.PLATE,PILLION FOOTREST,R

43816-47H00

$7.53

23

E RING

08332-1106A

$1.49

24

O RING

18592-68K00

$4.82

25

WASHER

14289-37H00

$5.23

26

FOOTREST ASSY,P This part replaces 43700-47H10.

43700-47H30

$235.15

27

BAR,PILLION FOOTREST,L This part replaces 43621-37H00.

43621-37H20

$43.18

28

PIN

09208-08014

$4.32

29

SPRING

09440-05005

$1.58

30

BALL

06111-07004

$1.49

31

.PLATE,PILLION FOOTREST,L

43826-47H00

$7.27

32

E RING

08332-1106A

$1.49

33

O RING (D:2.4,ID:6.9)

18592-68K00

$4.82

34

WASHER

14289-37H00

$5.23

35

BOLT (8X23)

09106-08186

$3.42
