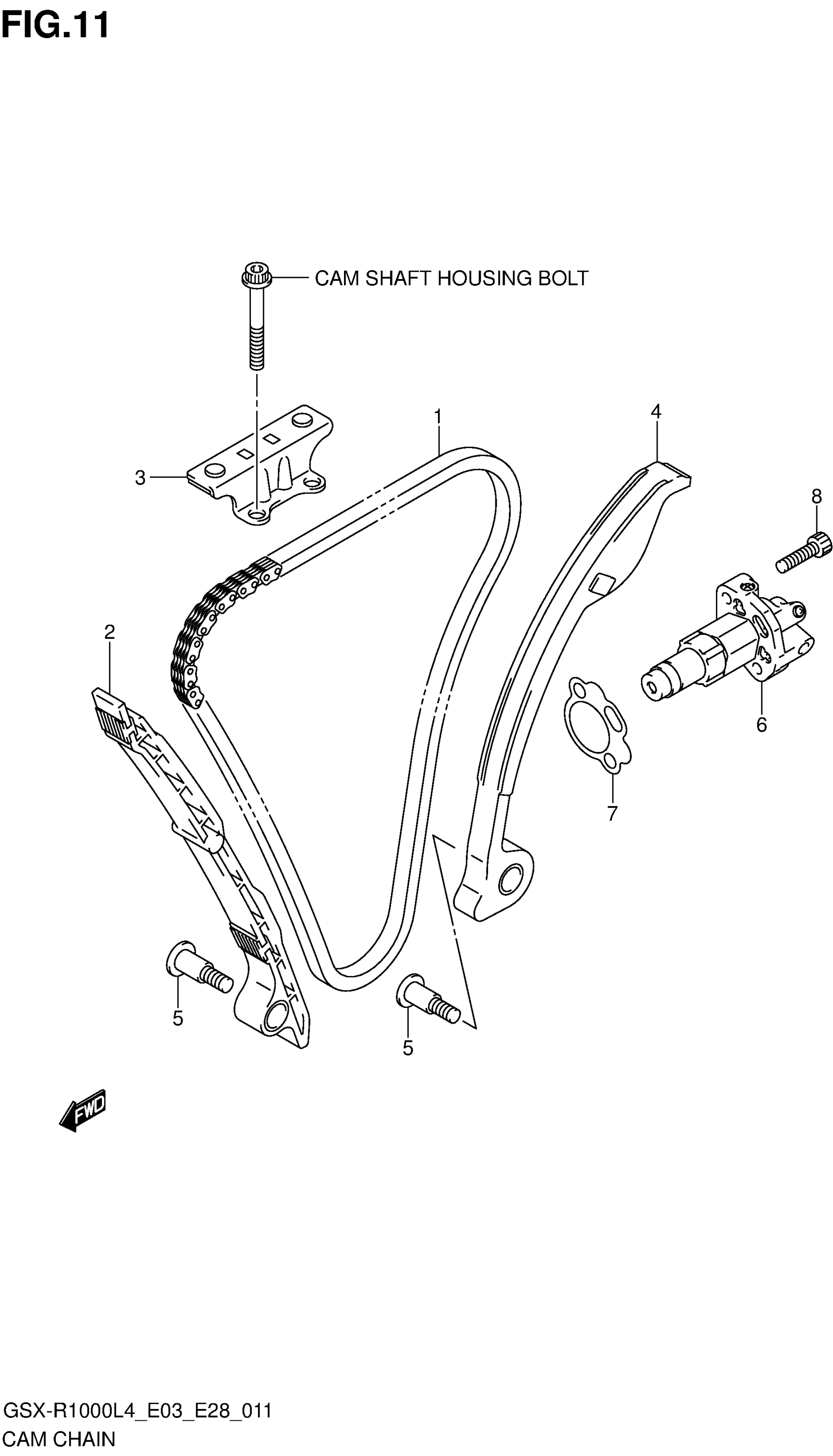

Suzuki GSX-R1000L4 (2014) CAM CHAIN Diagram

#

Description

Price

1

CHAIN,CAMSHAFT DRIVE

12760-40F01

$153.77

2

GUIDE,CAM CHAIN This part replaces 12771-47H00.

12771-47H01

$42.43

3

GUIDE,CAM CHAIN NO.2 This part replaces 12782-35F10.

12782-35F11

$22.80

4

TENSIONER, CAM CHAIN This part replaces 12811-47H00.

12811-47H01

$82.67

5

BOLT

12812-31G00

$4.58

6

ADJUSTER ASSY, TENSIONER

12830-47H00

$310.27

7

GASKET, ADJUSTER

12837-02H00

$6.46

8

BOLT (6X25)

07130-0625A

$2.62
