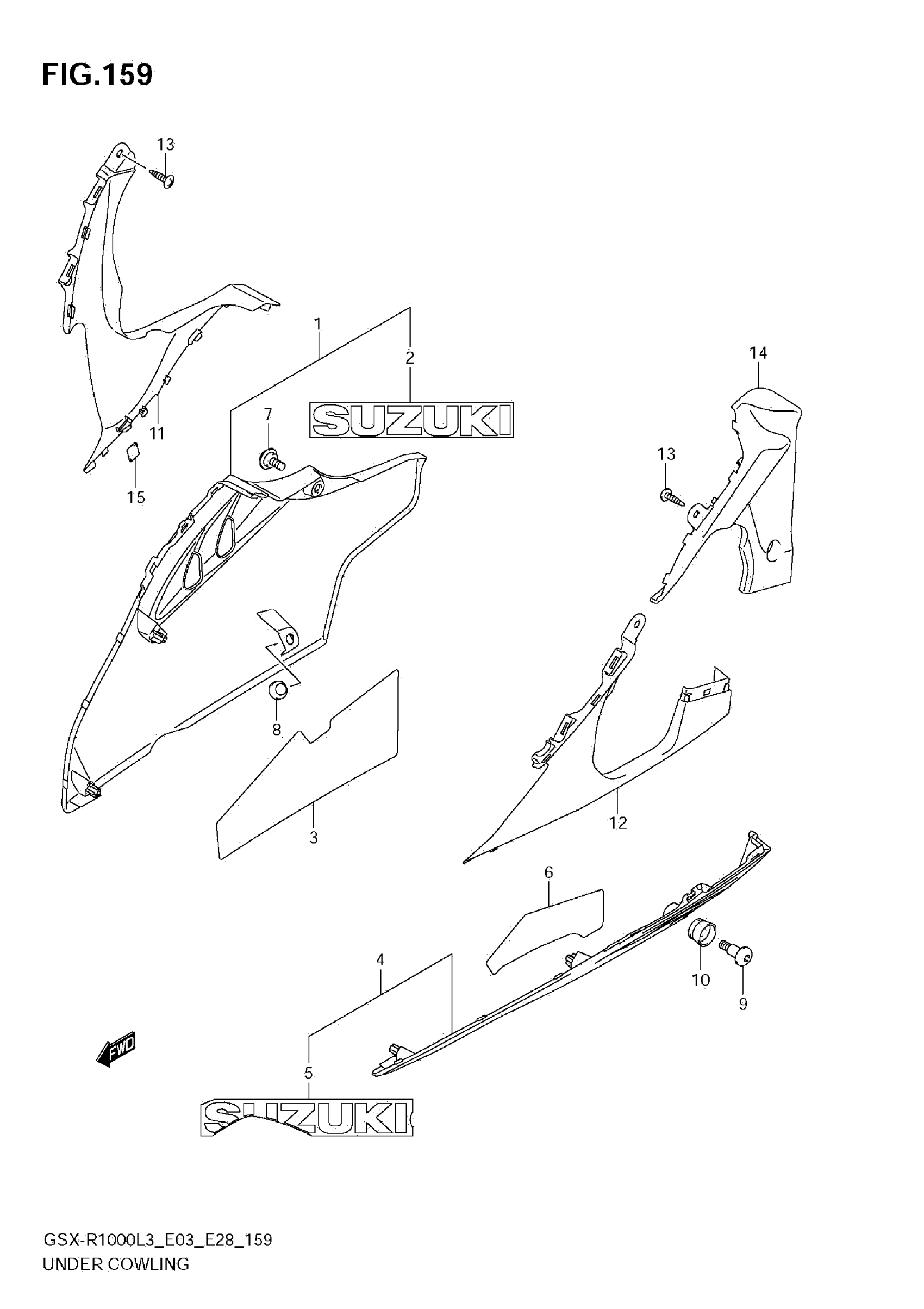

Suzuki GSX-R1000L3 (2013) UNDER COWLING (GSX-R1000ZL3 E28) Diagram

#

Description
Price

1

COWL, UNDER RH (WHITE)

94470-47H00-YWW

Unavailable

2

EMBLEM, "SUZUKI" (BLACK)

68181-33C20-019

$24.48

3

SHIELD, HEAT FRONT RH

94476-47H00

$14.88

4

COWL, UNDER LH (WHITE)

94480-47H00-YWW

$369.83

5

EMBLEM, "SUZUKI" (BLACK)

68191-47H00-019

$40.55

6

SHIELD, HEAT LH

94486-47H00

$25.92

7

SCREW (5X13)

09139-05064

$2.56

8

CUSHION

09321-10018

$4.19

9

BOLT (6X20)

09139-06190

$3.77

10

CUSHION

94479-15H00

$4.22

11

COWL, SIDE LOWER RH

94474-47H00

$54.07

12

COWL, SIDE LOWER LH

94484-47H00

$53.08

13

SCREW

03541-0516A

$1.37

14

COVER, SIDE COWL LH

94482-47H00

$52.60

15

CUSHION (10X10X1)

63115-37H00

$3.42
