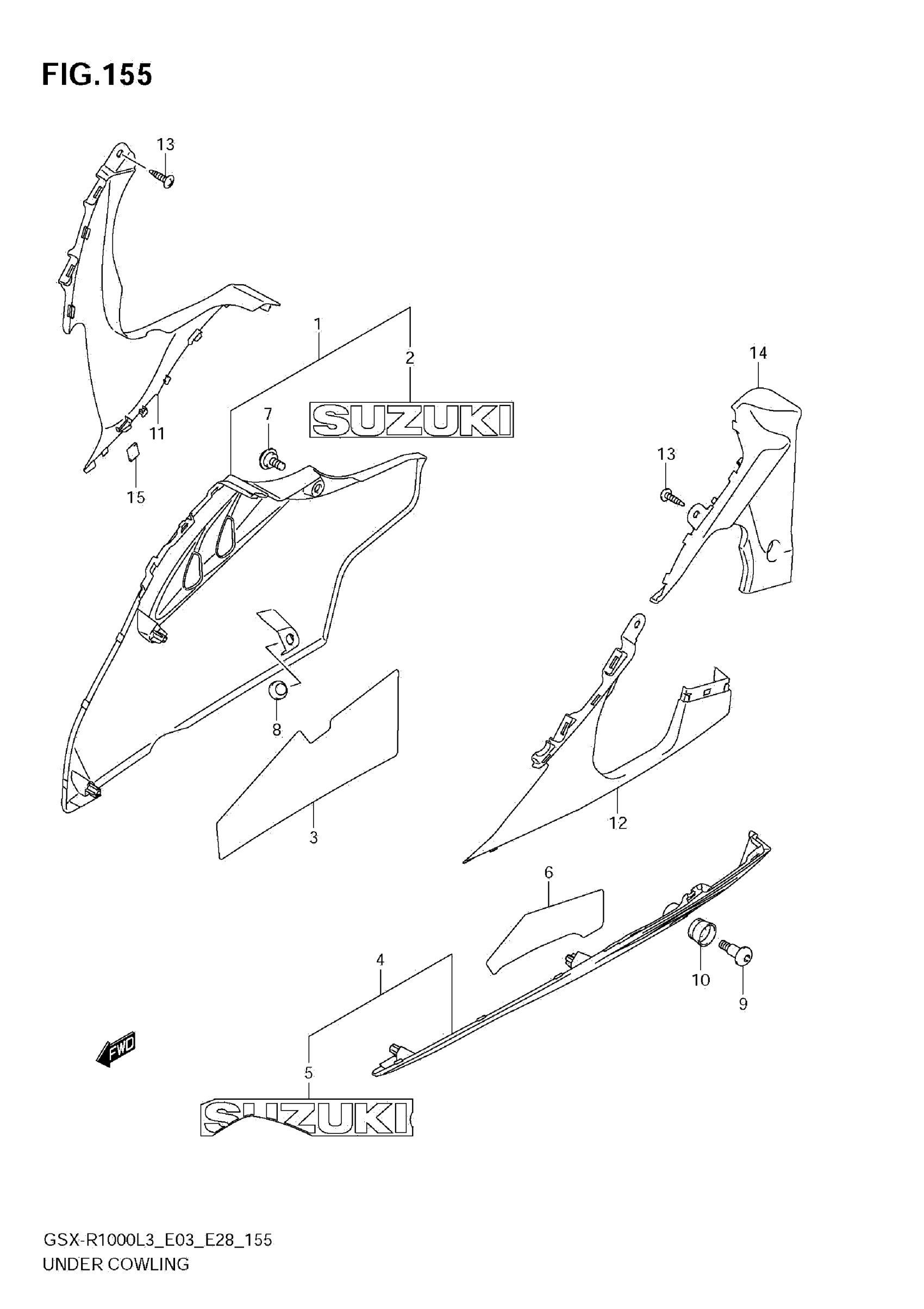

Suzuki GSX-R1000L3 (2013) UNDER COWLING (GSX-R1000L3 E03) Diagram

COWL, UNDER RH (WHITE) | FOR GLR

94470-47H00-YBD

$332.42

COWL, UNDER RH (BLACK) | FOR KGL

94470-47H00-46X

$332.47

EMBLEM, "SUZUKI" (BLACK)

68181-33C20-019

$26.75

SHIELD, HEAT FRONT RH

94476-47H00

$13.18

COWL, UNDER LH (WHITE) | FOR GLR

94480-47H00-YBD

$332.42

COWL, UNDER LH (BLACK) | FOR KGL

94480-47H00-46X

$332.47

EMBLEM, "SUZUKI" (BLACK)

68191-47H00-019

$35.93

SHIELD, HEAT LH

94486-47H00

$22.97

SCREW (5X13)

09139-05064

$2.57

CUSHION

09321-10018

$5.45

BOLT (6X20)

09139-06190

$4.17

CUSHION

94479-15H00

$4.48

COWL, SIDE LOWER RH

94474-47H00

$47.92

COWL, SIDE LOWER LH

94484-47H00

$47.03

SCREW

03541-0516A

$1.49

COVER, SIDE COWL LH

94482-47H00

$46.60

CUSHION (10X10X1)

63115-37H00

$3.64
